Save The Board Database; Transducer Calibration - Addi-Data APCI-3701 Technical Description

APCI-3701

11.5.5 Save the board database

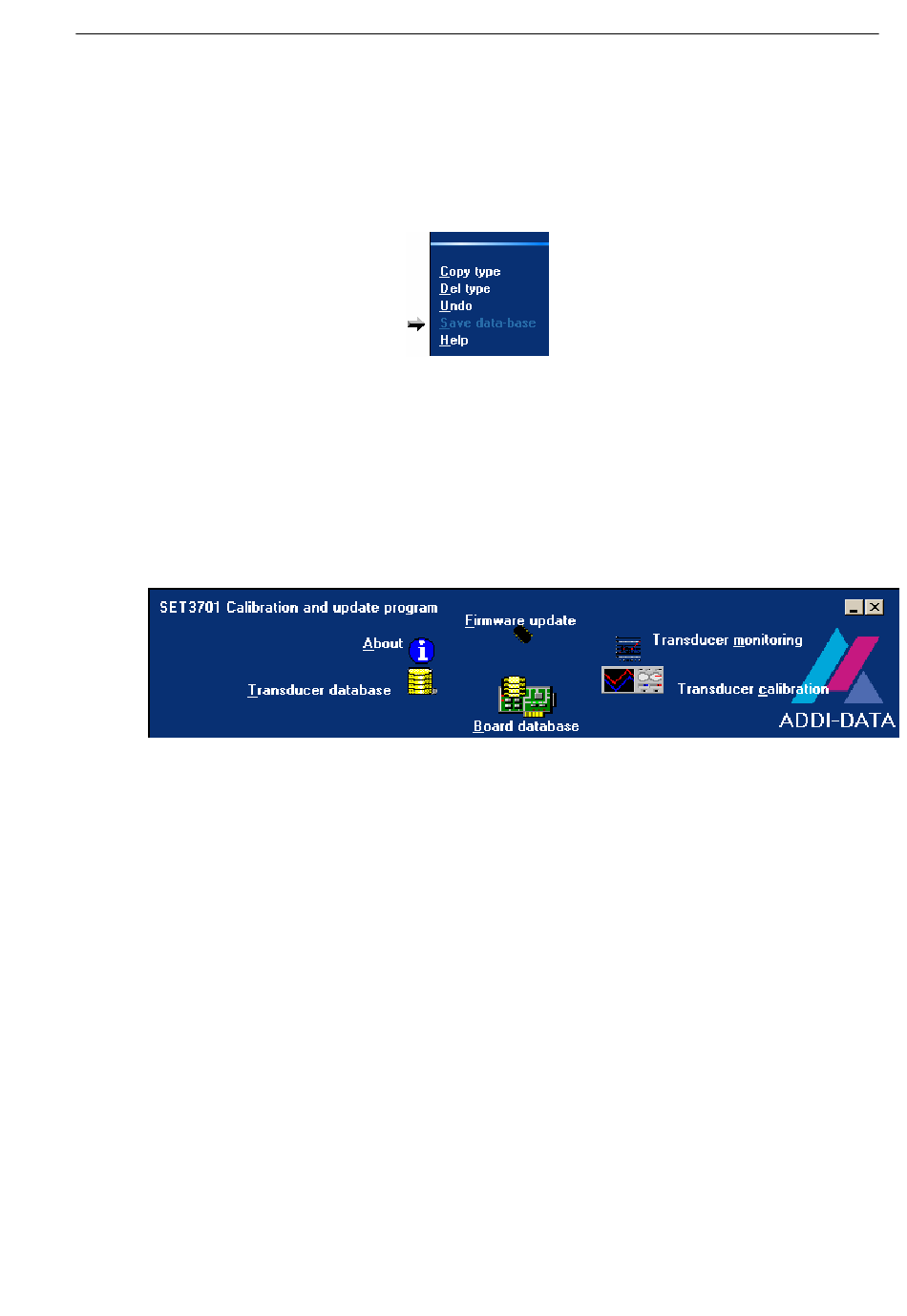

After having loaded all required transducer types, select "Save database" to load
this list on the selected APCI-3701.

11.6 Transducer calibration

♦ Double-click on the main menu icon to activate the window "Transducer
calibration"
The animated window appears.
♦ Double-click on the icon "Transducer calibration".
Now the window „Transducer calibration" is activated.
SET3701: Calibration and update tool
61
