SET3701: Calibration and update tool
Selected position for
calibration
Channel selection fort
he first 8 channel group
Channel selection for
the second 8 channel
group
For each used transducer type you have to calibrate the board. The "Transducer
type selection" lists all transducer types that are loaded on the APCI-3701.
"Calibration position" indicates the position that is used for calibration. This
position ranges from 0 to the maximum positive transducer position. Per default
the software selects the middle of this range.
Above "Group 1 channel selection" and "Group 2 channel selection" you can
select the channels to which the transducers are connected. If you have only 8
channels on the board, "Group 2 channel selection" does not appear.
62

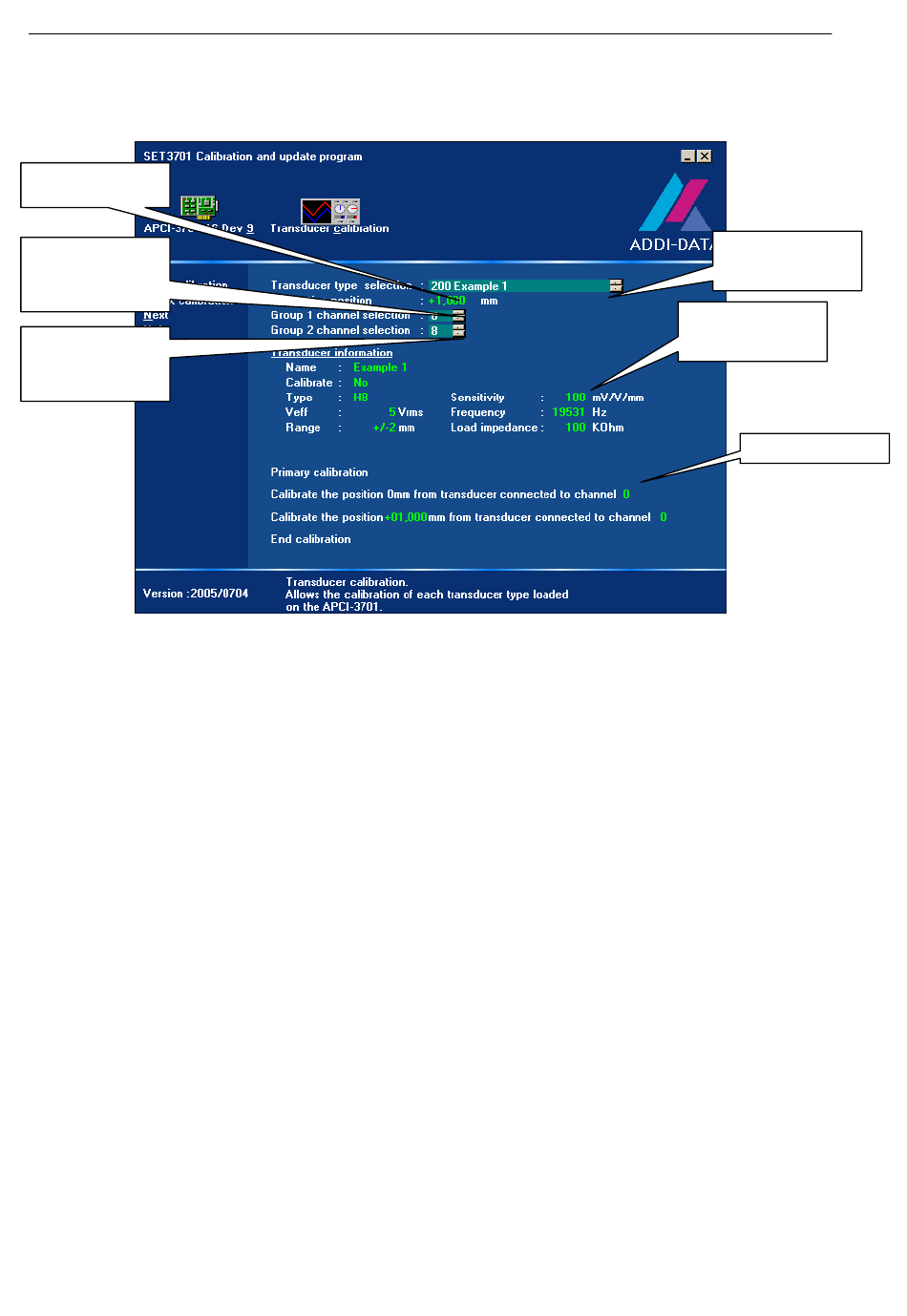

Fig. 11-7: „Transducer calibration" window
APCI-3701
Selected transducer type
to calibrate
Selected transducer
characteristics
Calibration steps
