APCI-3701
6.2

Connection boxes

The standard connection boxes have the following characteristics in common:
Connection of inductive transducers to the APCI-3701
-
Solid aluminium housing
-
Sealing caps for the transducer inputs
-
The standard connection boxes differ from each other only in type and number
of the connectable transducers:
PX3701-HB-8
Connection of up
to 8 HB
transducers
6.3

Connection examples

Connection: 1-channel version with a transducer

For the connection of the APCI-3701-1, please use either the cable ST3701-1-HB
or the cable ST3701-1-LVDT with round connector. Connect this cable with the
APCI-3701 and with the transducer. You do not require any additional terminal
panels.

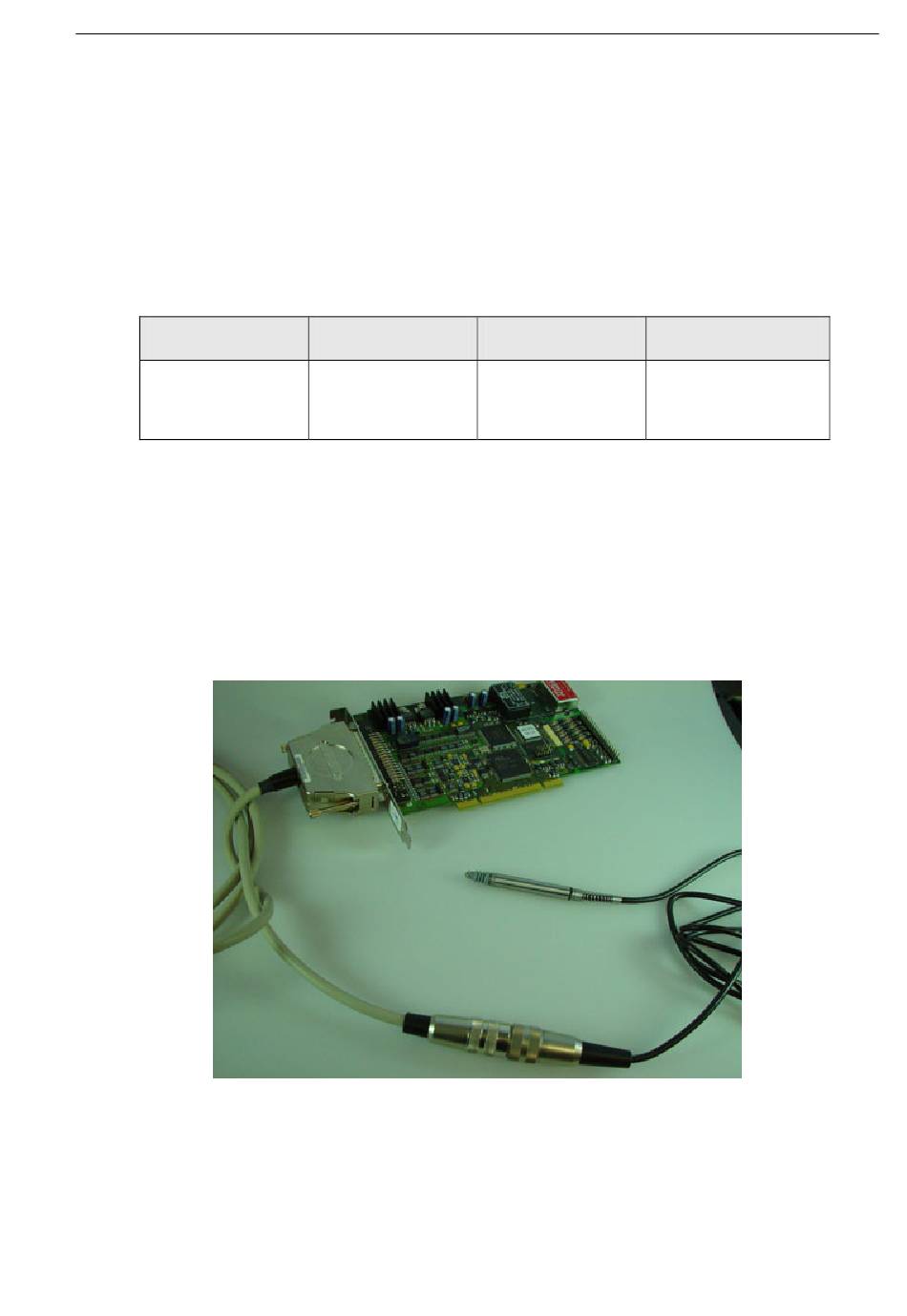

Fig. 6-1: Connection of a ST3701-1-x with board and transducer

♦ Connect the round connector of the ST3701-1-x with the transducer.
Note:
The standard delivery of the 1-channel board APCI-3701-1 includes one of the
cable types ST3701-1-HB or ST3701-1-LVDT, without extra charge. Both cable
types also can be ordered separately.
PX3701-HB-16
Connection of up Connection of up
to 16 HB to 8 LVDT
transducers transducers
PX3701-LVDT-8 PX3701-LVDT-16
Connection of up to
16 LVDT
transducers
Accessories
