APCI-3701
8.2

Connection of inductive transducers

Two connection boxes with 8 (PX371-8) or 16 (PX371-16) transducer female
connectors and the belonging connecting cable are available for connecting the
inductive displacement transducers to the board. The connection with the board is
made via a 50-pin SUB-D male connector.

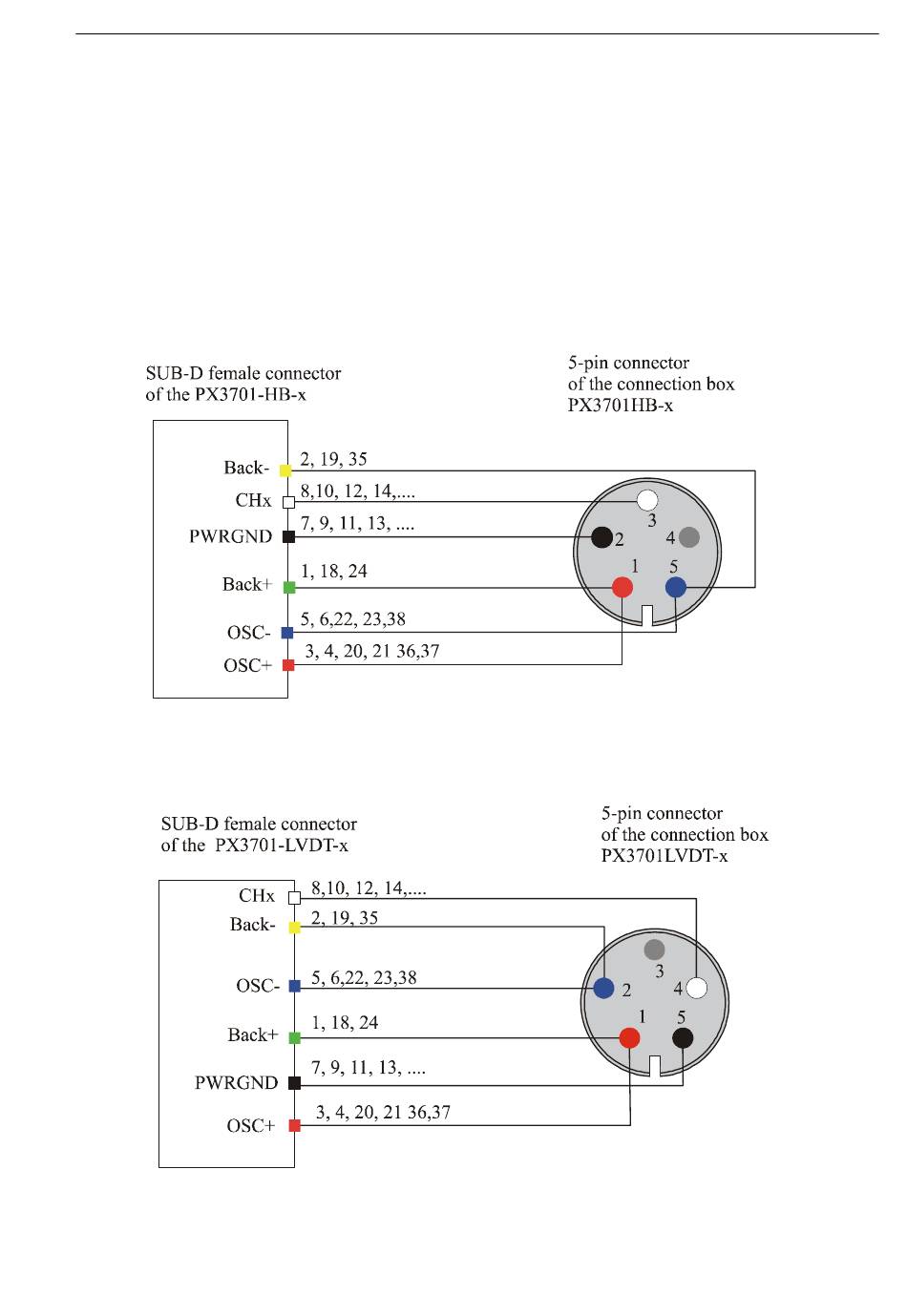

8.2.1 Connection of half-bridge transducers

8.2.2 Connection of LVDT transducers (Series-opposed)

Fig. 8-5: Connection of LVDT transducers (Series-opposed)

Fig. 8-4: Connection of half-bridge transducers

Connecting the peripheral
35
