SET3701: Calibration and update tool
♦ Double-click on the icon "Transducer database"
The animated menu disappears and the „Transducer database" window is
activated.
Addi-Data transducer
database
The APCI-3701 can be connected to different transducers. All transducer
information will be saved in two databases:
- Addi-Data GmbH transducer database
- User transducer database
Each database contains the following transducer information:
- Transducer name
- Transducer type (LVDT oder HB)
- Sensitivity (mV/v/mm)
- Veff (Vrms)
- Frequency (Hz)
- Range (+/- mm)
- Load impedance
Each of these characteristics is given by the transducer manufacturer. Select a
transducer. Then the characteristics will be shown in the lower field. The
databases do not indicate the transducers that are loaded on the board.

11.4.1 Menu transducer database

54

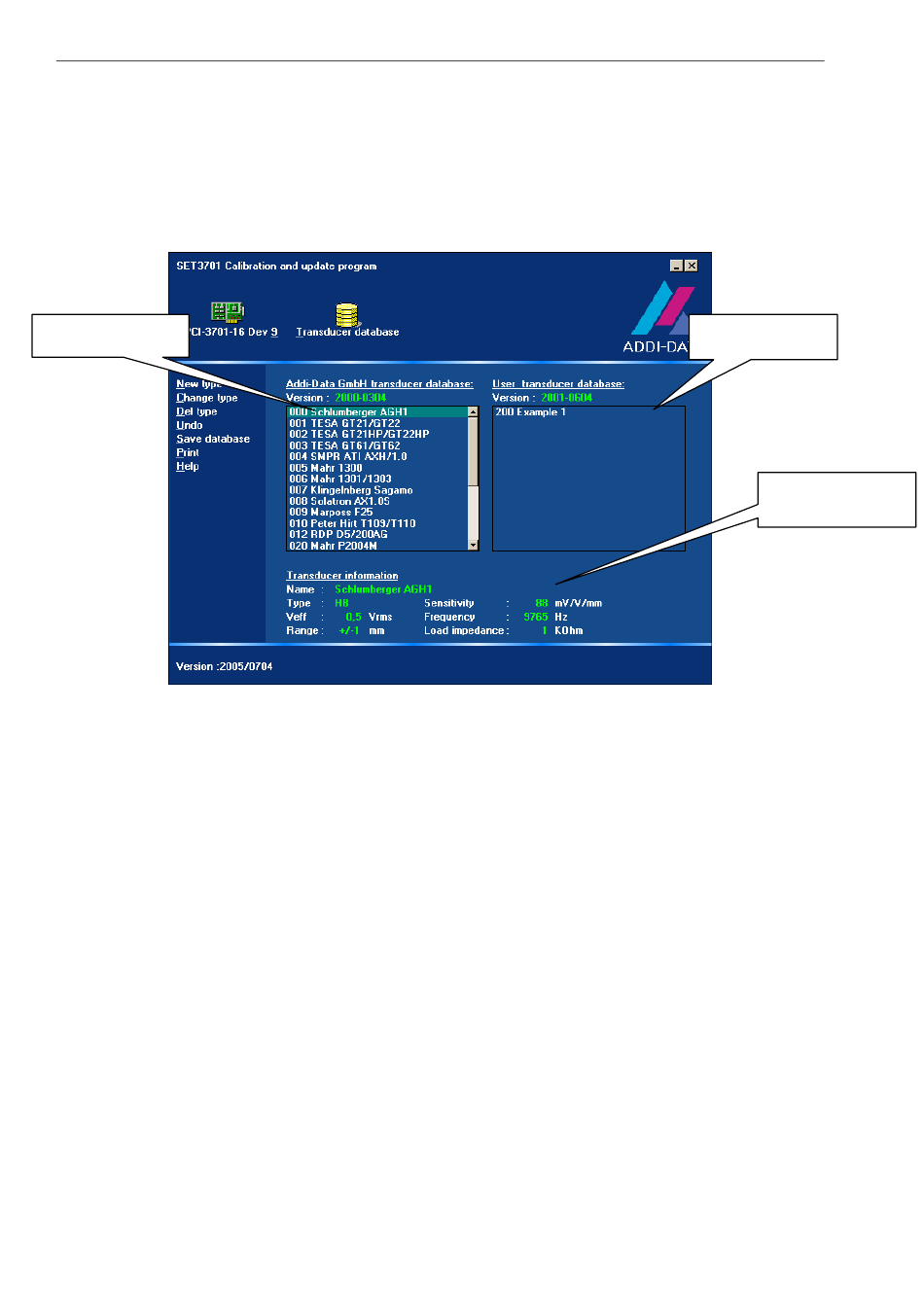

Fig. 11-1: Window „Transducer database"

Fig. 11-2: Menu transducer database

APCI-3701
User transducer database
Selected transducer
characteristics
