Addi-Data APCI-3701 Technical Description page 67

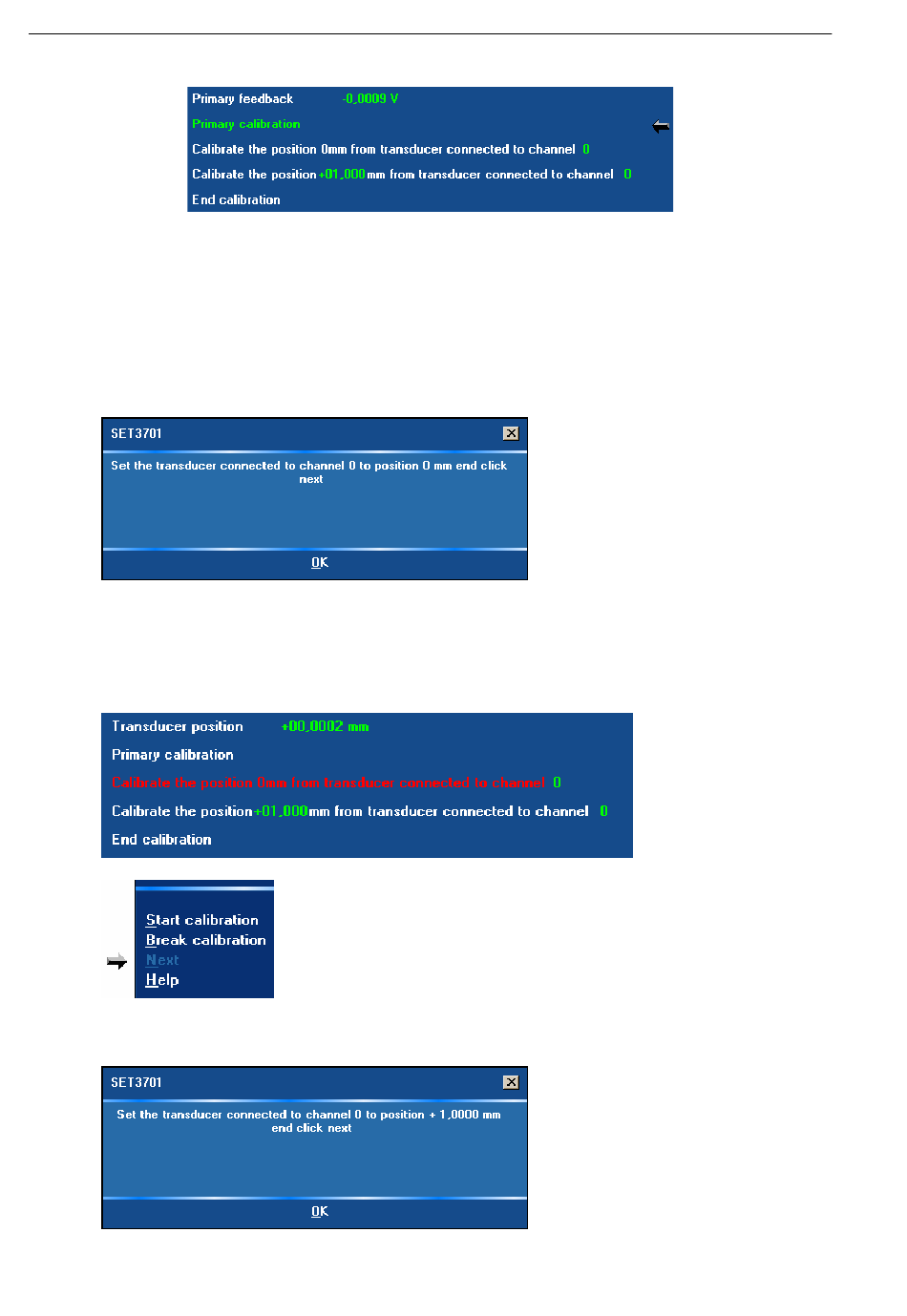

SET3701: Calibration and update tool APCI-3701
If this step takes longer or if an error message appears, this means that you have
not connected the PX 3701 to the APCI-3701. In this case, stop the calibration
with "Break calibration", connect the
PX 3701 and start again with the calibration.
After this, the mechanical 0 position is calibrated.
♦ Click on "OK"
♦ Set the transducer to the mechanical position and click on "Next"
The user selected calibration position is then calibrated.
64
