Connecting The Peripheral; Connector Pin Assignment; Fig. 7-1: 15-Pin Sub-D Male Connector (Analog Inputs); Fig. 7-2: Analog Input At The Px 901-Ag - Addi-Data APCI-3003 Technical Description

Analog input board, optically isolated
Hide thumbs Also See for APCI-3003:
Table of Contents

Advertisement

APCI-3003
7

CONNECTING THE PERIPHERAL

7.1

Connector pin assignment

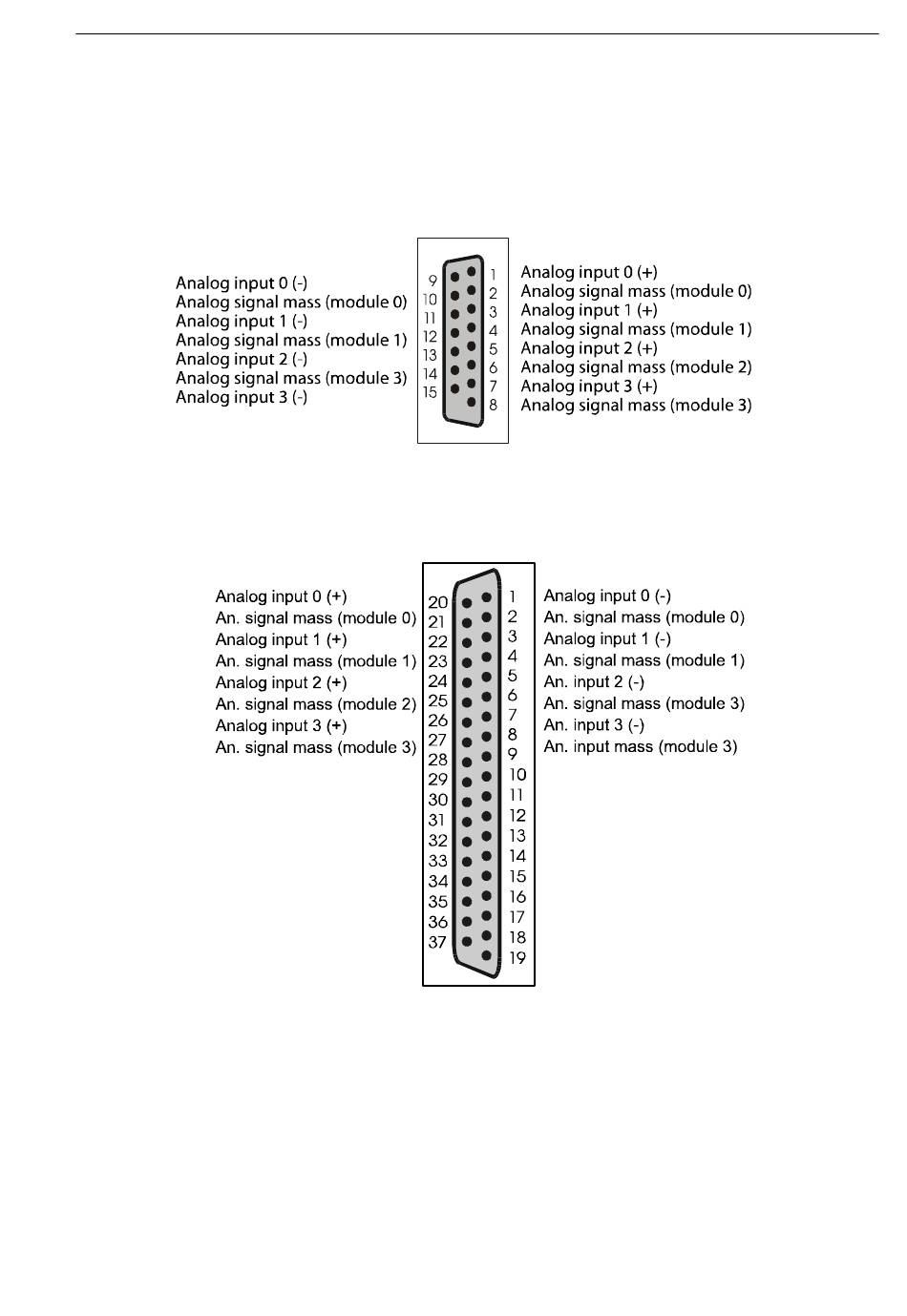

Fig. 7-1: 15-pin SUB-D male connector (analog inputs)

Fig. 7-2: Analog input at the PX 901-AG

Connecting the peripheral
25
