Connecting the peripheral
NC: not connected

8.1.2 40-pin male connector ST3

i
IMPORTANT!
Plug the FB3702 on the connector with the red cable lead on
the side of the pin 1.
34

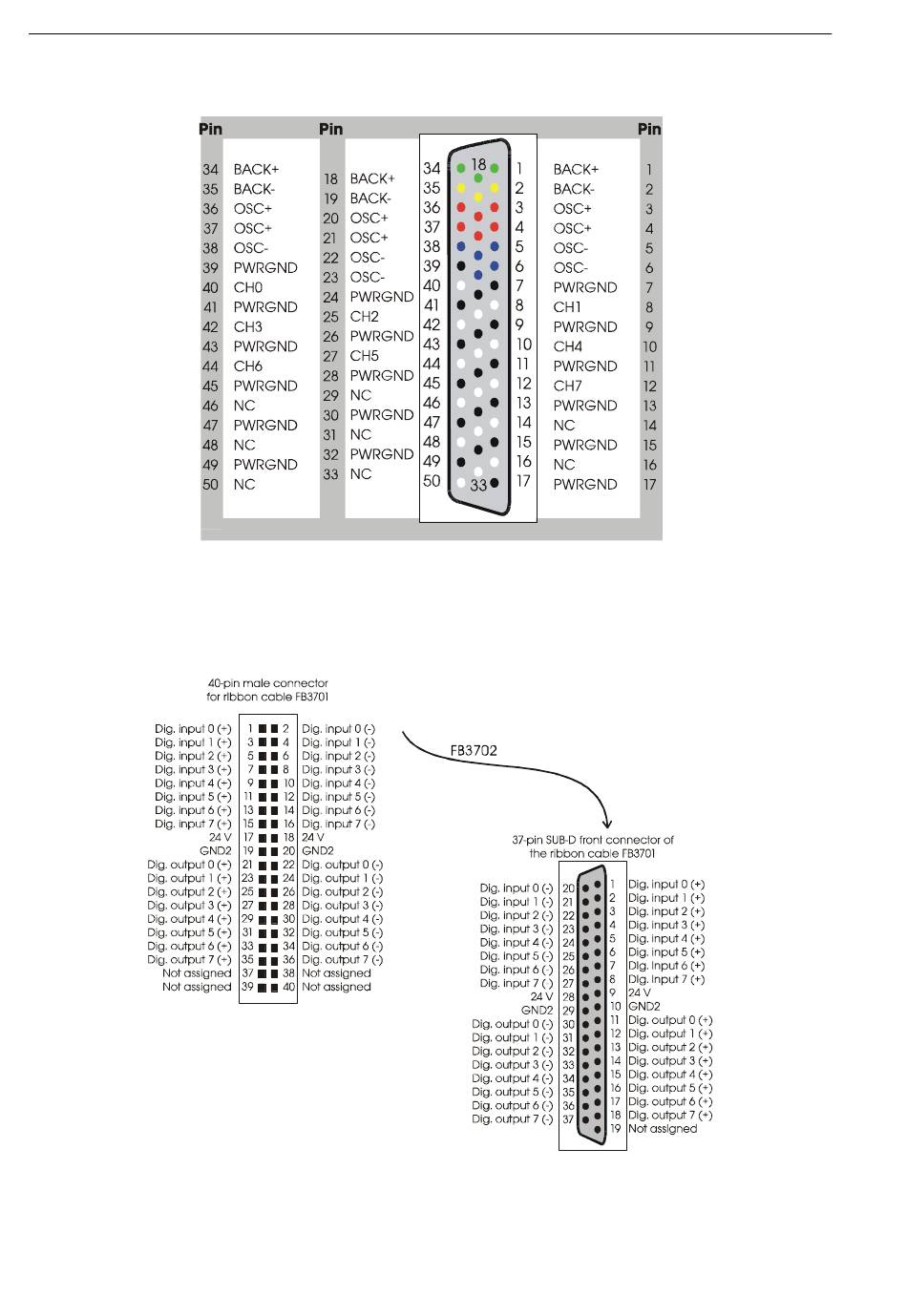

Fig. 8-2: Pin assignment: APCI-3701-8

Fig. 8-3: Pin assignment: 40-pin connector to
37-pin SUB-D bracket
APCI-3701
