SET3701: Calibration and update tool

11 SET3701: CALIBRATION AND UPDATE TOOL

11.1 Introduction

This program allows you to calibrate the APCI-3701 with any transducer type.
ADDI-DATA GmbH selected the most common used transducer types, but you
may define any other type. This software consists of two parts:
1.Transducer database management
2. Calibration part

11.2 Program start

After the installation (CD\APCI-3701\SET3701 DISK1)) start Set3701 via
"Start\Program\ Set3710\Set3701".
After the introduction screen opened, the main window will open. On the upper
left of the window you can see two icons.
♦ Double-click on one of the two icons, so that the corresponding menu opens
The icons have the following meaning:
The first icon represents the board and is used for selecting the board.
-
The second icon represents a database after the start. By double-clicking on
-
this icon, the main menu opens. It contains call program functionalities, e.g.
transducer database, board database, etc.

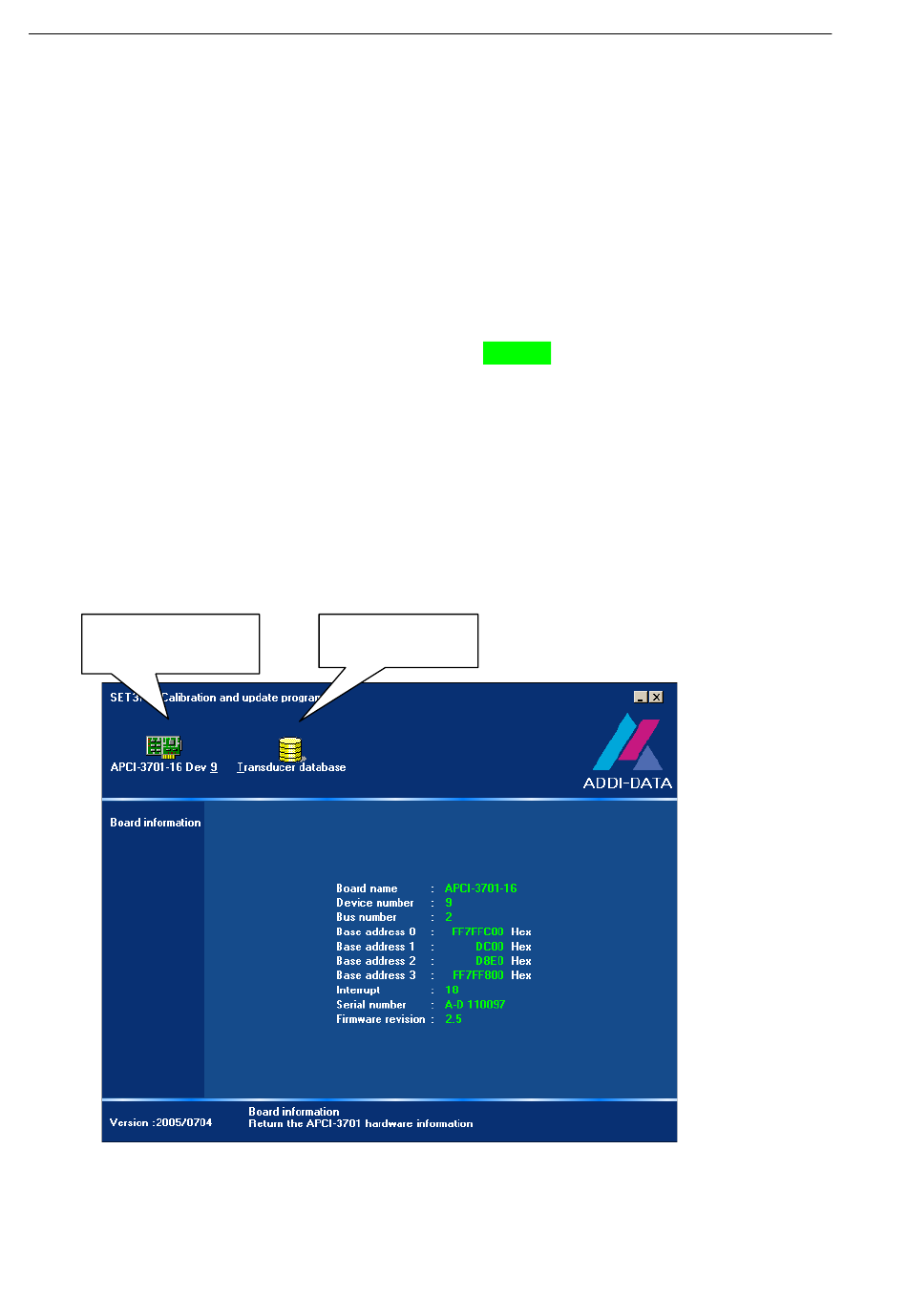

Board selection menu
52
Main menu with
database
APCI-3701
