SET3701: Calibration and update tool APCI-3701

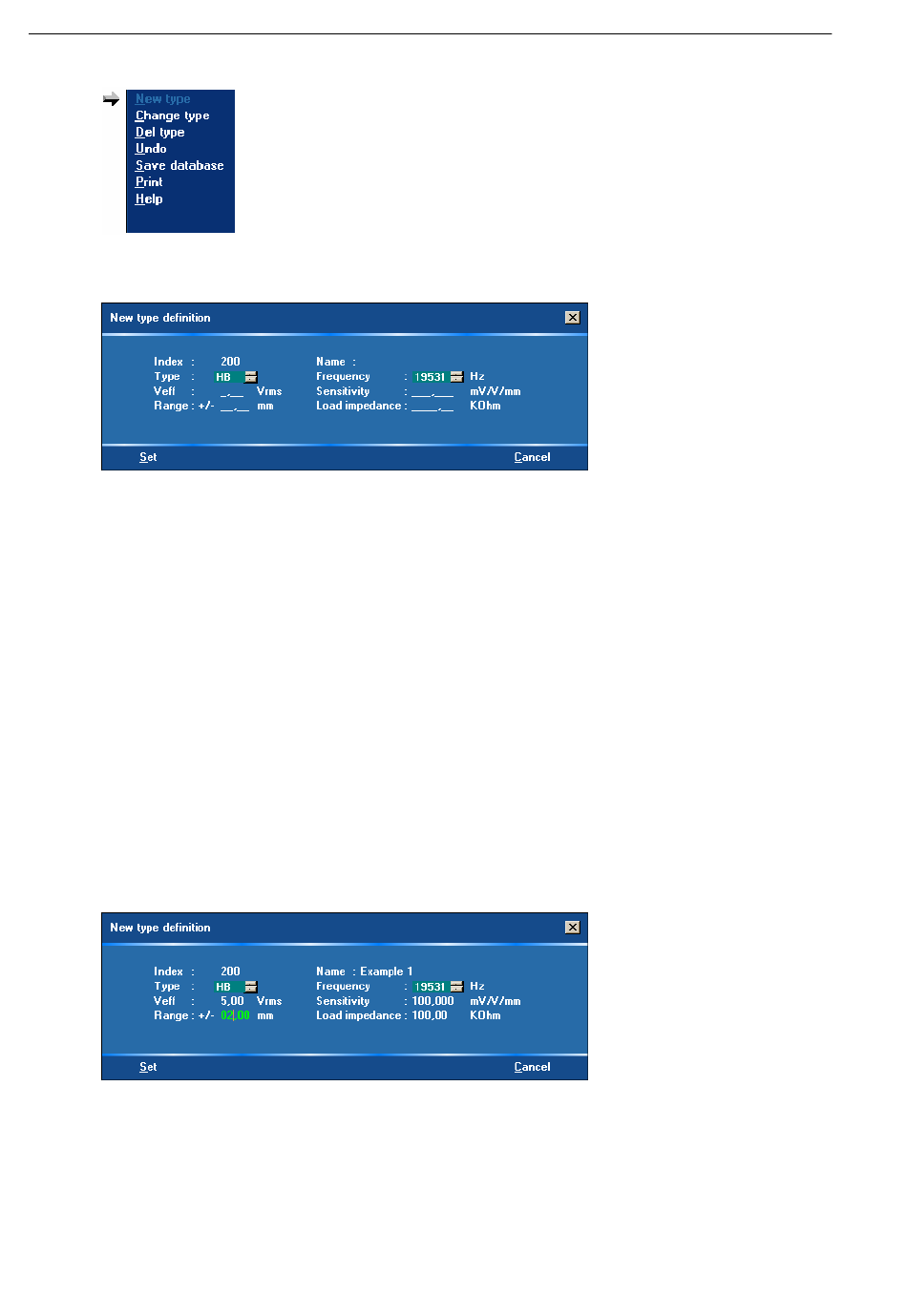

A new window appears.
You must complete the following fields:
- Name
- Type (LVDT orr HB)
- Sensitivity (mV/v/mm)
- Veff (Vrms)
- Frequency (Hz)
- Range (mm)
- Load impedance (KOhm)
The characteristics of the transducer shall be given by the transducer
manufacturer. Except the field „Name", all blanks („ „) must be replaced by „0".
„Index" is the index number of the transducer. The number is the same number as
the one passed in the function „b_ADDIDATA_InitTransducerChannel" of the
ADDIPACK driver (see parameter "w_TransducerIndex"). The value of the
"Index" can range between 200 and 255.

Fig. 11-3: Example: Definition of a new type

After having defined a new transducer type, it is displayed in the "User transducer
database"

Fig. 11-4: Display: New transducer type

56
