11.4.2 ADDI-DATA GmbH transducer database

Addi-Data selected already several transducers. This transducer list cannot be
deleted or modified by the user. The transducers are defined by the manufacturer
information The number before the transducer name is the transducer index
number. This number is the same number which the user must enter in the
function „b_ADDIDATA_InitTransducerChannel" of the ADDIPACK driver
(sse parameter: w_TransducerIndex). The version number above the list "Addi-
Data GmbH transducer database" indicates the last modification date (the first 4
figures: Month and year) and the revision number (last 4 figures).

11.4.3 User transducer database

By the first installation the database is empty. If you have not found a compatible
transducer in the list "Addi-Data GmbH transducers database", you shall define a
new transducer type. The new types will be saved in database file. The file name
for the standard board APCI-3701 is „User_SV.DB" and for the Knäbel version
of the APCI-3701 „User_KV.DB".
These files can be found in the SET3701 installation path "\DataBase". If you
delete or reinstalle the Set3701 application, these files will not be deleted.

11.4.4 New transducer type definition

The user has the possibility to create 56 transducer types. For creating a new type:
♦ Click on "New type" to create a new transducer type

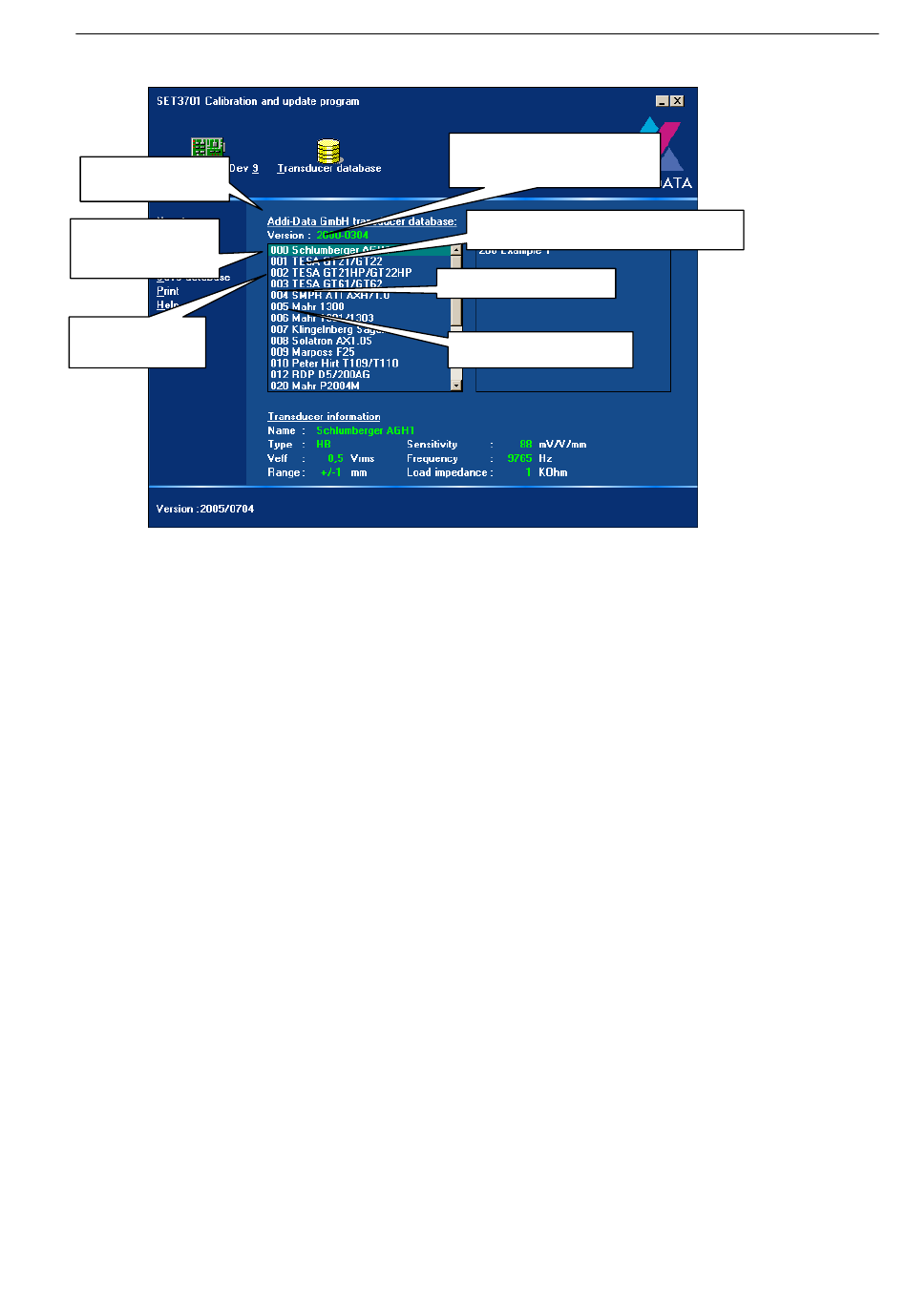

SET3701: Calibration and update tool
Change an user transducer type
definition
Undo the last operation
Print all databases
Transducer database help
