APCI-1032, APCI-1564 and APCI-2032
7

CONNECTING THE PERIPHERAL

7.1

Digital inputs

WARNING for the APCI-1564!
When all inputs are connected, the temperature of the printed
circuit card increases.
Make sure that the maximum supply voltage of 26 V is not exceeded. Please
consider the given limit values. (See 0 Digital inputs)

7.1.1 Connector pin assignment

Each module (8 digital inputs) is connected to a common ground line.
34

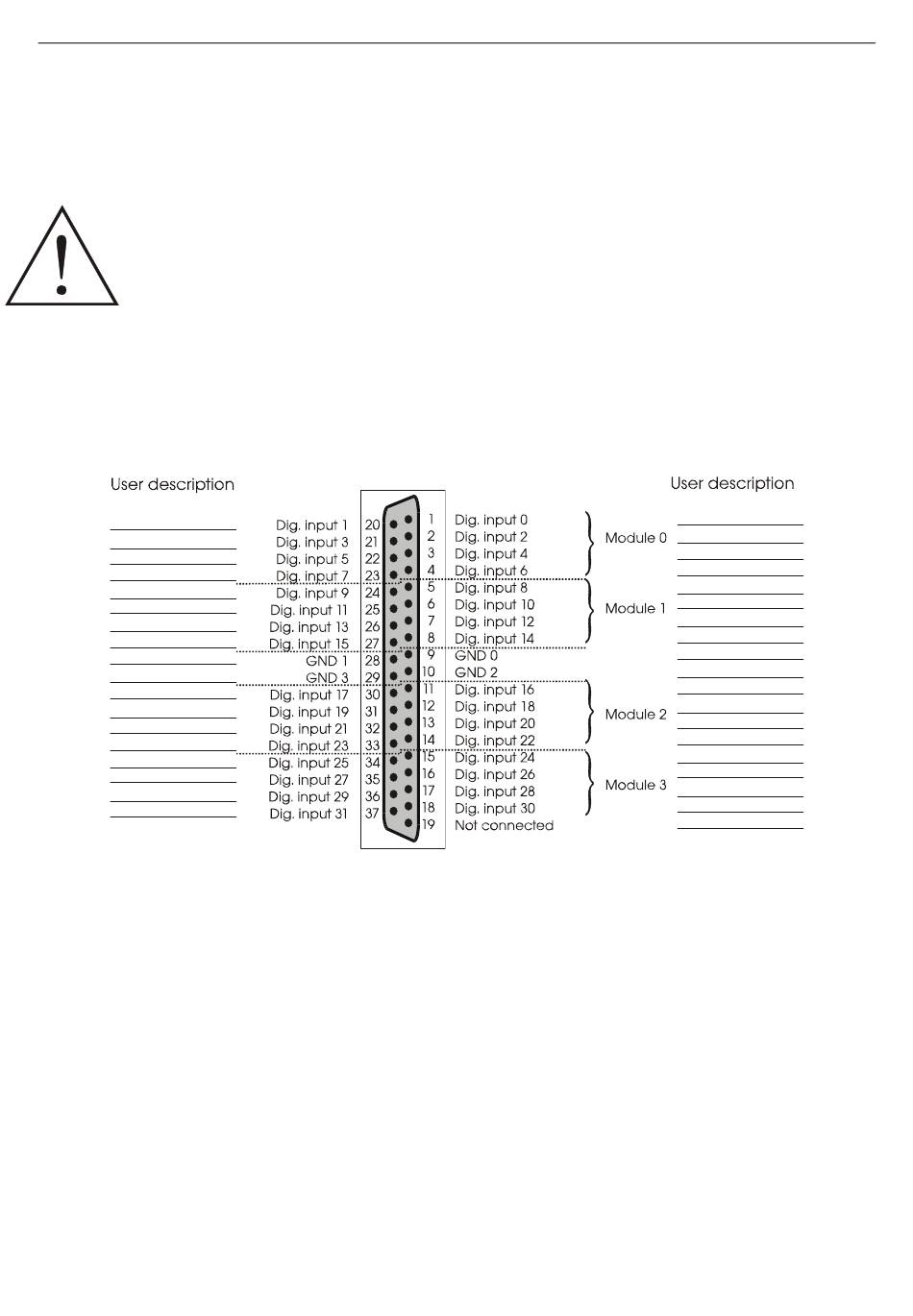

Fig. 7-1: 37-pin SUB-D connector (APCI-1032)

Connecting the peripheral
