1

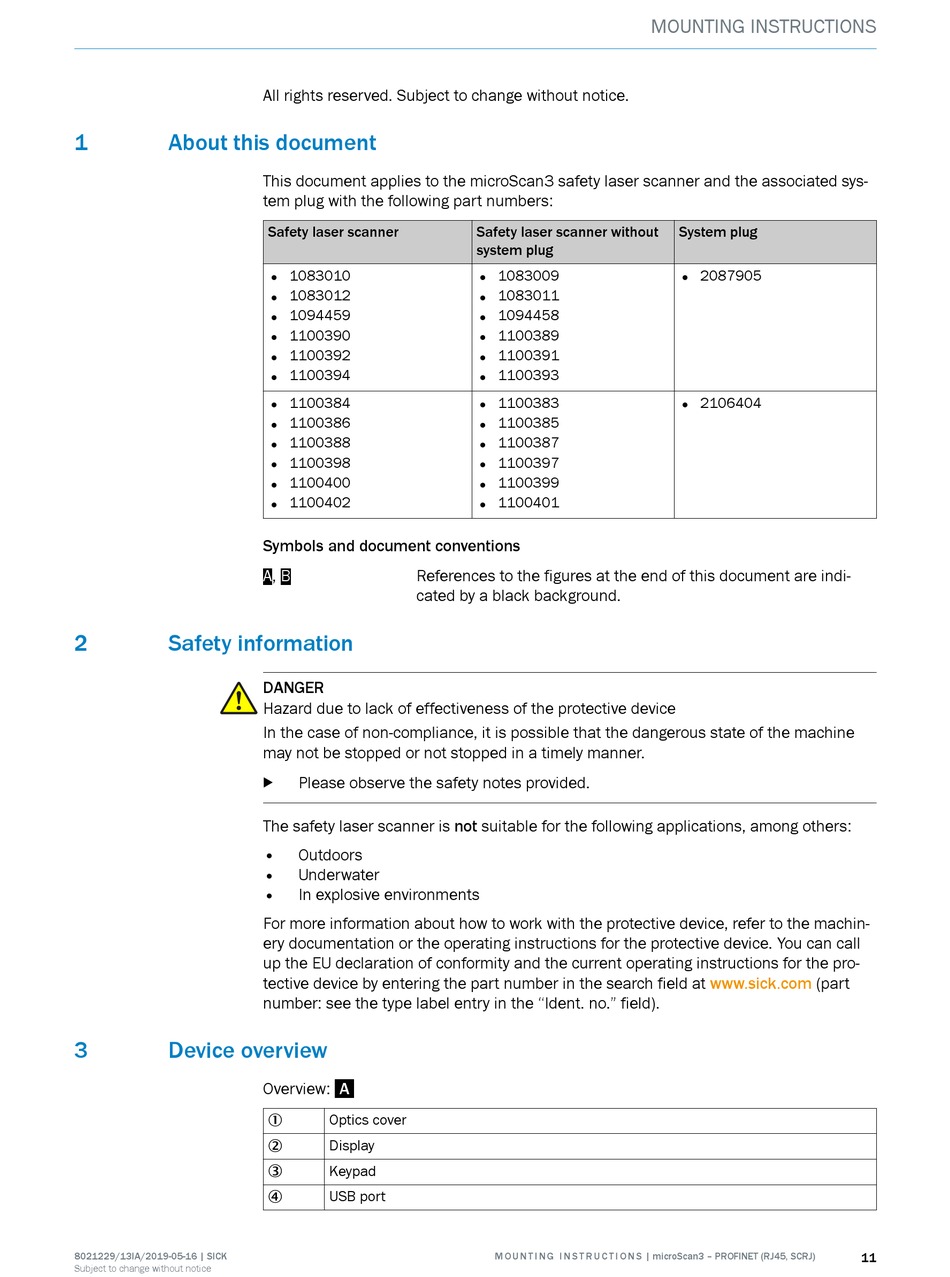

About this document

2

Safety information

3

Device overview

8021229/13IA/2019-05-16 | SICK
Subject to change without notice
All rights reserved. Subject to change without notice.
This document applies to the microScan3 safety laser scanner and the associated sys‐
tem plug with the following part numbers:
Safety laser scanner
• 1083010
• 1083012
• 1094459
• 1100390
• 1100392
• 1100394
•
1100384
• 1100386
• 1100388
• 1100398
• 1100400
• 1100402
Symbols and document conventions
A, B References to the figures at the end of this document are indi‐
cated by a black background.
DANGER
Hazard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
Please observe the safety notes provided.
b
The safety laser scanner is not suitable for the following applications, among others:
• Outdoors
• Underwater
• In explosive environments
For more information about how to work with the protective device, refer to the machin‐
ery documentation or the operating instructions for the protective device. You can call
up the EU declaration of conformity and the current operating instructions for the pro‐
tective device by entering the part number in the search field at
number: see the type label entry in the "Ident. no." field).
Overview: A
Optics cover
1
Display
2
Keypad
3
USB port
4
MOUNTING INSTRUCTIONS
Safety laser scanner without
system plug
• 1083009
• 1083011
• 1094458
• 1100389
• 1100391
• 1100393
•
1100383
• 1100385
• 1100387
• 1100397
• 1100399
• 1100401
M O U N T I N G I N S T R U C T I O N S | microScan3 – PROFINET (RJ45, SCRJ)
System plug
• 2087905
•
2106404
www.sick.com (part
11
