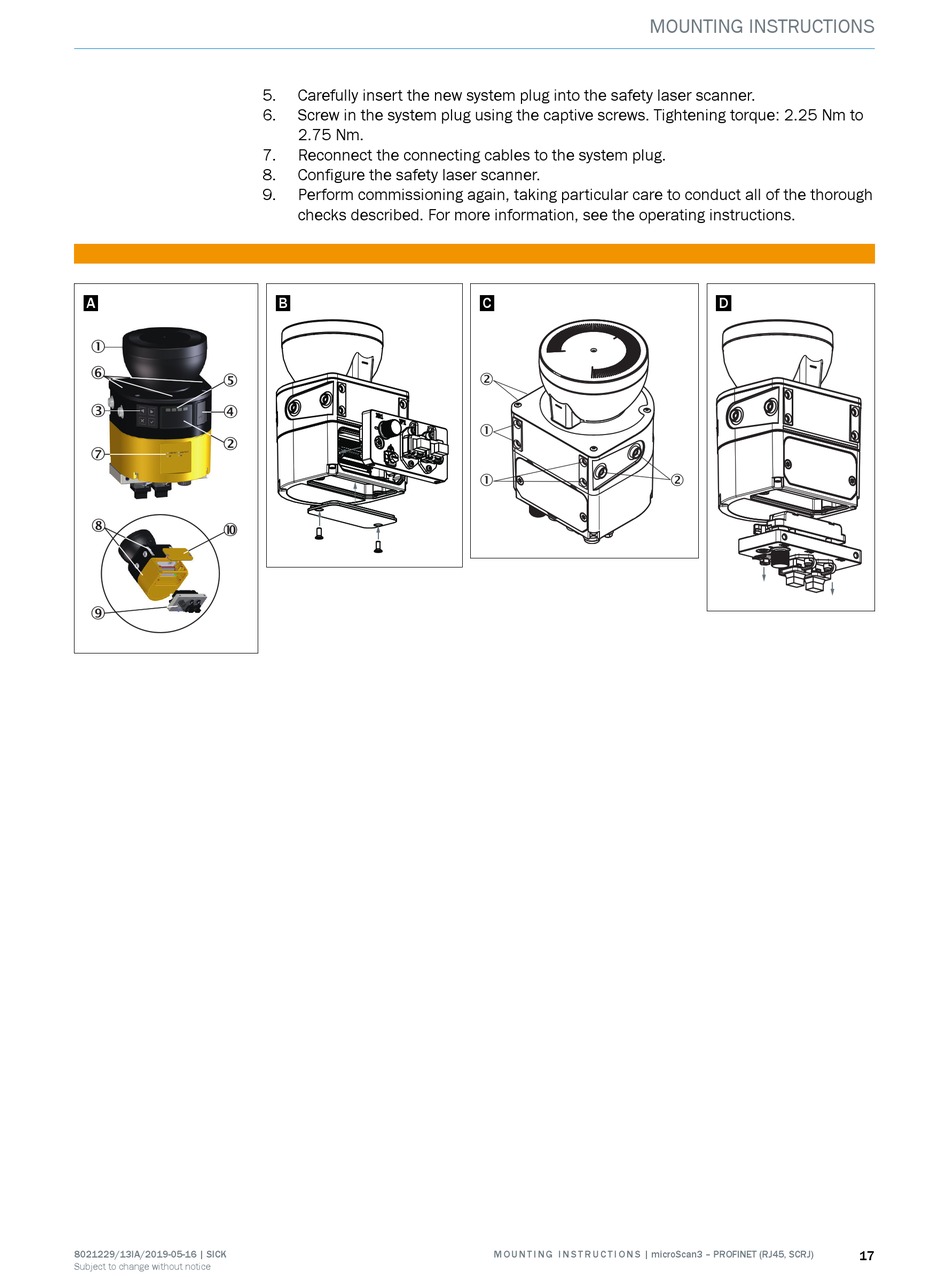

SICK microScan3 - PROFINET Mounting Instructions page 17

A
1
6
5
3
4
2
7
8
ß
9
8021229/13IA/2019-05-16 | SICK
Subject to change without notice
5. Carefully insert the new system plug into the safety laser scanner.
6. Screw in the system plug using the captive screws. Tightening torque: 2.25 Nm to
2.75 Nm.
7. Reconnect the connecting cables to the system plug.
8. Configure the safety laser scanner.
9. Perform commissioning again, taking particular care to conduct all of the thorough
checks described. For more information, see the operating instructions.
B
MOUNTING INSTRUCTIONS
C
2
1
1
M O U N T I N G I N S T R U C T I O N S | microScan3 – PROFINET (RJ45, SCRJ)
D
2
17
