6020 Series Calibration Bath
User's Guide
4.3
4.4
14
Power

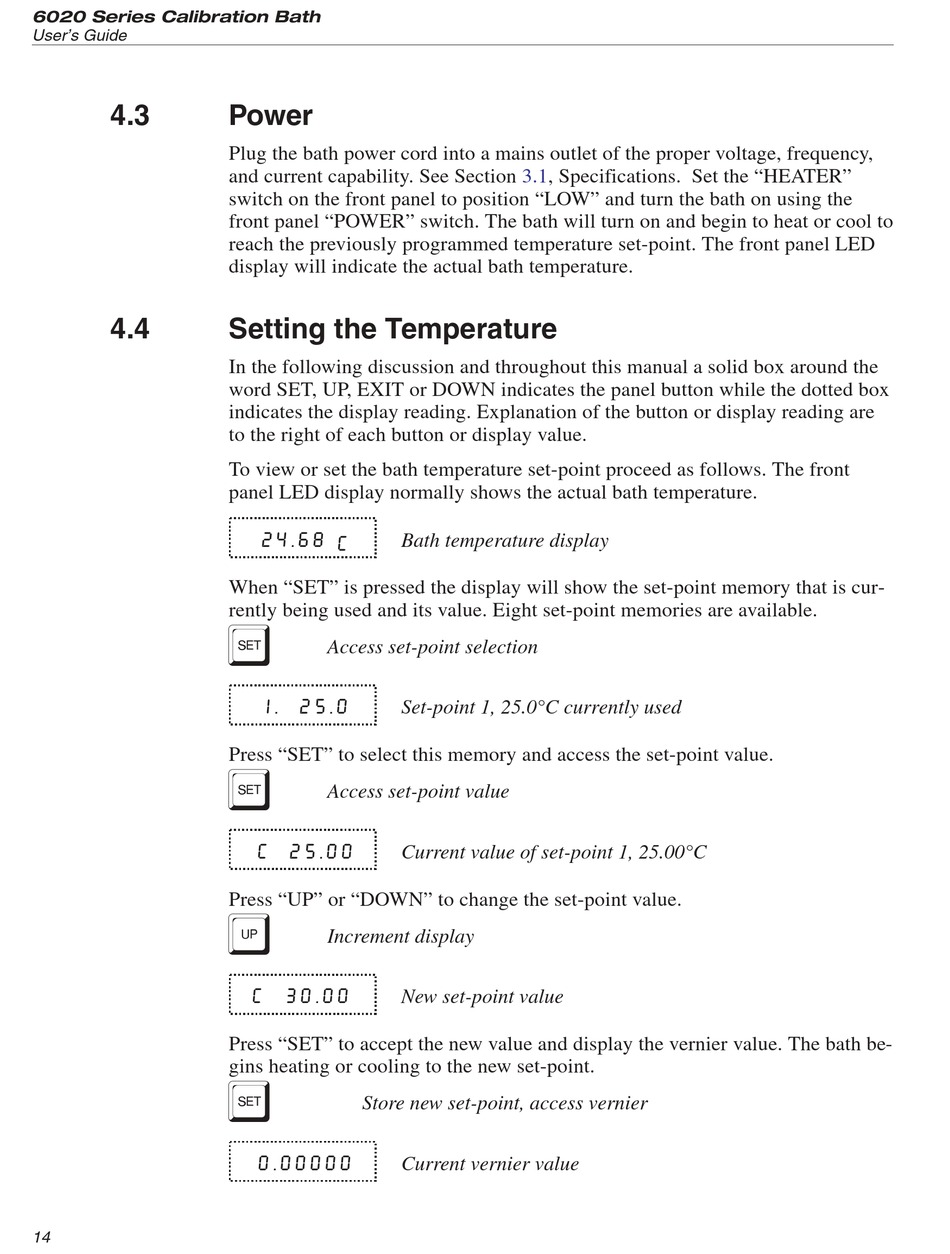

Plug the bath power cord into a mains outlet of the proper voltage, frequency,
and current capability. See Section 3.1, Specifications. Set the "HEATER"
switch on the front panel to position "LOW" and turn the bath on using the
front panel "POWER" switch. The bath will turn on and begin to heat or cool to
reach the previously programmed temperature set-point. The front panel LED
display will indicate the actual bath temperature.
Setting the Temperature
In the following discussion and throughout this manual a solid box around the
word SET, UP, EXIT or DOWN indicates the panel button while the dotted box
indicates the display reading. Explanation of the button or display reading are
to the right of each button or display value.
To view or set the bath temperature set-point proceed as follows. The front
panel LED display normally shows the actual bath temperature.
Bath temperature display
24.68 C
When "SET" is pressed the display will show the set-point memory that is cur-
rently being used and its value. Eight set-point memories are available.
S
Access set-point selection
Set-point 1, 25.0°C currently used
1. 25.0
Press "SET" to select this memory and access the set-point value.
S
Access set-point value
C 25.00
Current value of set-point 1, 25.00°C
Press "UP" or "DOWN" to change the set-point value.
U
Increment display
New set-point value
C 30.00
Press "SET" to accept the new value and display the vernier value. The bath be-
gins heating or cooling to the new set-point.
S
Store new set-point, access vernier
Current vernier value
0.00000
