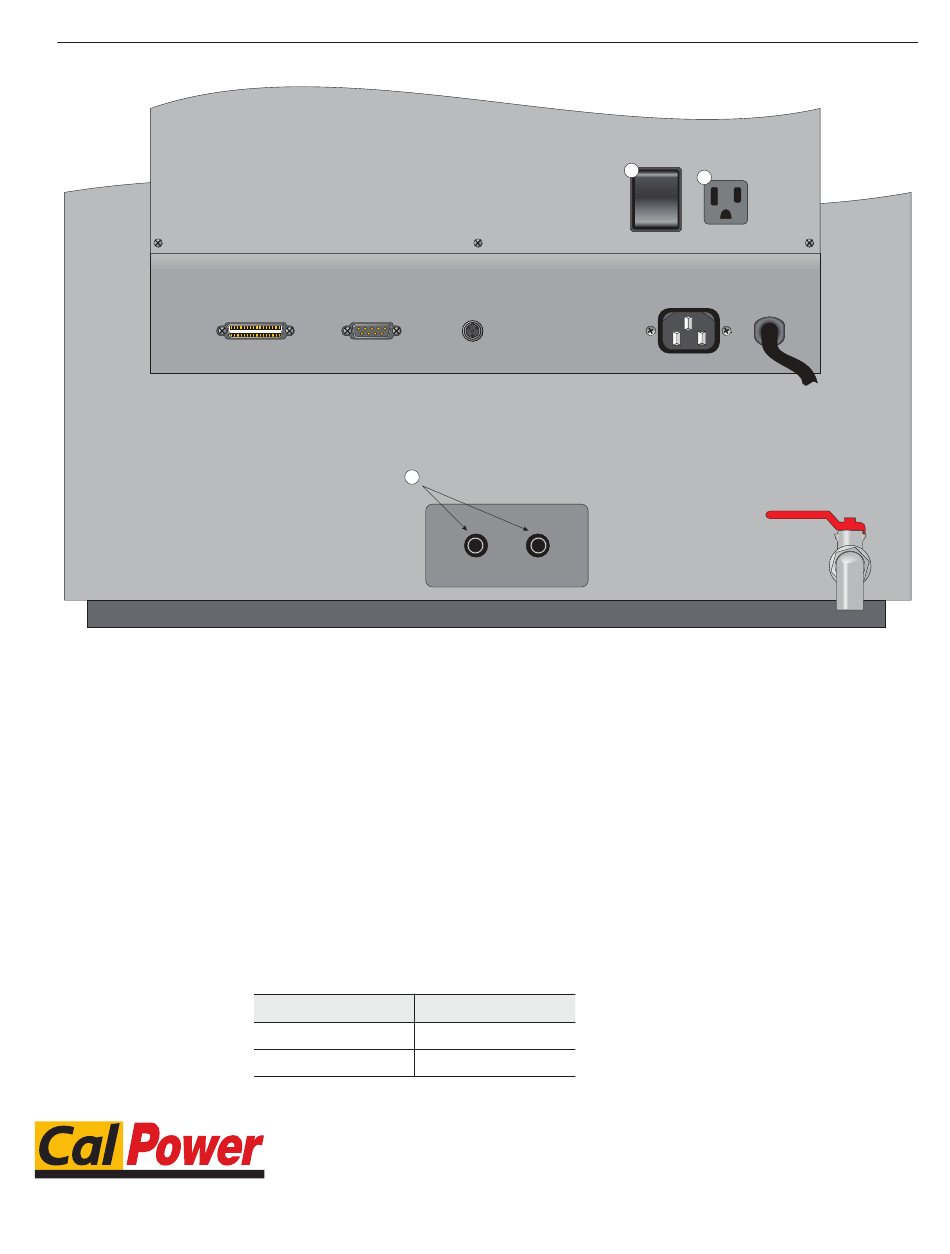

Figure 11 6021 Back panel

14.3

Via Acquanera, 29

22100 Como

tel. 031.526.566 (r.a.) fax 031.507.984

info@calpower.it

www.calpower.it

(Optional)

IEEE-488

RS-232

Chiller Controller Operation

Sections 8 (General Operation), 9 (Controller Operation), and 10 (Digital Com-

munications) of this manual explain the general operation, controller operation,

and digital communications for the 6021 bath. The digital interface is also ca-

pable of turning the auxiliary chiller on and off as shown in Table 6. The chiller

must be connected as described in the Installation portion of this Appendix and

the auxiliary switch must be turned to the Auto position. The bath heater

position must be in low.

Table 6 Auxiliary Chiller Control Functions

Chiller State

Off

PROBE

COOLING TUBES

aaaaaaaaaaaaaaaaaaaaaaaaa

14 Appendix – Model 6021

Chiller Controller Operation

STIRRER
