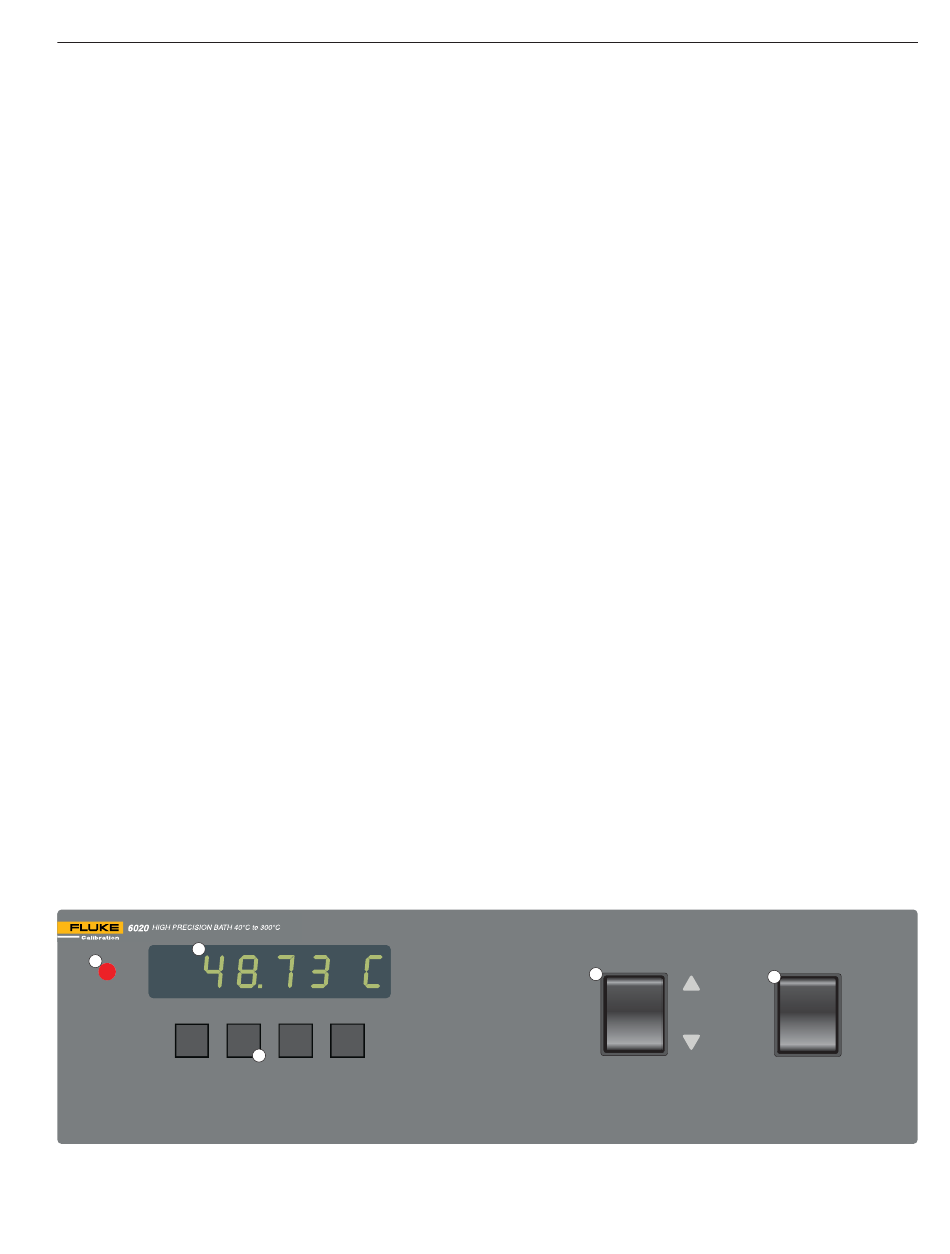

Figure 3 Front Panel Features

Parts and Controls

Refer to the Appendix specific to your bath model for additional information on
parts and controls.

Front Panel

The following controls and indicators are present on the controller front panel
(see Figure 3 below): (1) the digital LED display, (2) the control buttons, (3)
the bath on/off power switch, (4) the control indicator light, and (5) the heater
power switch.
(1) The digital display is an important part of the temperature controller be-
cause it not only displays set and actual temperatures but also various bath
functions, settings, and constants. The display shows temperatures in values ac-
cording to the selected scale units °C or °F.
(2) The control buttons (SET, DOWN, UP, and EXIT) are used to set the bath
temperature set-point, access and set other operating parameters, and access
and set bath calibration parameters.
A brief description of the functions of the buttons follows:
SET – Used to display the next parameter in a menu and to set parameters to
the displayed value.
DOWN – Used to decrement the displayed value of setable parameters.
UP – Used to increment the displayed value.
EXIT – Used to exit from a menu. When EXIT is pressed any changes made to
the displayed value will be ignored.
(3) The on/off switch controls power to the entire bath assembly. It powers the
stirring motor and the bath controller/heater circuit.
