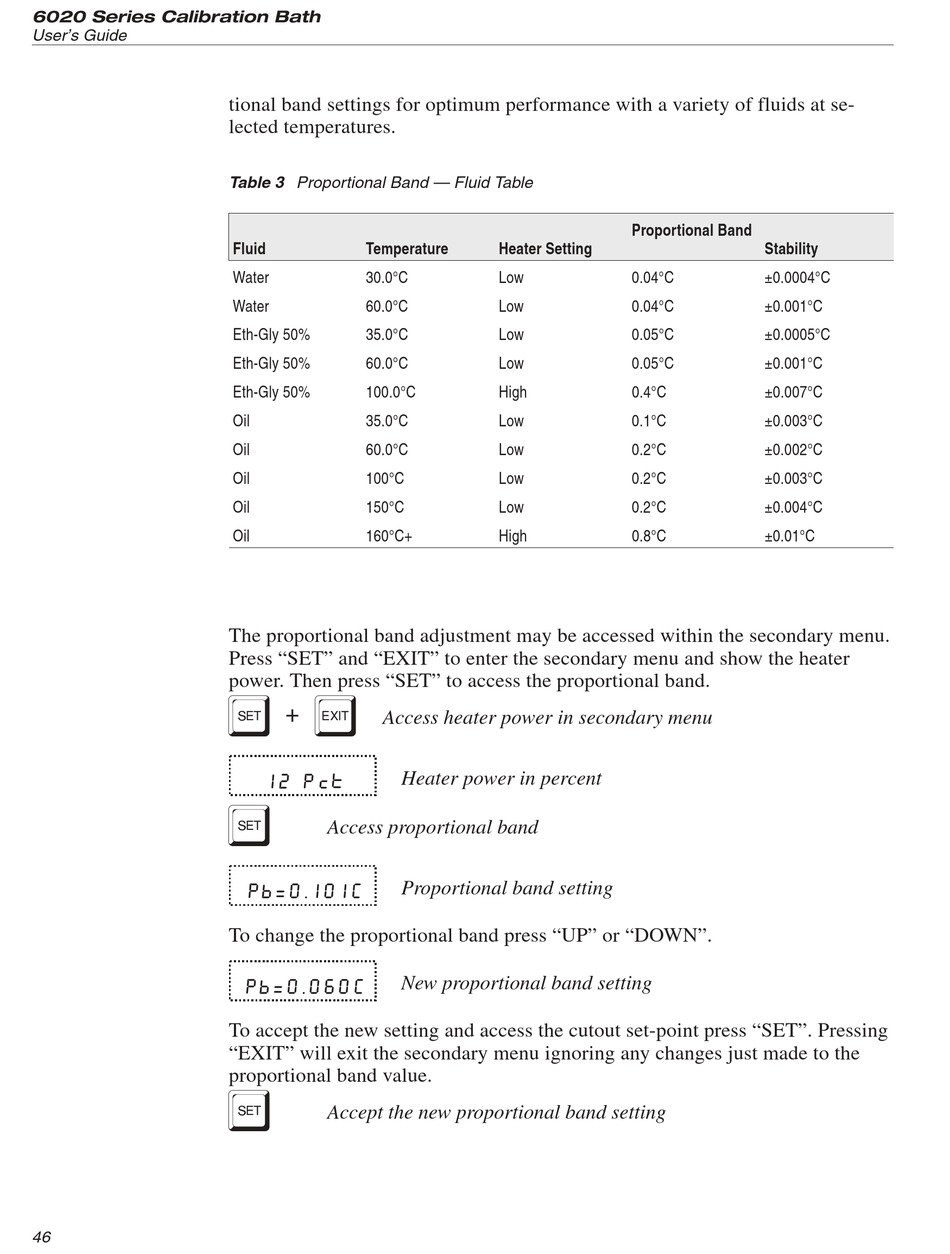

tional band settings for optimum performance with a variety of fluids at se-
lected temperatures.
Table 3 Proportional Band — Fluid Table
Fluid
Temperature
Water
30.0°C
Water
60.0°C
Eth-Gly 50%
35.0°C
Eth-Gly 50%
60.0°C
Eth-Gly 50%
100.0°C
Oil
35.0°C
Oil
60.0°C
Oil
100°C
Oil
150°C
Oil
160°C+
The proportional band adjustment may be accessed within the secondary menu.
Press "SET" and "EXIT" to enter the secondary menu and show the heater
power. Then press "SET" to access the proportional band.
S+E
Access heater power in secondary menu
Heater power in percent
12 Pct
S
Access proportional band
Proportional band setting
Pb=0.101C
To change the proportional band press "UP" or "DOWN".
New proportional band setting
Pb=0.060C
To accept the new setting and access the cutout set-point press "SET". Pressing
"EXIT" will exit the secondary menu ignoring any changes just made to the
proportional band value.
S
Accept the new proportional band setting
Proportional Band
Heater Setting
Low
0.04°C
Low
0.04°C
Low
0.05°C
Low
0.05°C
High
0.4°C
Low
0.1°C
Low
0.2°C
Low
0.2°C
Low
0.2°C
High
0.8°C
Stability
±0.0004°C
±0.001°C
±0.0005°C
±0.001°C
±0.007°C
±0.003°C
±0.002°C
±0.003°C
±0.004°C
±0.01°C
