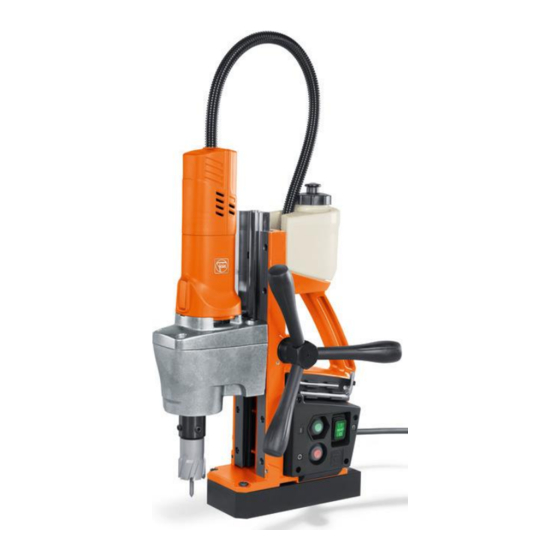

Metal Core Drilling
Repair instructions
Applies to:
KBE 35 (A), KBE 35 (B), KBE 35 (C)

Advertisement

Table of Contents
loading

Related Manuals for Fein KBE 35 (A)

Summary of Contents for Fein KBE 35 (A)

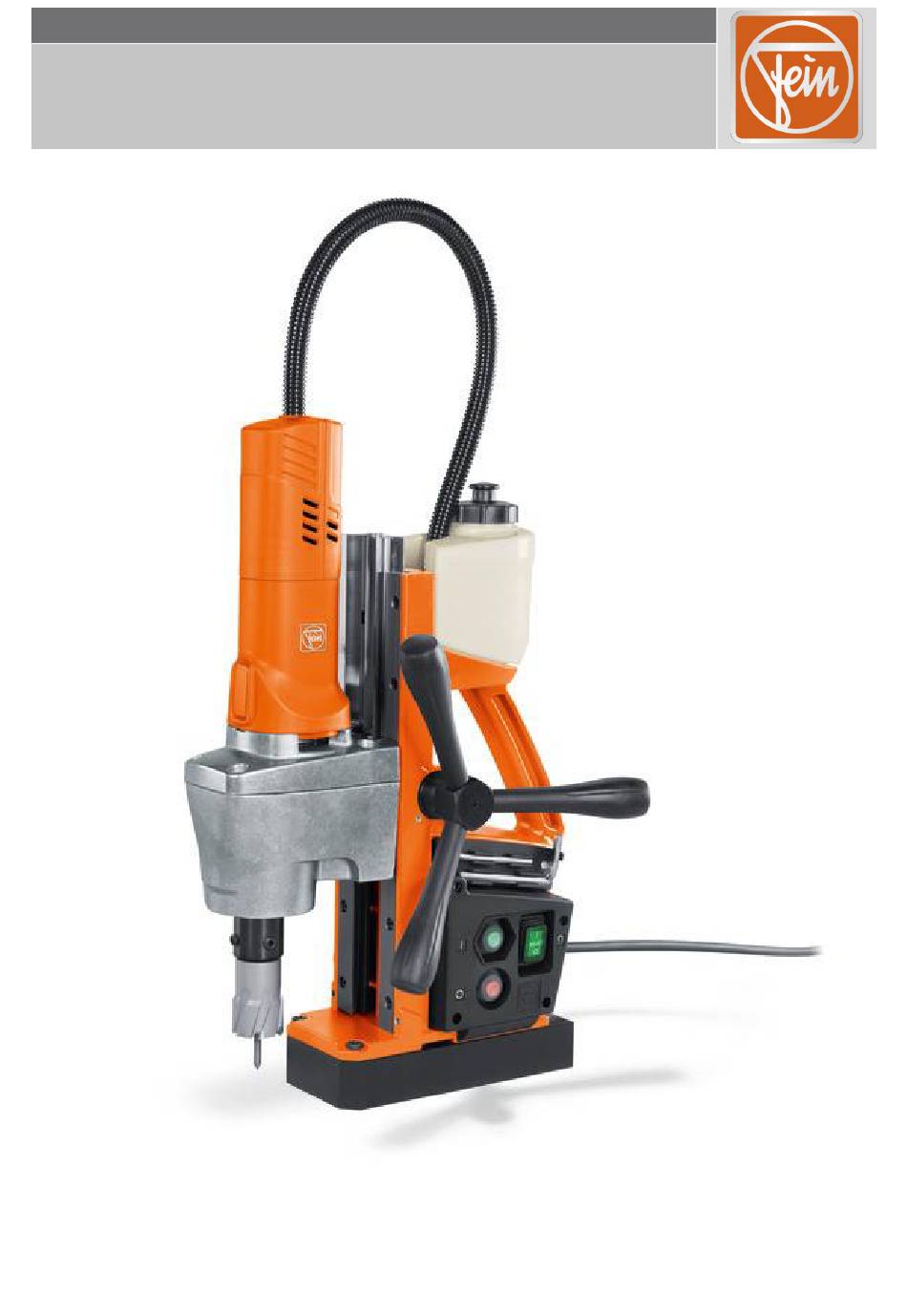

  • Page 1 Metal Core Drilling Repair instructions Applies to: KBE 35 (A), KBE 35 (B), KBE 35 (C)

  • Page 2: Table Of Contents

    Removing the magnetic foot ....................33 8.4.6 Removing the magnetic foot ....................34 C-SC_CSSM Version 1.0 01.04.2019 Page 2 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 3 Positioning the container ......................74 10 Inspection following repairs ......................75 C-SC_CSSM Version 1.0 01.04.2019 Page 3 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 4: Models Described

    KBE 35 (C) 7 270 80 ..C-SC_CSSM Version 1.0 01.04.2019 Page 4 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 5: Technical Data

    Up-to-date test data for all devices can be found in the FEIN electronic information system. Special tools, lubricants and auxiliary substances The special tools catalogue and the lubricants and container sizes available from FEIN can be found in the FEIN electronic information system.

  • Page 6: Symbols Used

    Part of the navigation interface. C-SC_CSSM Version 1.0 01.04.2019 Page 6 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 7: Notes And Requirements

    C. & E. Fein GmbH assumes no responsibility for the completeness, relevance, quality or correctness of the information provided. Liability claims against C. & E. Fein GmbH that relate to material or immaterial damage caused by the use or failure to use the information provided or by the use of incorrect or incomplete information are excluded.

  • Page 8: Safety Instructions

    Measure that must be taken in order to avoid this danger. C-SC_CSSM Version 1.0 01.04.2019 Page 8 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 9 NFORMATION C-SC_CSSM Version 1.0 01.04.2019 Page 9 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 10: Tools, Lubricants And Auxiliary Substances Required

    42 mm outer diameter Torque wrench with hexagon socket 2.5 mm fixture C-SC_CSSM Version 1.0 01.04.2019 Page 10 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 11: Special Tools

    04013203000 130 g Gearbox Grease 04012803000 Guide, gear rack C-SC_CSSM Version 1.0 01.04.2019 Page 11 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 12: Test And Diagnostics Options

    Test and diagnostics options Test and diagnostics options Not currently available. C-SC_CSSM Version 1.0 01.04.2019 Page 12 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 13: Removal

    Remove the container (1). Remove the hose (2) from the hose socket. C-SC_CSSM Version 1.0 01.04.2019 Page 13 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 14: Removing The Motor Housing

    Remove the cover (6). Remove the two strands (7). C-SC_CSSM Version 1.0 01.04.2019 Page 14 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 15: Removing The Drill Motor

    Slide the drill motor (3) out of the guide. C-SC_CSSM Version 1.0 01.04.2019 Page 15 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 16: Removing The Carbon Brushes

    Repeat steps 1 to 5 on the opposite side of the machine. C-SC_CSSM Version 1.0 01.04.2019 Page 16 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 17: Removing The Motor Housing

    Unscrew the four screws (1). Remove the motor housing (2). C-SC_CSSM Version 1.0 01.04.2019 Page 17 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 18: Removing The Intermediate Gear Box

    Unscrew the four screws (1). Remove the intermediate gear box (2). C-SC_CSSM Version 1.0 01.04.2019 Page 18 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 19: Removing The Intermediate Gear Box

    Press out the armature (1). Remove the sealing ring (2). C-SC_CSSM Version 1.0 01.04.2019 Page 19 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 20 Remove the needle sleeve (3). Remove the sealing ring (4). C-SC_CSSM Version 1.0 01.04.2019 Page 20 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 21: Removing The Armature

    Chuck cone, 26 mm; 19 mm Remove the grooved ball bearing (1). C-SC_CSSM Version 1.0 01.04.2019 Page 21 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 22 Remove the bearing bush (1). Remove the grooved ball bearing (2). C-SC_CSSM Version 1.0 01.04.2019 Page 22 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 23: Removing The Motor Housing

    Remove the air guide ring (1). Remove the cover (2). Remove the stator (3). C-SC_CSSM Version 1.0 01.04.2019 Page 23 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 24: Removing The Gearbox Housing

    Remove the circlip (3). Remove the two gear wheels (4). C-SC_CSSM Version 1.0 01.04.2019 Page 24 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 25: Removing The Shaft

    Remove the circlip (2). Press out the shaft (3). C-SC_CSSM Version 1.0 01.04.2019 Page 25 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 26: Removing The Gearbox Parts

    Remove the circlip (1). Press out the grooved ball bearing (2). C-SC_CSSM Version 1.0 01.04.2019 Page 26 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 27 Remove the gearwheel (1). Pull off the grooved ball bearing (2). C-SC_CSSM Version 1.0 01.04.2019 Page 27 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 28: Disassembling The Drill Jig

    Press and hold the lock (5) on the plug. Pull off the plug. C-SC_CSSM Version 1.0 01.04.2019 Page 28 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 29: Removing The Control Panel

    Remove the two buttons (1). Remove the switch (2). C-SC_CSSM Version 1.0 01.04.2019 Page 29 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 30: Removing The Electronics

    Disconnect the cable (3). Disconnect the cable (4). Unscrew the screw (1). C-SC_CSSM Version 1.0 01.04.2019 Page 30 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 31 Remove the power cable (3). Remove the cover (4) with the electronics. C-SC_CSSM Version 1.0 01.04.2019 Page 31 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 32: Removing The Electronics

    Unscrew the two screws (2). Remove the electronics (3). C-SC_CSSM Version 1.0 01.04.2019 Page 32 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 33: Removing The Magnetic Foot

    Remove the magnetic foot (3). Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 33 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 34: Removing The Magnetic Foot

    PH2 cross-head screwdriver Unscrew the screw (1). Remove the cable (2). C-SC_CSSM Version 1.0 01.04.2019 Page 34 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 35: Removing The Protective Hose

    Photo shows similar product Remove the sealing ring (2). C-SC_CSSM Version 1.0 01.04.2019 Page 35 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 36: Disassembling Protective Hose

    Remove the connecting cable (2). Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 36 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 37: Removing The Guide

    Unscrew the screw (2). Unscrew the flat-head screw (3). C-SC_CSSM Version 1.0 01.04.2019 Page 37 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 38 Remove the leaf spring (2). Unscrew the six set screws (3). C-SC_CSSM Version 1.0 01.04.2019 Page 38 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 39 Remove the two guide strips. Remove the pressure piece (2). C-SC_CSSM Version 1.0 01.04.2019 Page 39 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 40: Removing The Spider

    Repeat step 3 on the opposite side of the machine. C-SC_CSSM Version 1.0 01.04.2019 Page 40 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 41: Removing The Spider

    Remove the scale (3). Unscrew the three handles (4). C-SC_CSSM Version 1.0 01.04.2019 Page 41 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 42: Fitting

    Position the disc (4). Coat the shaft with grease. C-SC_CSSM Version 1.0 01.04.2019 Page 42 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 43: Positioning The Spider

    Repeat step 1 on the opposite side of the machine. Position the spider (2). Position the circlip (3). C-SC_CSSM Version 1.0 01.04.2019 Page 43 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 44: Positioning The Guide

    Screw in the twelve screws (2). Remove the two guide strips. C-SC_CSSM Version 1.0 01.04.2019 Page 44 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 45 ±0.15 Nm Screw in the screw (3) [1.1 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 45 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 46 ±0.3 Nm Screw in the screw (4) [3.0 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 46 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 47: Fitting The Protective Hose

    Position the connecting cable (1). Photo shows similar product Position the circlip (2). C-SC_CSSM Version 1.0 01.04.2019 Page 47 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 48: Positioning The Protective Hose

    Position the protective hose (2). Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 48 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 49: Fitting The Magnetic Foot

    ±0.2 Nm Screw in the screw (2) [1.5 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 49 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 50: Positioning The Magnetic Foot

    Screw in the screw (3) [1.5 Nm ±0.2 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 50 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 51: Fitting The Electronics

    Connect the two cables (3) as shown in the connection diagram. C-SC_CSSM Version 1.0 01.04.2019 Page 51 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 52: Positioning The Electronics

    ±0.1 Nm Screw in the screw (8) [1.8 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 52 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 53 Fitting 9.1.9 Positioning the electronics Position the cover (1). C-SC_CSSM Version 1.0 01.04.2019 Page 53 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 54: Fitting The Control Panel

    Position the two buttons (1). Position the switch (2). C-SC_CSSM Version 1.0 01.04.2019 Page 54 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 55: Positioning The Control Panel

    Screw in the two screws [4x48] (7) [2.0 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 55 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 56: Fitting The Gearbox Housing

    Press in the grooved ball bearing (3). Position the circlip (4). C-SC_CSSM Version 1.0 01.04.2019 Page 56 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 57: Positioning The Shaft

    Press in the shaft (1). Position the circlip (2). C-SC_CSSM Version 1.0 01.04.2019 Page 57 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 58: Positioning The Gearbox Parts

    Insert the two gear wheels (2). Insert the circlip (3). C-SC_CSSM Version 1.0 01.04.2019 Page 58 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 59 Position the seal (2). Fill the gearbox with 130 g grease. C-SC_CSSM Version 1.0 01.04.2019 Page 59 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 60: Fitting The Motor Housing

    Position the cover (2). Position the air guide ring (3). C-SC_CSSM Version 1.0 01.04.2019 Page 60 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 61: Fitting The Armature

    Press on the grooved ball bearing (1). Position the plate (2). C-SC_CSSM Version 1.0 01.04.2019 Page 61 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 62 Press on the grooved ball bearing (1). Press on the sealing ring (2). C-SC_CSSM Version 1.0 01.04.2019 Page 62 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 63 9.3.2 Fitting the armature Position the bearing bush (1). C-SC_CSSM Version 1.0 01.04.2019 Page 63 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 64: Fitting The Intermediate Gear Box

    ±0.1 Nm Screw in the hose socket (1) [1.8 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 64 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 65 Pay attention to the position of the plate (3). Press in the armature (2). C-SC_CSSM Version 1.0 01.04.2019 Page 65 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 66: Positioning The Intermediate Gear Box

    Screw in the four screws with the sealing ring (2) ±0.1 Nm [1.8 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 66 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 67: Positioning The Motor Housing

    ±0.3 Nm Screw in the four screws (2) [8.0 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 67 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 68: Positioning The Carbon Brushes

    Repeat steps 1 to 5 on the opposite side of the machine. C-SC_CSSM Version 1.0 01.04.2019 Page 68 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 69: Positioning The Drill Motor

    (2) is unscrewed. Slide the drill motor (2) into the guide. C-SC_CSSM Version 1.0 01.04.2019 Page 69 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 70 ±0.15 Nm Screw in the flat-head screw (2) [1.2 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 70 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 71: Positioning The Connecting Cable

    ±0.25 Nm Screw in the screw (6) [1.6 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 71 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.
  • Page 72 ±0.25 Nm Screw in the two screws (2) [1.6 Nm C-SC_CSSM Version 1.0 01.04.2019 Page 72 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 73: Setting The Guide

    Photo shows similar product C-SC_CSSM Version 1.0 01.04.2019 Page 73 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 74: Positioning The Container

    Position the container (1). Place the hose (2) on the hose socket. C-SC_CSSM Version 1.0 01.04.2019 Page 74 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

  • Page 75: Inspection Following Repairs

    Check magnetic holding force Restart lock present: Check restart lock C-SC_CSSM Version 1.0 01.04.2019 Page 75 of 75 All rights reserved by FEIN, especially in case of property rights applications. FEIN retains all rights of disposal, such as copying and circulation.

This manual is also suitable for:
