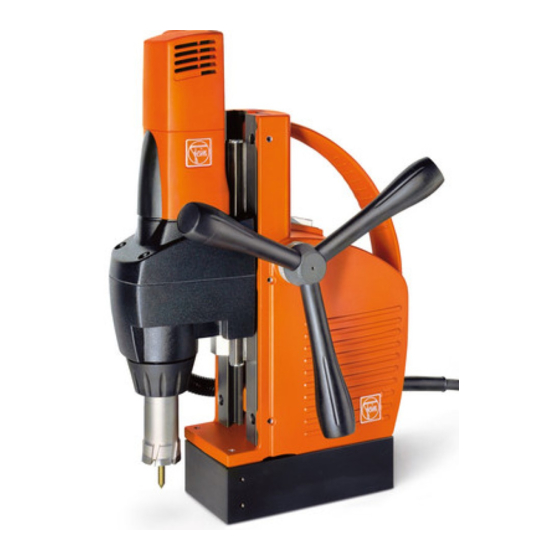

Fein KBM 32 Q Manual

Hide thumbs Also See for KBM 32 Q:

Advertisement

Quick Links

FRT:
KBM 32 Q
Starting page
KBM 32 Q
All rights reserved by FEIN, in particular as these apply to trademarks. FEIN
Sahre/MVK 03/07
retains all powers of disposition such as copying and right of transfer.

Advertisement

loading

Related Manuals for Fein KBM 32 Q

Summary of Contents for Fein KBM 32 Q

  • Page 1 FRT: KBM 32 Q Starting page KBM 32 Q All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 2: Table Of Contents

    Tools Lubricants Modifications Spare design and parts list available on the Internet (www.fein.com) All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 3: Technical Data

    Height (drill jigs) Cam (adjustable) 135-260 Magnetic foot measurement 160 x 80 x 45 All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 4: Maintenance

     Only use original Fein - carbon brushes and Fein - replacement parts All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 5: General Inspection

    For a detailed troubleshooting and inspection possibilities  see Excel - file at the end of the presentation ! All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 6 Heavily load or block motor - after 10 - 16 sec. automatic cut-out ( overload protection ) All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 7 Test voltage on motor without electronics 180 V / AC 86 V / AC All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 8 Smoothed steel plate ( ST 37 - approx. 500x250x25 mm )  Adjustable isolating transformer (inspection motor without electronics with 145 V) All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 9 FRT: KBM 32 Q 3.4. Connection plan All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 10 Testing voltage: 1000 V AC Trip circuit: 5mA > overload relay must not respond All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 11: Disassembly

    4.4. Dismantling chuck 4.5. Dismantling gear 4.6. Dismantling motor 4.7. Dismantling drill rig All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 12 Preparation Disconnect device from mains Switch in "OFF" - position Remove mounted tools All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 13 Release clamp lever and remove drill motor with cover and motor lead. - Screwdriver Torx 20 - Screwdriver Slotted All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 14 2. Clean gear free of grease - Allen key SW4 - Plastic hammer All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 15 - Circlip pliers outside, straight inside, straight - Plastic hammer - Flat pliers All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 16 4. Remove circlip and press out ball bearing - Pull-off device Ø 19 mm, 22 mm - Pull-off cap All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 17 - Screwdriver (phillips) PH2 - Cable hook - Plastic hammer - Flat pliers All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 18 - Plastic hammer - Pull-off device Ø 19 and 26 mm - Pull-off cap All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 19 The cables may not get caught anywhere - danger of tearing !!!!! Tools: - Screwdriver phillips PH 2 - Plastic hammer All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 20 Torx 20 - Plastic hammer - Flat pliers - Hexagon socket 4 mm All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 21 PH 2 Hexagon nut 13 mm Hexagon socket 4 mm Hexagon socket 3 mm All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 22: Assembly

    5.5. Assembling drill rig - gear 5.6. Assembling motor - gear 5.7. Connecting motor All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 23: Tools

    2. Press pre-mounted armature into intermediate bearing Tools: - Press-on support (pipe) - Mandrel press All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 24 Cable exit always on the side of the type identification label Tools: - Screwdriver phillips PH 2 - Plastic hammer All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 25 - Screwdriver (phillips) PH2 - Cable hook - Plastic hammer - Flat pliers All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 26 - Circlip pliers inside, straight - Circlip pliers outside, straight - Pressing-in bolt All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 27 - Circlip pliers outside, straight - Pressing-in bolt - Mandrel press - Plastic hammer All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 28 - Hexagon socket wrench Ø 3 and 4 mm - box nut 13 mm All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 29 1. Insert pre-assembled gear into the motor guide and fix with clamp 2. Grease gear - 70 g ( 0 40 118 0300 9 ) All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07...
  • Page 30 - Screwdriver slotted - Hexagon socket wrench Ø 3 and 2,5 mm - Plastic hammer All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 31 4. Connect the machine to the mains and test functions Tools: - Screwdriver Torx 20 - Flat pliers All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 32 SEM – angle. By moving in, the snap device will be pushed away and the protecting sleeve can be moved out together with the disassembling tool. All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07...
  • Page 33 Ball bearing support D = 19 mm  Ball bearing support D = 26 mm  All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 34: Lubricants

    FRT: KBM 32 Q Lubricants All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.

  • Page 35: Modifications

    (see picture). Wrong! Right! 2 cable retainers All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
  • Page 36 Please left-click the picture to open a excel file with various error causes and inspection possibilities All rights reserved by FEIN, in particular as these apply to trademarks. FEIN Sahre/MVK 03/07 retains all powers of disposition such as copying and right of transfer.
