Installation, connection and commissioning

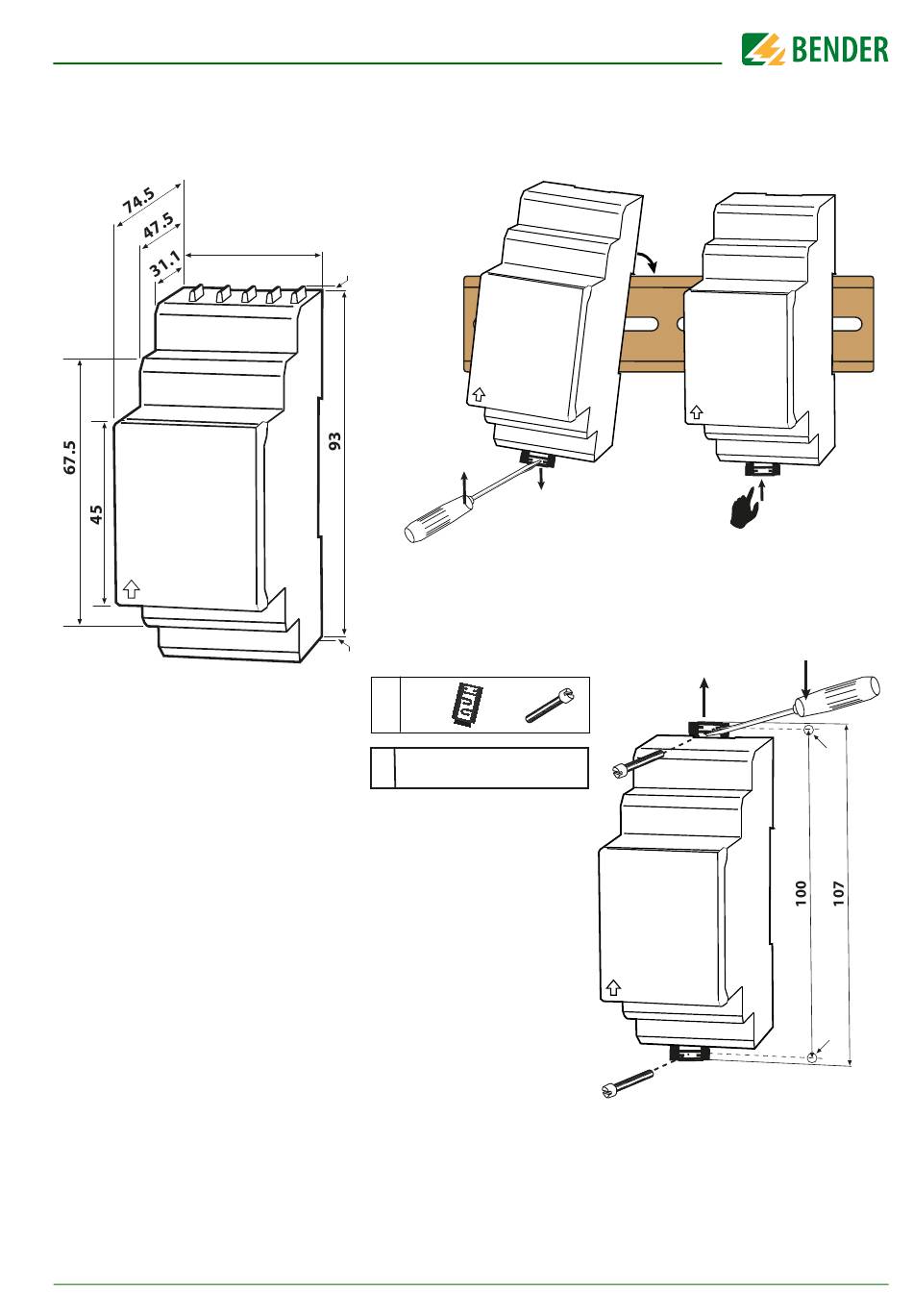

The dimension diagram and sketches outlining how the device can be screw-
mounted and DIN rail mounting are shown below.
The front plate cover can be opened at the lower part marked with an arrow.
isoEV425_D00126_09_M_XXEN/03.2019
36
2
2
&
1 x
!
All dimensions in mm
1.
2 x
2.
3.
Click!
Click
M4
M4
25
