Kurzanleitung DE
Quick-start guide EN

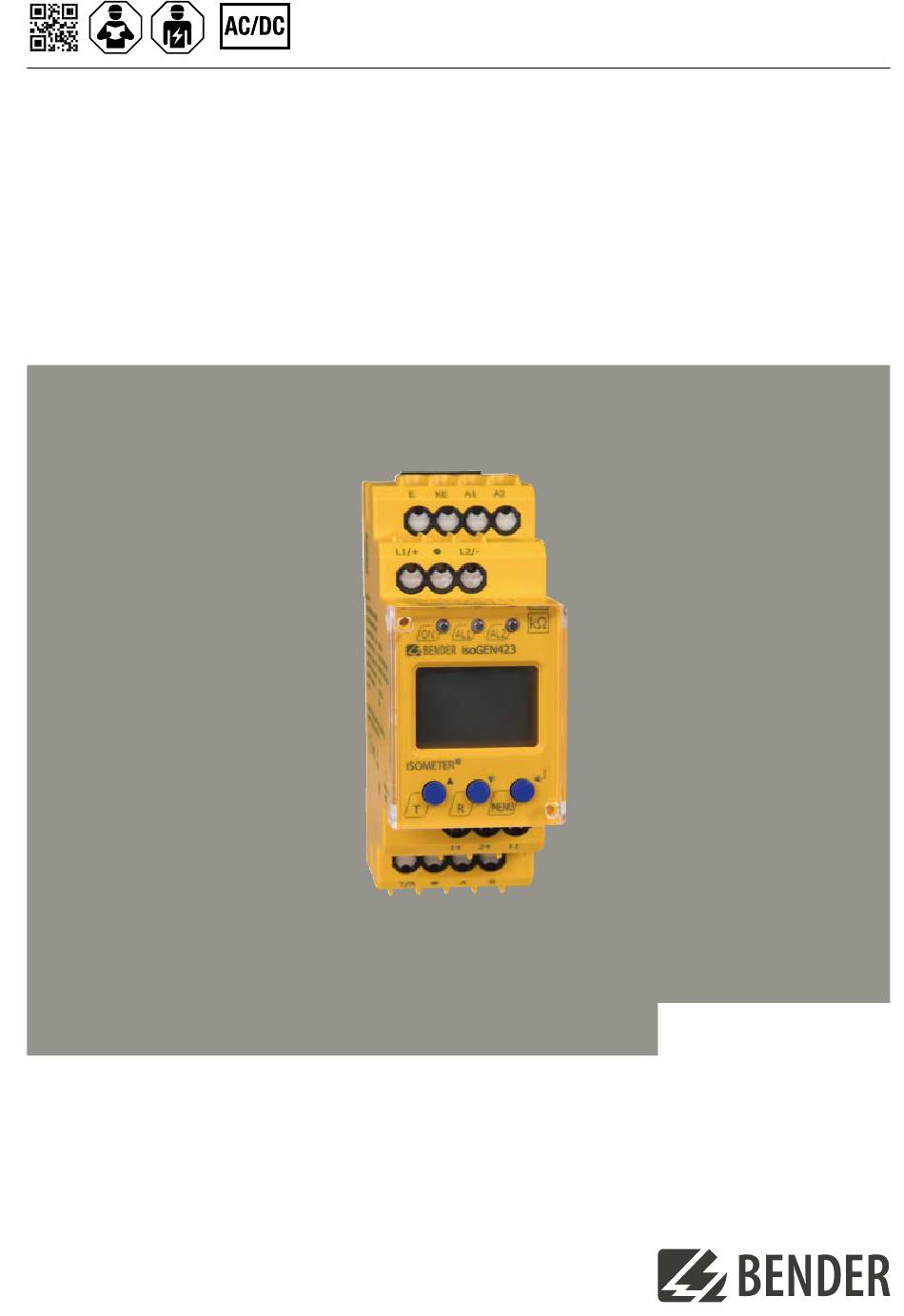

ISOMETER® isoGEN423
Isolationsüberwachungsgerät für ungeerdete AC-, AC/DC- und DC-Netze
(IT-Systeme) bis 3(N)AC, AC 400 V, DC 400 V
Insulation monitoring device for unearthed AC, AC/DC and DC systems
(IT systems) up to 3(N)AC, AC 400 V, DC 400 V
isoGEN423_D00221_04_Q_DEEN / 11.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISOMETER isoGEN423 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bender ISOMETER isoGEN423

  • Page 1 Kurzanleitung DE Quick-start guide EN ISOMETER® isoGEN423 Isolationsüberwachungsgerät für ungeerdete AC-, AC/DC- und DC-Netze (IT-Systeme) bis 3(N)AC, AC 400 V, DC 400 V Insulation monitoring device for unearthed AC, AC/DC and DC systems (IT systems) up to 3(N)AC, AC 400 V, DC 400 V isoGEN423_D00221_04_Q_DEEN / 11.2023...
  • Page 2 ISOMETER® isoGEN423 ISOMETER® isoGEN423 ISOMETER® isoGEN423 Isolationsüberwachungsgerät Insulation monitoring device Diese Kurzanleitung ersetzt nicht das Handbuch! This quick-start guide does not replace the manual! Kurzanleitung für folgende Geräte Quick-start guide for the following devices Handbuch Nr. / Typ / Type Klemme / Terminal Art.-Nr.
  • Page 3: Montage

    ISOMETER® isoGEN423 Abmessungen Dimensions 1.42” (36) 1.22” (31,1) 1.87” (47,5) 74,5 Maßangabe in inch (mm) Dimensions in inch (mm) Montage Mounting Click & Click! Montage auf Hutschiene | DIN rail mounting Schraubbefestigung | Screw mounting isoGEN423_D00221_04_Q_DEEN / 11.2023...
  • Page 4: Wiring Diagram

    ISOMETER® isoGEN423 Anschlussbild Wiring diagram L1/+ L2/- L1/+ Test / Reset MENU COM465IP RS-485 Klemme / Anschlüsse Connections Terminal Anschluss an die Versorgungsspannung U über Schmelzsicherung: Connection to the supply voltage U via a fuse: If supplied from an A1, A2 Bei Versorgung aus IT-System beide Leitungen absichern.
  • Page 5: Control Panel

    ISOMETER® isoGEN423 Bedienfeld Control panel Funktion Gerätefront/Device front Element Function grün - On green - On gelb - Vorwarnung yellow - Pre-warning gelb - Alarm yellow - Alarm Aufwärts-Taste Up button Test-Taste (> 1,5 s drücken) Test button (press > 1.5 s) Bei gedrückter Test-Taste werden die By pressing and holding the test button, Display-Elemente angezeigt.
  • Page 6: Menü-Übersicht

    ISOMETER® isoGEN423 Menü-Übersicht Menu overview Messwertanzeige Menüauswahl Parametereingabe Measurement display Menu selection Parameter selection > < 1.5 s > > 1.5 s 1.5 s . . . < t > 5 Min. < > 1.5 s R [k ] C [µF] U L1 L2 [V] U L1 [V] <...
  • Page 7 ISOMETER® isoGEN423 Ansprechwerte Response values Ansprechwert R ..........R …250 kΩ (46 kΩ)* Response value R ........... R …250 kΩ (46 kΩ)* Ansprechwert R ..........5 kΩ…R (23 kΩ)* Response value R ..........5 kΩ…R (23 kΩ)* Ansprechunsicherheit R ......±15 %, mindestens ±2 kΩ Relative uncertainty R ........
  • Page 8: Eu-Konformitätserklärung

    Alle Rechte vorbehalten. 35305 Grünberg Nachdruck und Vervielfältigung nur mit Germany Genehmigung des Herausgebers. © Bender GmbH & Co. KG, Germany Subject to change! The specified Tel.: +49 6401 807-0 All rights reserved. standards take into account the edition info@bender.de...
