Performance Series Network Video Recorder User Guide

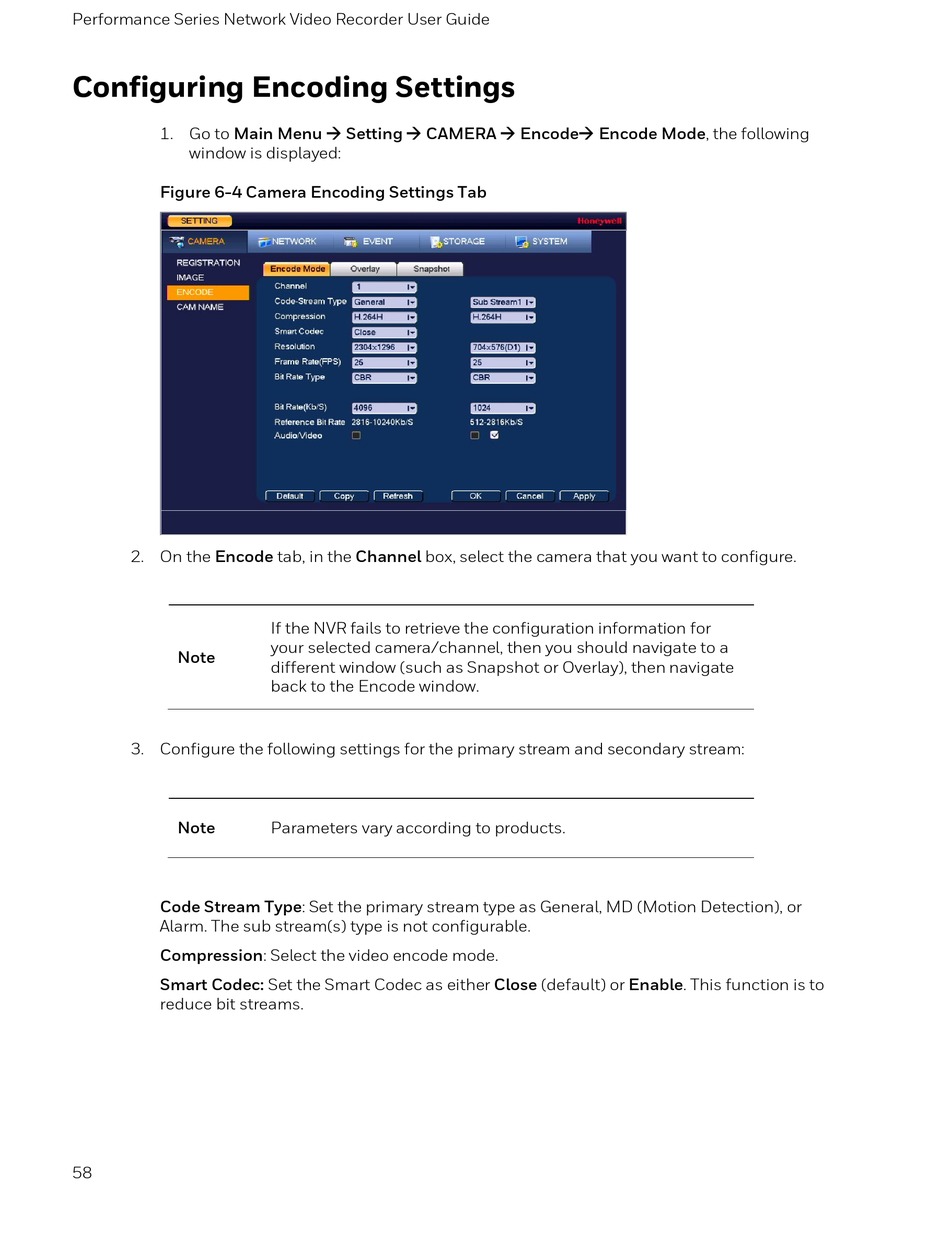

Configuring Encoding Settings

1. Go to Main Menu  Setting  CAMERA  Encode Encode Mode, the following
window is displayed:
Figure 6-4 Camera Encoding Settings Tab
2. On the Encode tab, in the Channel box, select the camera that you want to configure.
Note
3. Configure the following settings for the primary stream and secondary stream:
Note
Code Stream Type: Set the primary stream type as General, MD (Motion Detection), or
Alarm. The sub stream(s) type is not configurable.
Compression: Select the video encode mode.
Smart Codec: Set the Smart Codec as either Close (default) or Enable. This function is to
reduce bit streams.
58
If the NVR fails to retrieve the configuration information for
your selected camera/channel, then you should navigate to a
different window (such as Snapshot or Overlay), then navigate
back to the Encode window.
Parameters vary according to products.
