Installing the Control Unit

Installing the Backplane and System Modules
2-4 Installing the Hardware
Before you begin, use the System Planner to decide where phones and other
equipment are to be installed, and how the system and phones are to be pro-
grammed. Instructions for installing the control unit, telephones, and other
equipment are on the following pages.
CAUTION:
Enviromental and electrical conditions must meet the specifications in
Appendix D.
CAUTION:
Do not connect the AC power cord before you install modules in the
backplane.

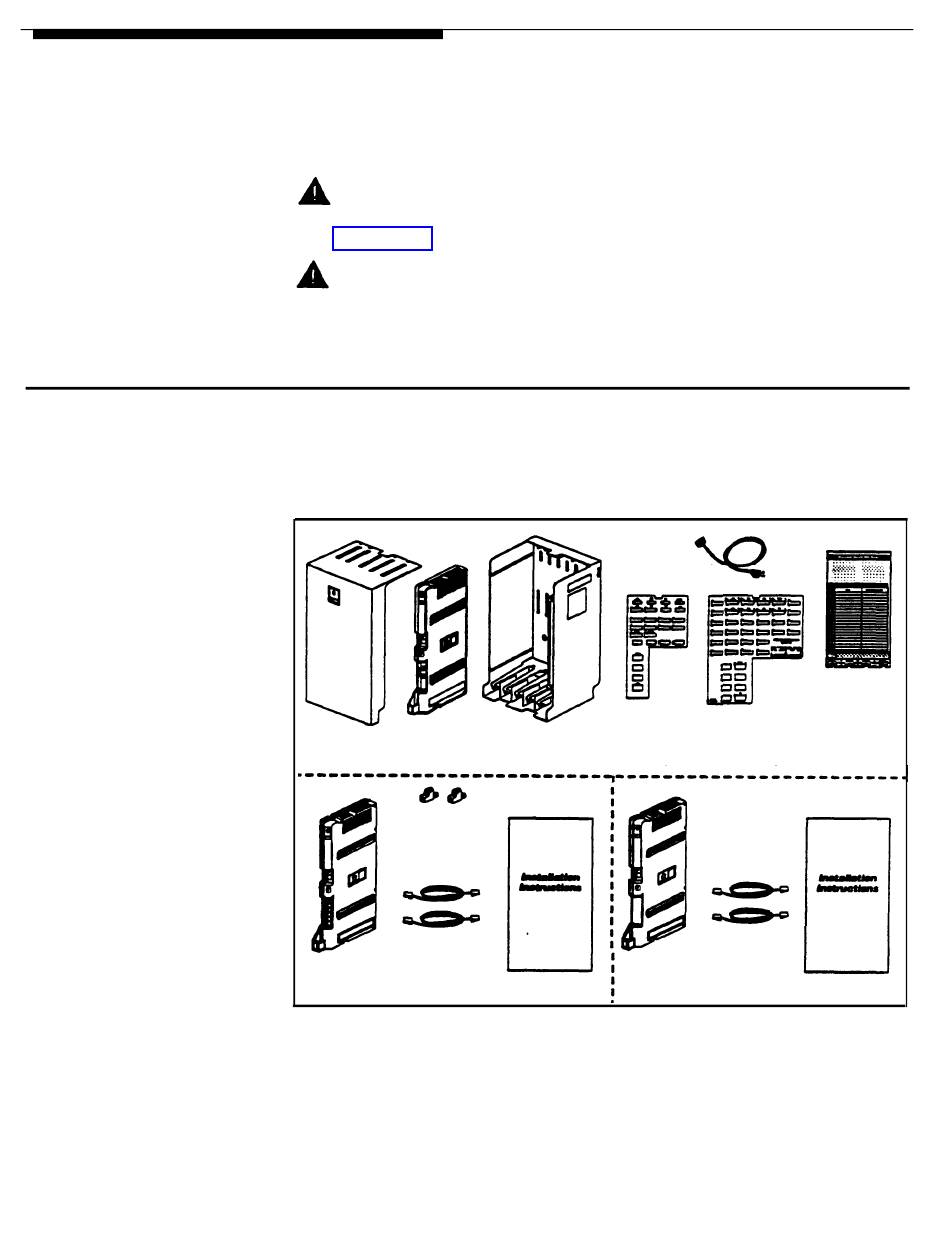

Before installing the backplane and system modules, be sure you have the parts
shown in Figure 2-4 (if not, call the Helpline). Depending on the number of lines
and extensions in your system, you will have up to three packages of system
components; Figure 2-4 shows the contents of each package in an area marked
by a dashed line.
Processor
Cover Module
267F2
Bridging
Adapters
7-foot
206 Telephone
Module
Line Cords
Figure 2-4 System Parts
If you are wall mounting the control unit, you also need four #12 screws
appropriate for the type of wall and weight of the control unit.
AC
Power Cord
MLS-12D
Programming Programming
Backplane Overlay
200
Module
Instructions
Quick
Reference
MLS-34D
Cards
(2 packages
of 6)
Overlay
7-foot
Telephone
Line Cords Instructions
