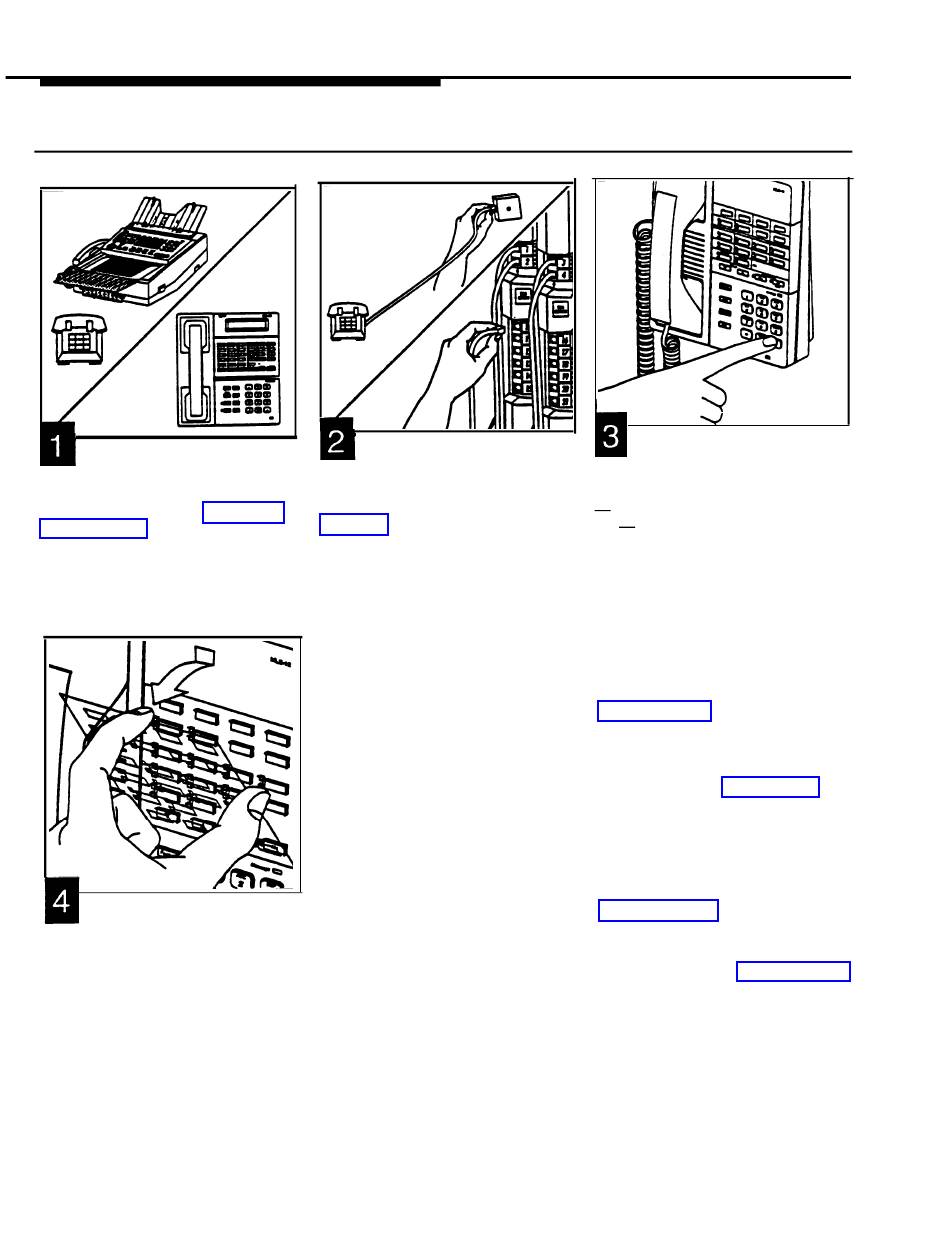

Installation Instructions
Assemble a standard phone or
other industry-standard device accord-
ing to the manufacturer's instructions..
(For system phones, see "Assembling
System Phones" on page 2-9.)
NOTE: To connect devices to the
system, follow only these instructions,
not the instructions provided by the
manufacturer.
To put the button sheet on a
system phone, remove the clear plastic
cover from the phone—gently pull the
center tab down (toward the front of the
phone), then lift. Place a filled-out button
label sheet on the phone so the holes on
the sheet fit over the buttons. Replace
the plastic cover.
2-8 Installing the Hardware
Plug the telephone cord into a
modular wall jack or directly into a 206
module extension jack. To install two
devices on a single extension, see
Figure 2-5 on page 2-7.
If the telephone cord provided with a
standard device is loose, use an AT&T
D2R mounting cord instead.
Test the telephone for proper
operation. To test the power and lights
on a system phone, press and hold the
[#] button for 5 seconds. Before releasing
the [#] button, lift the handset. All lights
should light, the ringer should sound,
and (on the MLS-12 or MLS-34D
phones only) a test pattern should
appear on the display. If not call the
Helpline at 1 800 628-2888. Replace the
handset; the phone is now in normal
operating mode.
To test the intercom, lift the handset and
press an intercom button. You should
hear an intercom dial tone. If not, see
"Troubleshooting" in Appendix C.
Next, test the outside line connection. Lift
the handset and press an outside Iine
button. You should hear an outside dial
tone. If not, see "Troubleshooting" in
Appendix C.
If you are installing two phones on one
extension, pick up the handset of the first
phone and listen for dial tone. Then pick
up the handset of the second phone and
listen for dial tone. If no dial tone, see
"Troubleshooting" in Appendix C.
To test a standard phone, lift the handset
and listen for a dial tone. If you don't
hear a dial tone, see "Troubleshooting" in
Appendix C.
