Lights
Light Pattern
Steady On
Off
(steady off)
Flash
(long on, long off)
Wink
(long on, long off)
Flutter
(short on, short off)
Broken Flutter
(short on/off, long off)
Alternate Red/Green Flash
(red on, green on, red on, green on)

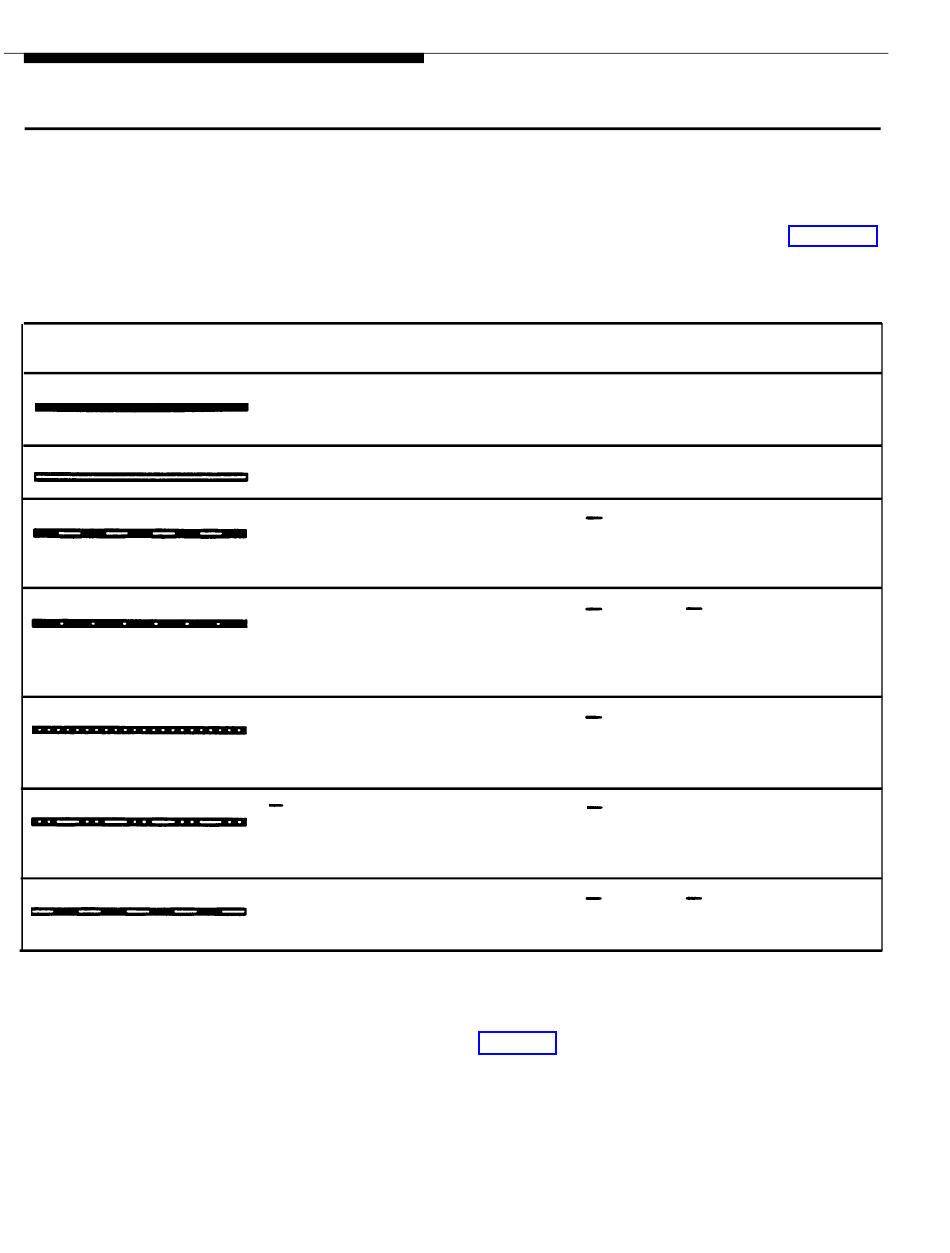

Table 4-1 Light Patterns for System Phones
4-4 Using Telephones
Each line button has a green light and a red light. The meaning of these lights
varies, depending on whether a button is used to access an outside line, is
programmed with a dial-code feature, or is programmed with an lntercom
(extension) Auto Dial number. (Auto Dial buttons for fax extensions show addi-
tional information; these "Fax Management" buttons are described in Chapter 5.)
Table 4-1 shows the meanings of the various light patterns for each possible
button assignment.
Line Button
Line is busy. Green means your phone is
busy; red means another extension is busy
on the line.
Line is idle (not being used).
A call is ringing on the line. Green flash
means a call is ringing at your extension.
Red flash means a call is ringing on the line,
but not at your extension.
A call on the line is on hold. When the green
light winks, the call is on hold at your
extension. When the red light winks, the call
is on hold at another extension. (Anyone
who has the line can retrieve the call.)
Green flutter means a call is on exclusive
hold at your extension. (Only the extension
that placed the call on hold can retrieve it.)
Alternating green and red flash appears on
both extensions in a joined call, and on any
extension connected in a conference call.
NOTE:
When a phone is in programming mode, the lights show information about
programmed settings. See Chapter 3 for details.
Feature Intercom Auto Dial
Button Button
Feature is Red means extension is
busy (making or answering
on.
a call).
Feature is
Extension is idle (not being
off . used).
Green flash means
extension is calling you.
Green flutter means a call
transferred to the extension
is now ringing at your
phone.
Fax Management only—the
fax extension is not
answering calls (may be
out of paper).
