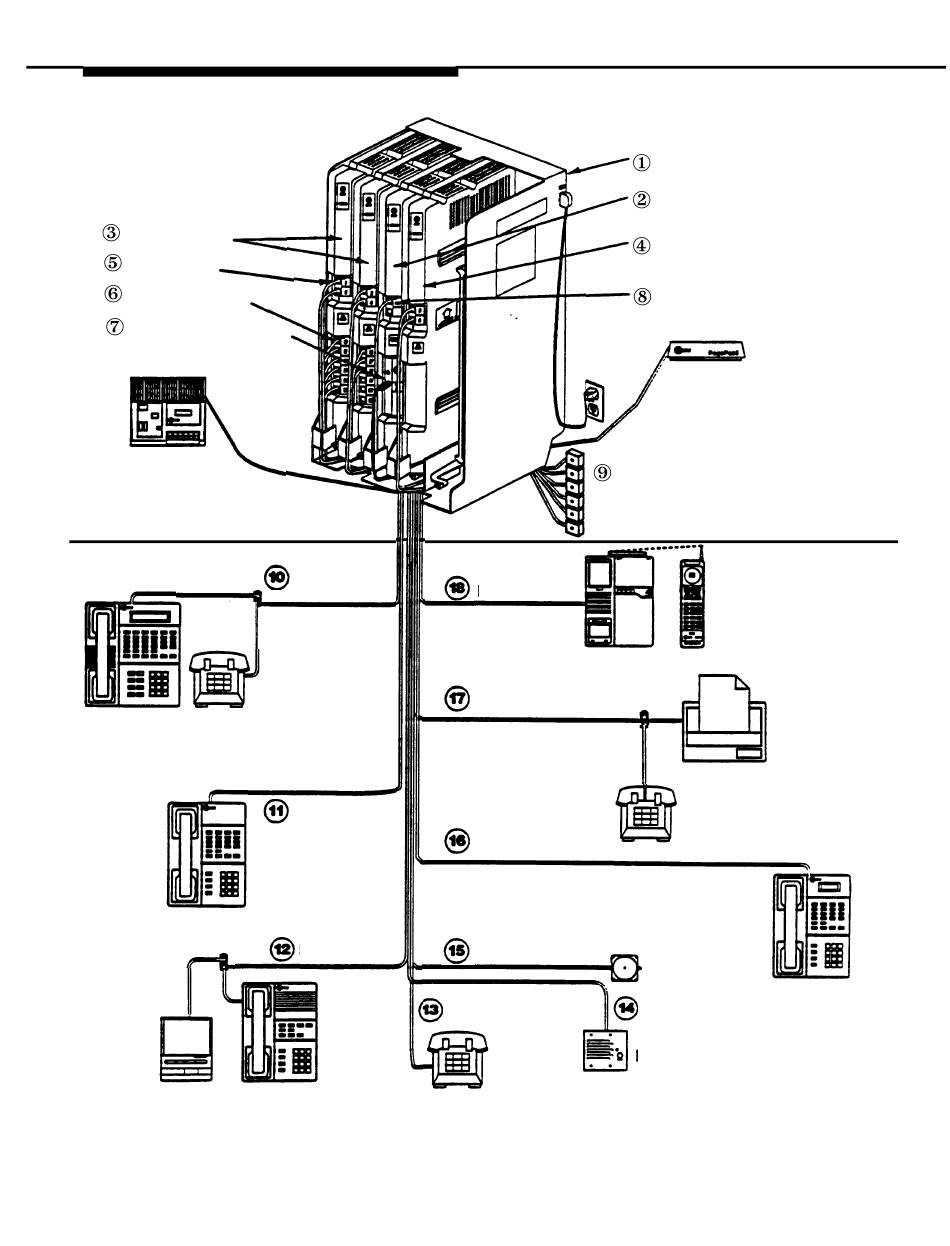

CONTROL UNIT
NOTE:
This sample system
has six lines (1-6) and
nine extensions (10-18)
206 Modules
Line Jacks
Extension Jacks
Music-on-Hold Jack
(connected to AT&T
Magic on Hold® deck)
EXTENSIONS
267F2
Bridging
Adapter
MLS-34D
Display
Phone
MLS-12
System
Phone
267F2 Bridging
Adapter
Answering
Machine
Extension 10
Standard Phone
for Power Failure
Operation
Extension 11
Extension 12
MLS-6
System
Phone
Network Interface Jacks
Extension 18
Extension 17
267F2
Bridging
Adapter
Extension 16
Bell
Extension 15
Extension 13
Standard
Touch-Tone
Telephone
Backplane
Processor Module
(center slot)
200 Module (installed to the
right of all 206 modules)
PAGE Jack (connected
®
to AT&T PagePac
6
Paging System)
MLC-6
Cordless Phone
Fax Machine
Standard
Touch-Tone
Telephone
MLS-12D
Display
Extension 14
Phone
Doorphone
Installing the Hardware 2-3
