Assembling For Making Cookies - Gastroback DESIGN MINCER PLUS Operating Instructions Manual

and the axis of the worm stands out 2 mm of
the grinding disc.
Place the cone on the worm housing and fit the
closure ring over the cone. Firmly screw the clo-
sing ring on the worm housing and tighten by
hand.
ATTENTION:
tightening the screw and pay attention not to
cant the screw. If the screw cants the screw
thread gets damaged. If the screw does not turn
easily put some sunflower oil (or other edible oil)
on the screw.
2. Firmly secure the worm housing in the ope-
ning for the drive shaft. The small end of the
worm housing has to face the mincer (pic-
ture J). Incline the worm housing a little bit
to the right, when assembling it. When the
worm housing is fitted all the way into the
opening of the drive shaft the release button
sinks into the motor housing. Turn the worm
housing counter clockwise until the shaft is
facing upright and is locked into place.
Note:
When the worm housing is securely attached
you can hear a click sound and the release
button comes out of the recess again.

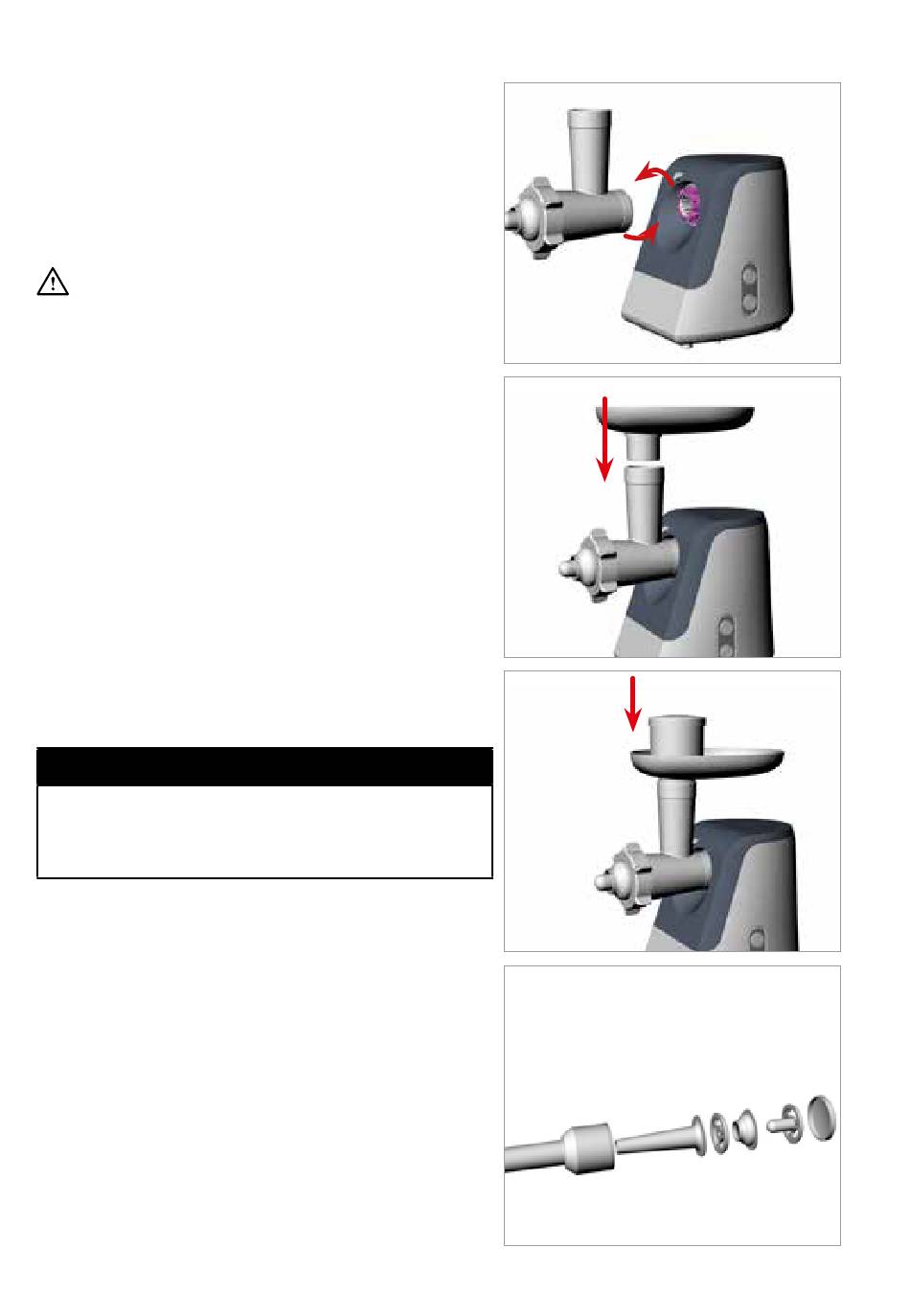

3. Press the feed pan onto the worm housing
(picture K).
4. Place the pusher into the opening of the
feed chute (picture L).
The appliance is ready for operation.

ASSEMBLING FOR MAKING COOKIES

1. Take the worm housing into the right hand
and insert with your left hand the worm
inside the worm housing. (Picture M) The
