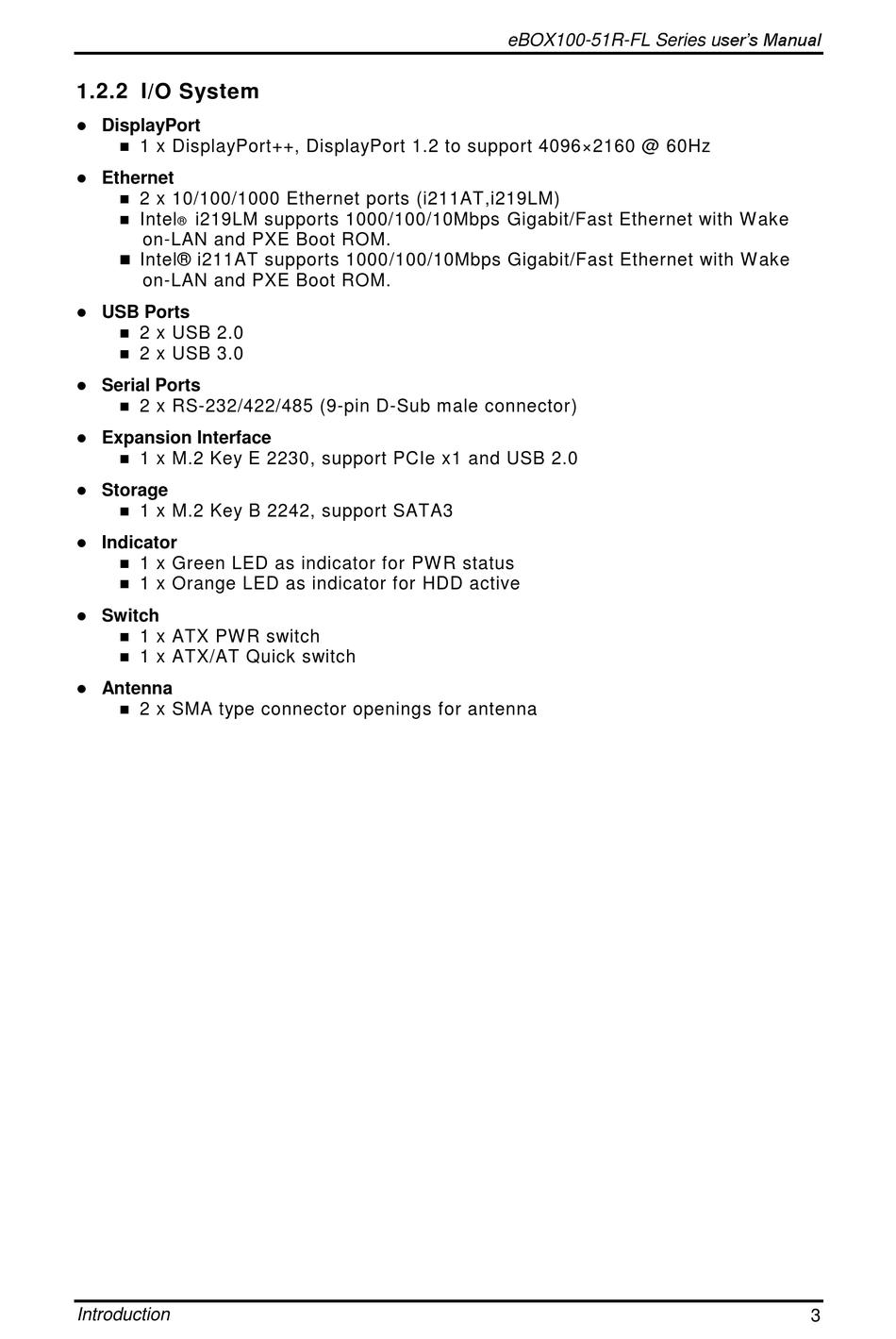

1.2.2 I/O System

 DisplayPort
 1 x DisplayPort++, DisplayPort 1.2 to support 4096× 2160 @ 60Hz
 Ethernet
 2 x 10/100/1000 Ethernet ports (i211AT,i219LM)

Intel i219LM supports 1000/100/10Mbps Gigabit/Fast Ethernet with W ake
®
on-LAN and PXE Boot ROM.

Intel® i211AT supports 1000/100/10Mbps Gigabit/Fast Ethernet with W ake
on-LAN and PXE Boot ROM.
 USB Ports
 2 x USB 2.0
 2 x USB 3.0

Serial Ports

2 x RS-232/422/485 (9-pin D-Sub male connector)
 Expansion Interface
 1 x M.2 Key E 2230, support PCIe x1 and USB 2.0
 Storage
 1 x M.2 Key B 2242, support SATA3

Indicator
 1 x Green LED as indicator for PW R status
 1 x Orange LED as indicator for HDD active
 Switch
 1 x ATX PW R switch
 1 x ATX/AT Quick switch
 Antenna
 2 x SMA type connector openings for antenna
