2.3 Installation of DRAM Module

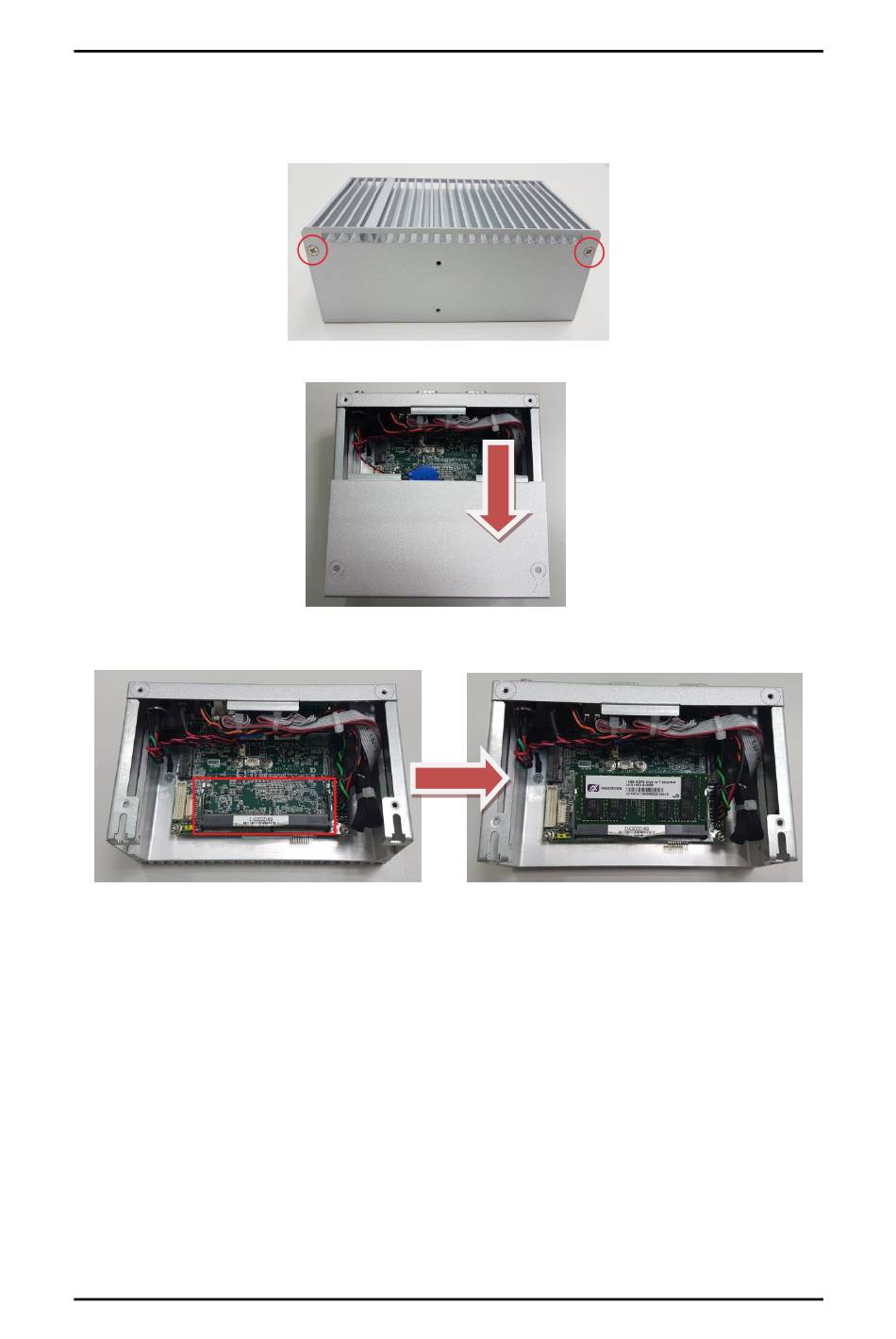

Step 1 Turn off the system and unplug the power cord.
Step 2 Turn the system to the backside and then loosen tw o screws.
Step 3 Slide away the bottom cover.
Step 4 Locate the memory module, insert a gold colored contact into the
socket and push the module two end latches till locked.
.
Step 5 Put the bottom cover back and fasten all of screws.
