eBOX100-51R-FL Series user's Manual

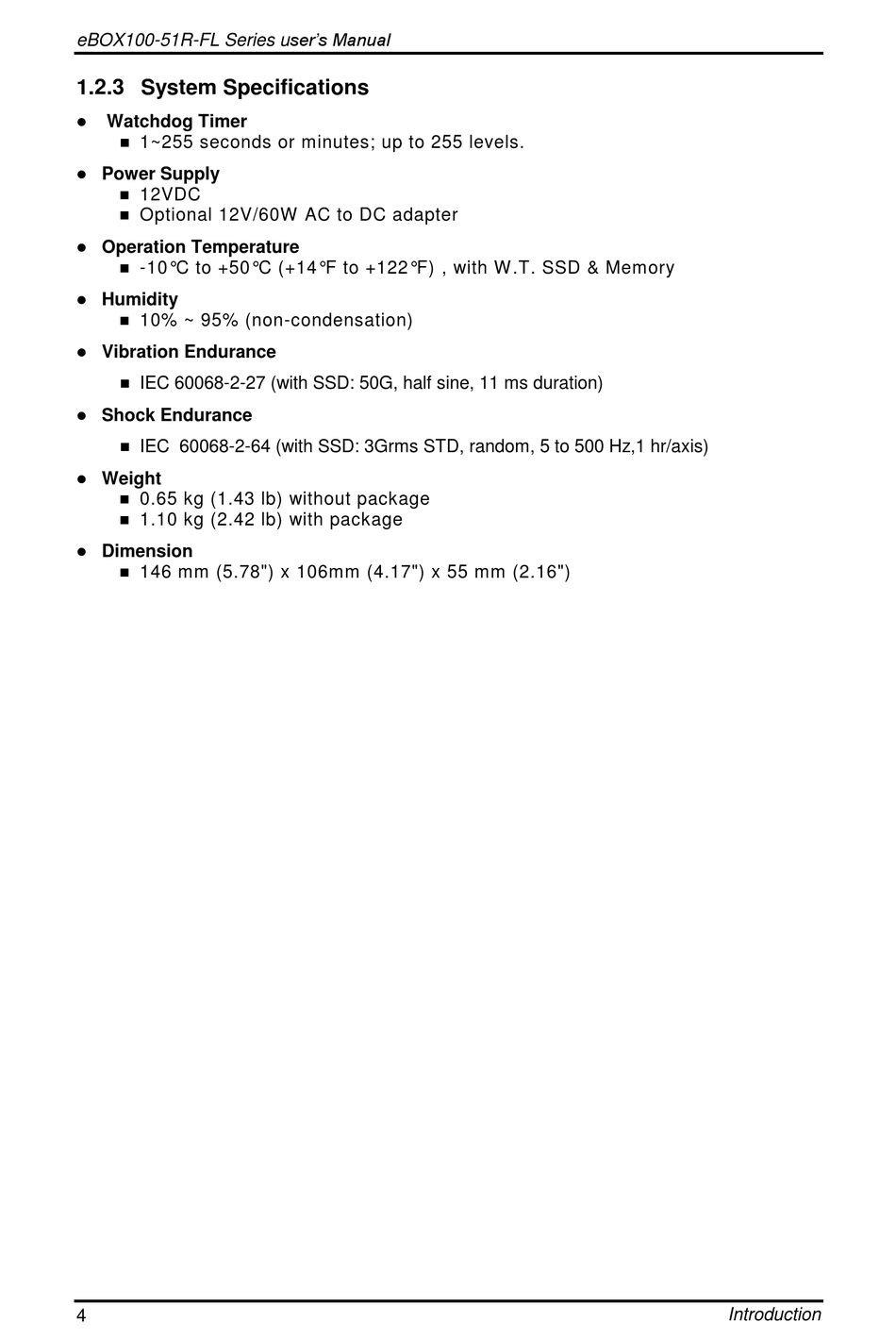

1.2.3 System Specifications

 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 Power Supply

12VDC
 Optional 12V/60W AC to DC adapter
 Operation Temperature
 -10°C to +50°C (+14°F to +122°F) , with W .T. SSD & Memory
 Humidity

10% ~ 95% (non-condensation)
 Vibration Endurance

IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
 Shock Endurance
 IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz,1 hr/axis)
 Weight
 0.65 kg (1.43 lb) without package
 1.10 kg (2.42 lb) with package
 Dimension

146 mm (5.78") x 106mm (4.17") x 55 mm (2.16")
4
Introduction
