3.3.8 DisplayPort Connector (CN13)

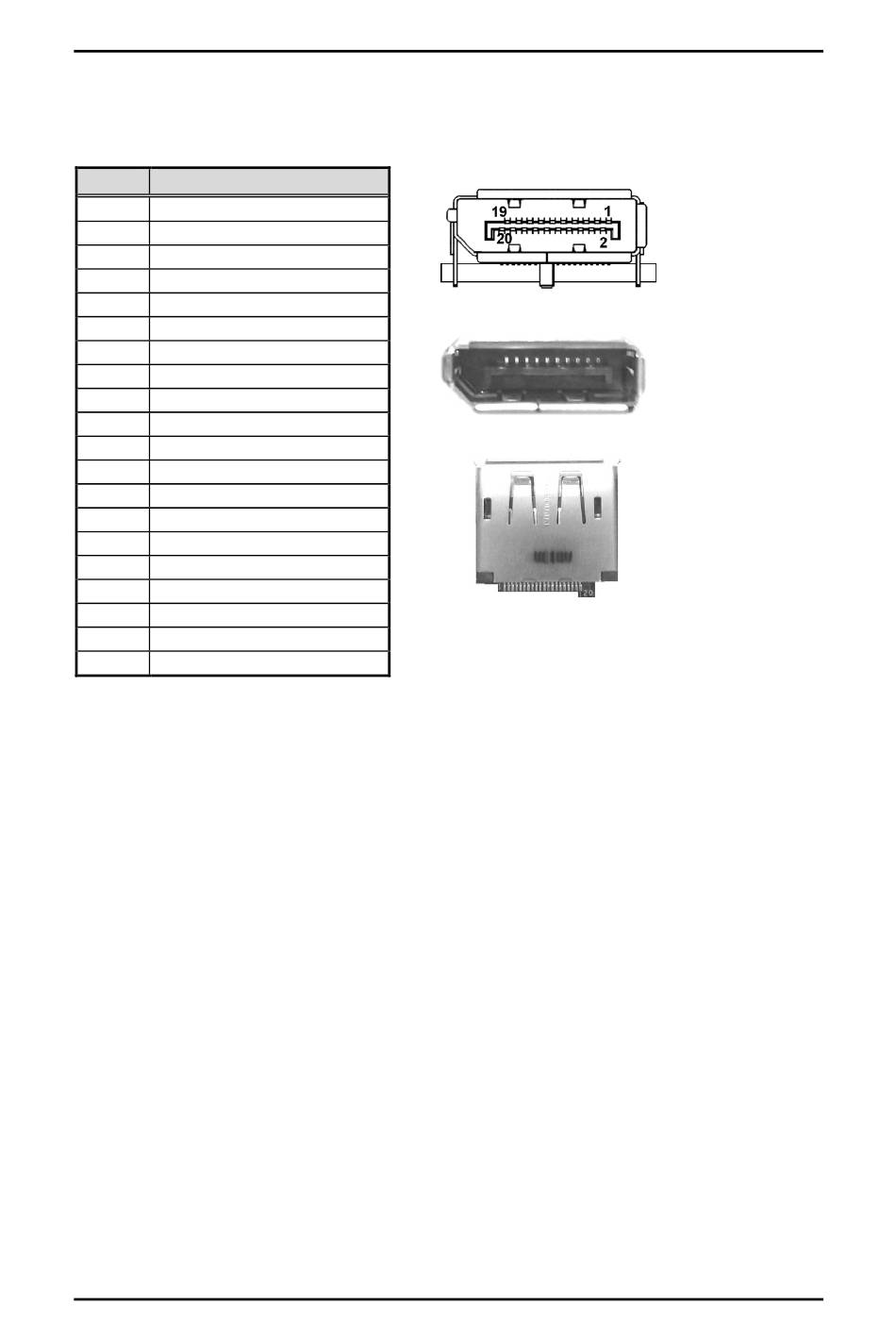

The DisplayPort interface is available through connector CN13.
Pins Signals
1 DPB_LANE0
2 GND
3 DPB_LANE0#
4 DPB_LANE1
5 GND
6 DPB_LANE1#
7 DPB_LANE2
8 GND
9 DPB_LANE2#
10 DPB_LANE3
11 GND
12 DPB_LANE3#
13 Detect Pin
14 GND
15 DPB_AUX
16 GND
17 DPB_AUX#
18 DPB_HPD
19 GND
20 +3.3V
