The eBOX100-51R-FL is convenient for various hardware configurations, such as DRAM, M.2
Section 2 contain guidelines for hardware installation.
2.1 Installation of M.2 Storage Device
The eBOX100-51R supports one M.2 2242 key B for M.2 SSD storage (SATA interface)
Note: Please remove the DRAM before install the M.2 module if the system has installed
the DRAM already.

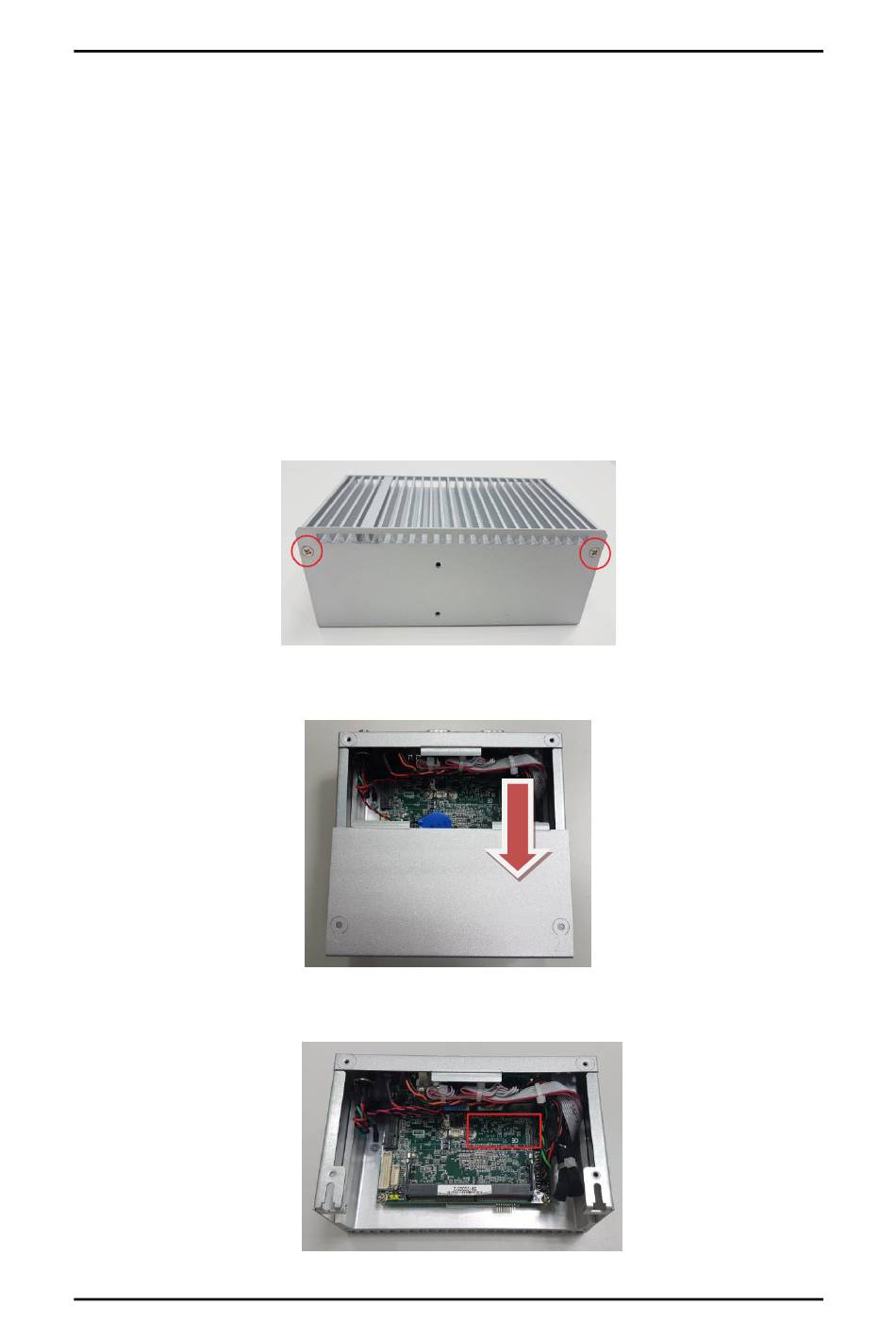

Step 1
Turn off the system and unplug the power cord.
Step 2 Turn the system to the backside and then loosen two screws.
Step 3
Slide away the bottom cover.
Step 4 Locate M.2 2242 key B connector within the red line as marked.
Hardware Installation
eBOX100-51R-FL Series user's Manual
HARDWARE INSTALLATION
