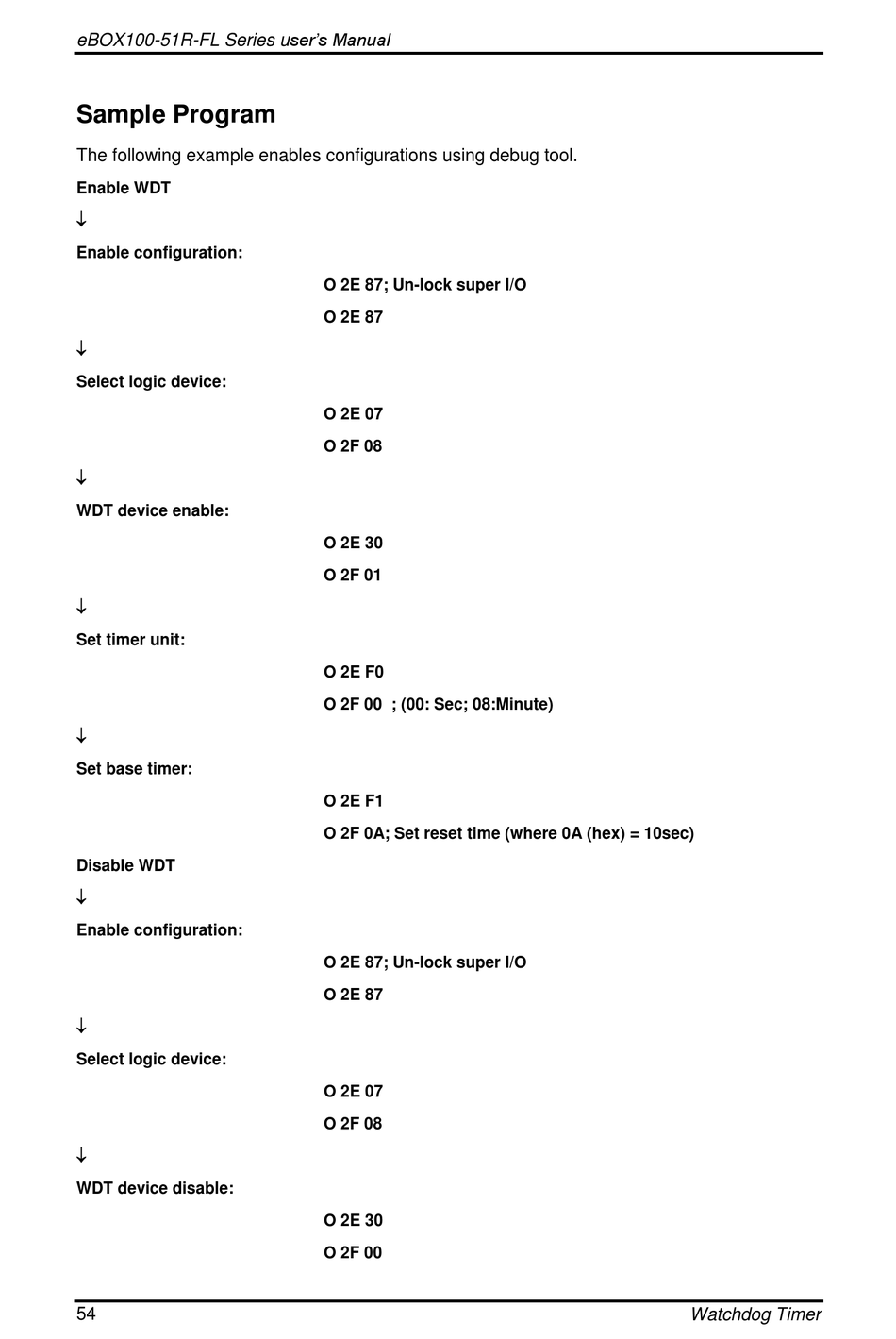

Sample Program

The following example enables configurations using debug tool.
Enable WDT

Enable configuration:

Select logic device:

WDT device enable:

Set timer unit:

Set base timer:
Disable WDT

Enable configuration:

Select logic device:

WDT device disable:
54
O 2E 87; Un-lock super I/O
O 2E 87
O 2E 07
O 2F 08
O 2E 30
O 2F 01
O 2E F0
O 2F 00 ; (00: Sec; 08:Minute)
O 2E F1
O 2F 0A; Set reset time (where 0A (hex) = 10sec)
O 2E 87; Un-lock super I/O
O 2E 87
O 2E 07
O 2F 08
O 2E 30
O 2F 00
