MPI Module Overview

The FreeFlight Systems (FFS) Automatic Dependent Surveillance – Broadcast (ADS-B)
Maintenance Port Interface (MPI) module is a battery powered device that communicates with
the aircraft's ADS-B equipment maintenance port. It provides Wi-Fi connectivity to an Android
device loaded with the free ADS-B MPI app.

3.4.1 MPI Module

The MPI module is connected to the aircraft's ADS-B equipment
MPI via a DB-9 female connector configured to Serial Port 5 or Port
3. This allows the ADS-B equipment configuration and functionality
to be accessed wirelessly using the ADS-B MPI app. The MPI
module USB micro-AB connector can also be connected to the
ADS-B equipment USB micro-AB maintenance connector.

3.4.2 ADS-B MPI App

The ADS-B MPI app allows the user to configure and verify ADS-B equipment settings, access
diagnostic information, log, and play back information. The location of the equipment and the
traffic received is also displayed on a graphical map.
3.5

MPI Hardware Configuration

3.5.1 Top Components

Three status Light Emitting Diodes (LED) provide continuous MPI module operational status.
These LEDs are Associated (AS), Transmit/Receive (Tx/Rx), and Internet Protocol (IP). The
table below describes the LED indications.
Condition
On Solid
Fast Blink
Slow Blink
Off

3.5.2 Front Component

When Serial Port 3 and Port 5 are configured and interfaced to other equipment
(TC978 or display) the connections to the configured device must be temporarily
disconnected to use the port for MPI purposes.
3-24

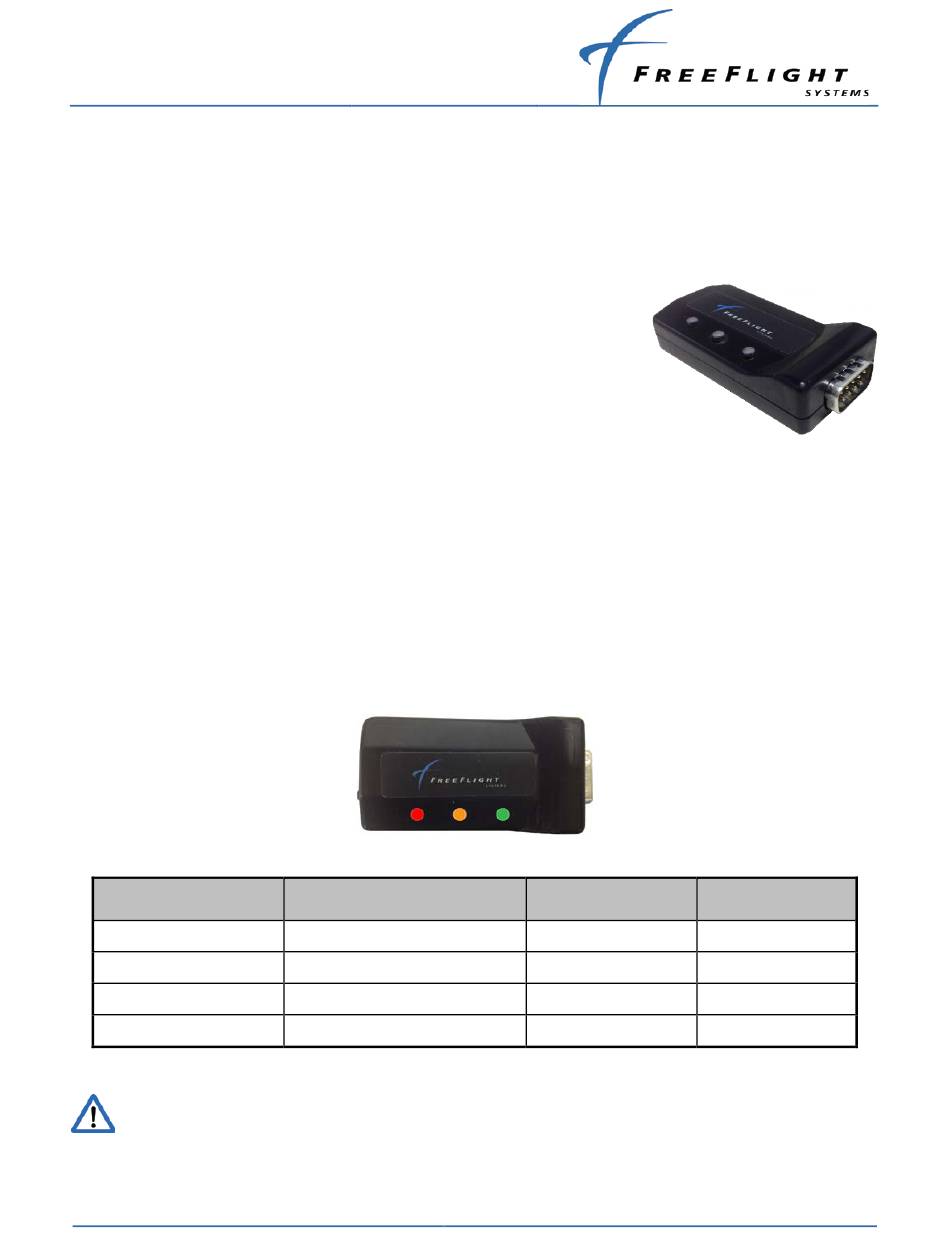

Figure 12. MPI Module Top View
Red (AS)
N/A
Not Associated
N/A
Associated, Connection OK
Figure 11. MPI Module
Yellow (Tx/Rx)
N/A
Data transferring
Data transferring
N/A
FFS Copyright © 2015 All rights reserved.
Green (IP)
Connected
N/A
Connected
N/A
