3.6.2.8 Serial IN Channel X Line Speed

(X = channel number) The following options are offered for selecting the serial input baud rate
for each channel data type:
1. 4800
3. 19200
5. 57600
7. 230400

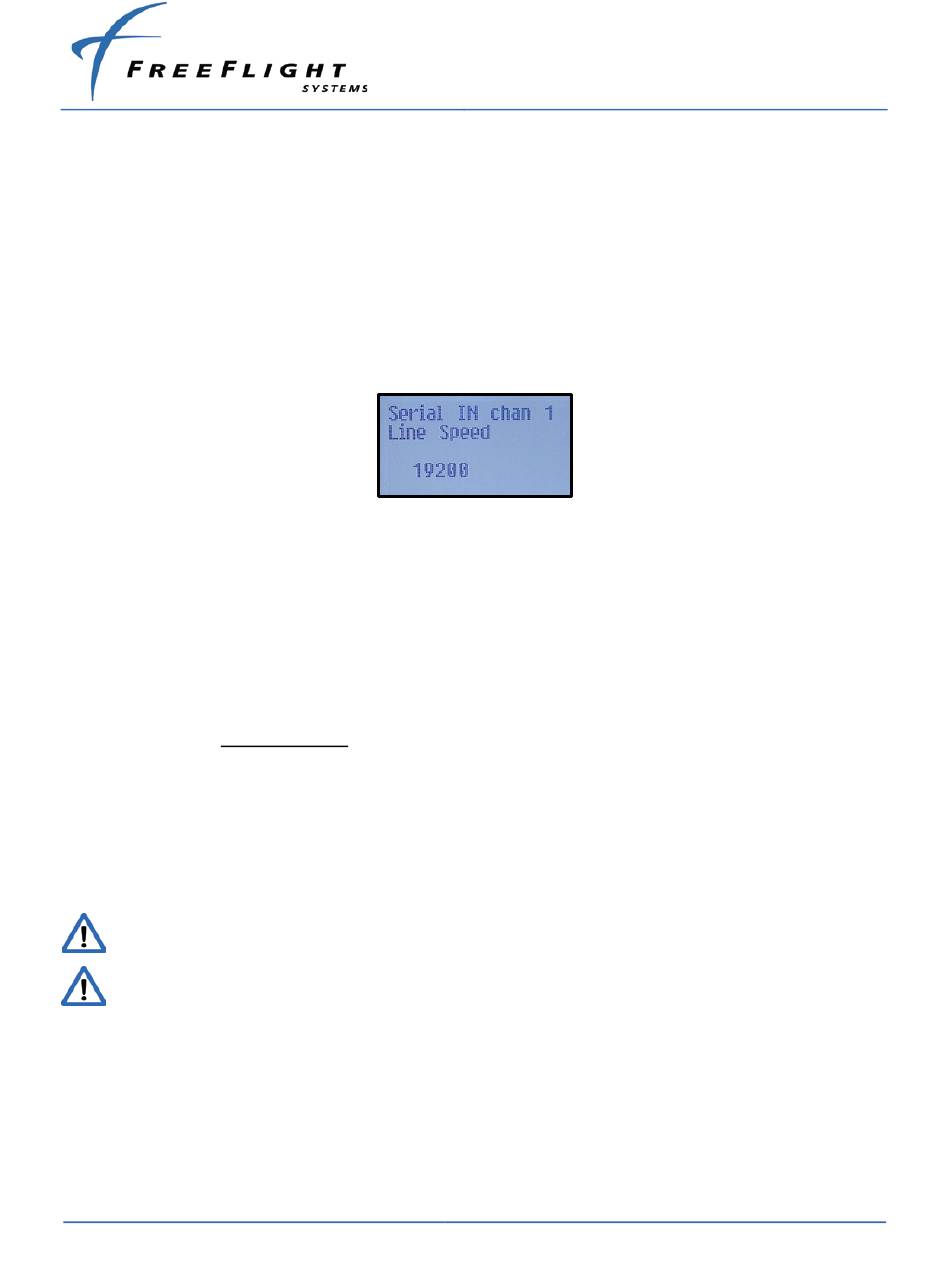

The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct serial input speed. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.

3.6.2.9 Serial OUT Channel X Data Type

(X = channel number) The FDL-978-XVR can transmit data via two serial channels. The
following options are offered for selecting serial output type for each individual channel of the
FDL-978-XVR:
Channel 2 or 6
1. Not Used
2. Encoded Altitude
3. TIS/FIS
4. ADS-B Pass Thru
5. XPDR Monitor*
6. MX-20
* Only used in conjunction with FTM-190C, external Transponder Monitor.
Refer to Section 3.3.2.2 for details on selecting serial output settings.
