ADS-B FDL-978 Series and
Lite Series Installation Manual
Document No. 87343 Rev F
2.2.1 FDL-978 Series
The FDL-978 equipment is designed to be mounted in any convenient location in the cockpit,
the cabin, or an avionics bay.
Select a position in the aircraft that is not too close to any high external heat
source. (The FDL-978 Series and FDL-978 Lite Series are not a significant heat
source itself).
Avoid sharp bends and placing the cables too near to the aircraft control cables.
Secure the FDL-978 Series and FDL-978 Lite Series on a flat surface according
to the mounting requirements illustrated below in Figure 5 and in the installation
drawing in SECTION 8.

2.2.2 TC978 Controller

The TC978 Controller must be mounted rigidly in the aircraft panel. The Controller can be
mounted in the ultra-compact mounting or conventional 2.25 in [57mm] instrument cut-out.
2-2

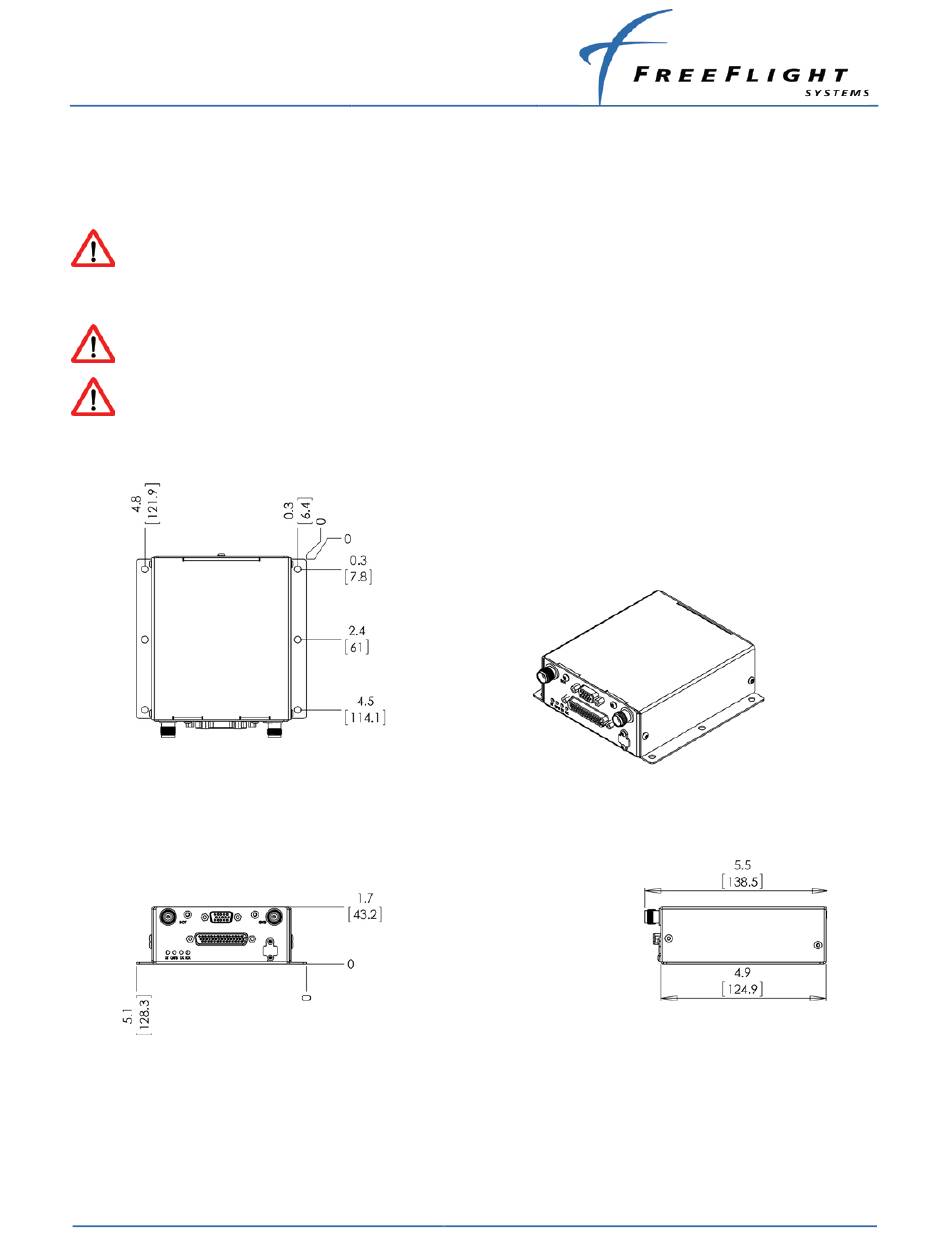

Figure 6. FDL-978 Series Mounting Dimensions
