ADS-B FDL-978 Series and
Lite Series Installation Manual
Document No. 87343 Rev F

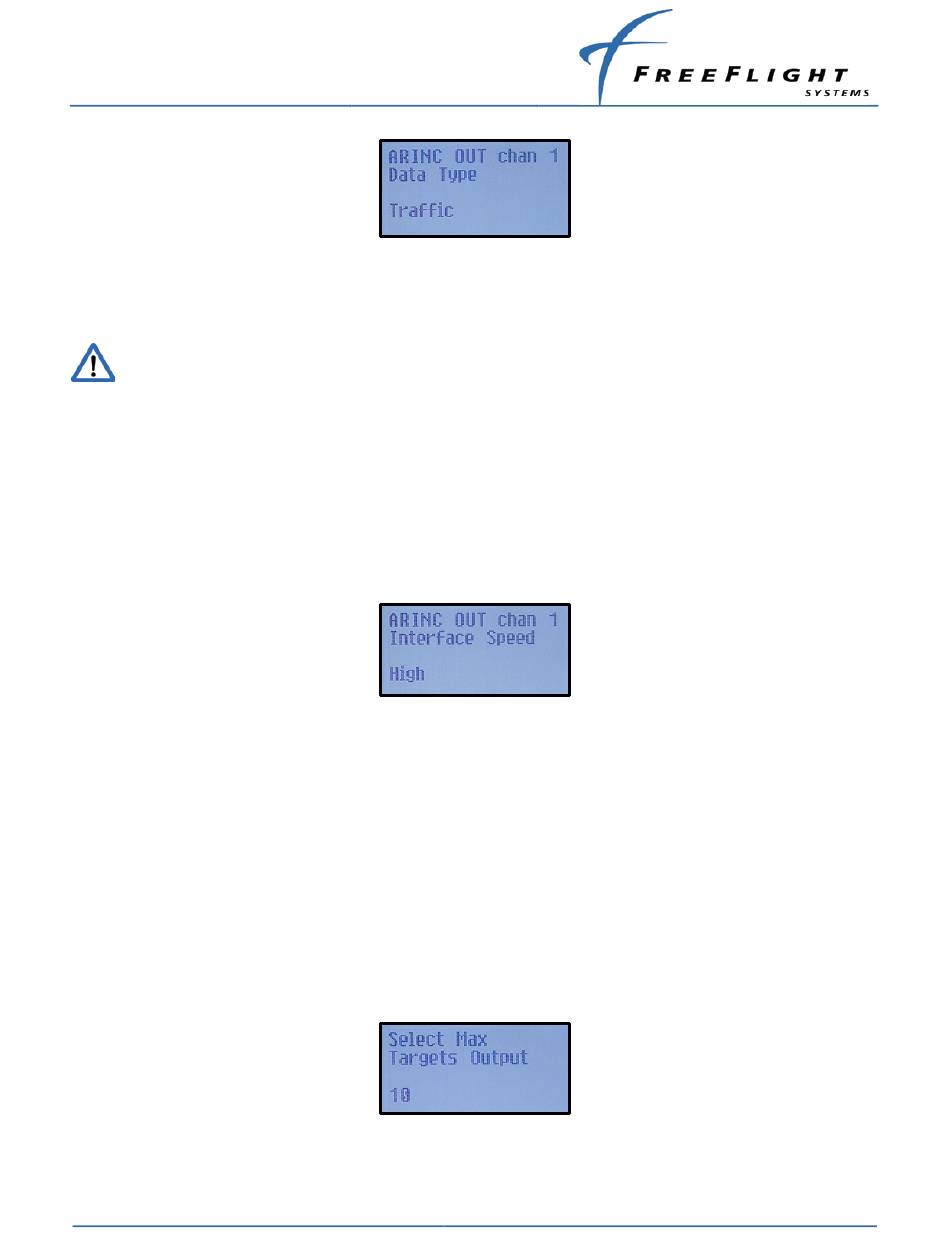

Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct ARINC output type. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.
If "Not Used" is selected then the ARINC output line speed configuration mode is
not displayed and the next configuration mode item is displayed.
3.6.2.14

ARINC OUT Chan 1 Interface Speed

The following options are offered for selecting the ARINC output interface speed:
1. Low
2. High
The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct ARINC output interface speed. Once selected, press the ENT button to
confirm your selection and move to the next configuration item in the setup mode.
3.6.2.15

Select Max Targets Output

This option controls the maximum number of targets which will be sent out the serial or ARCINC
429 channels when traffic output has been configured. There are 24 total options offered for
selecting Max Targets. These include:
1. Integers 8 through 30
2. Max
The display screen is as shown below with one of the options from the list above.
Rotate the CODE knob either clockwise or counterclockwise to display the options above and
select the correct number of targets. Once selected, press the ENT button to confirm your
selection and move to the next configuration item in the setup mode.
3-50 FFS Copyright © 2015 All rights reserved.
