Getting started

1 Getting started
1.1

Package contents

The USB to PMBus bridge package includes the following items:
● Packaged hardware board (mechanical size: 79 mm x 39 mm x 20 mm) with a USB
connector
● User friendly graphical user interface (GUI) to:
– identify the connected PMBus slaves (up to four)
– configure, control, and monitor the connected slaves
– write/read different PMBus commands
– poll the alert response
1.2

Hardware setup

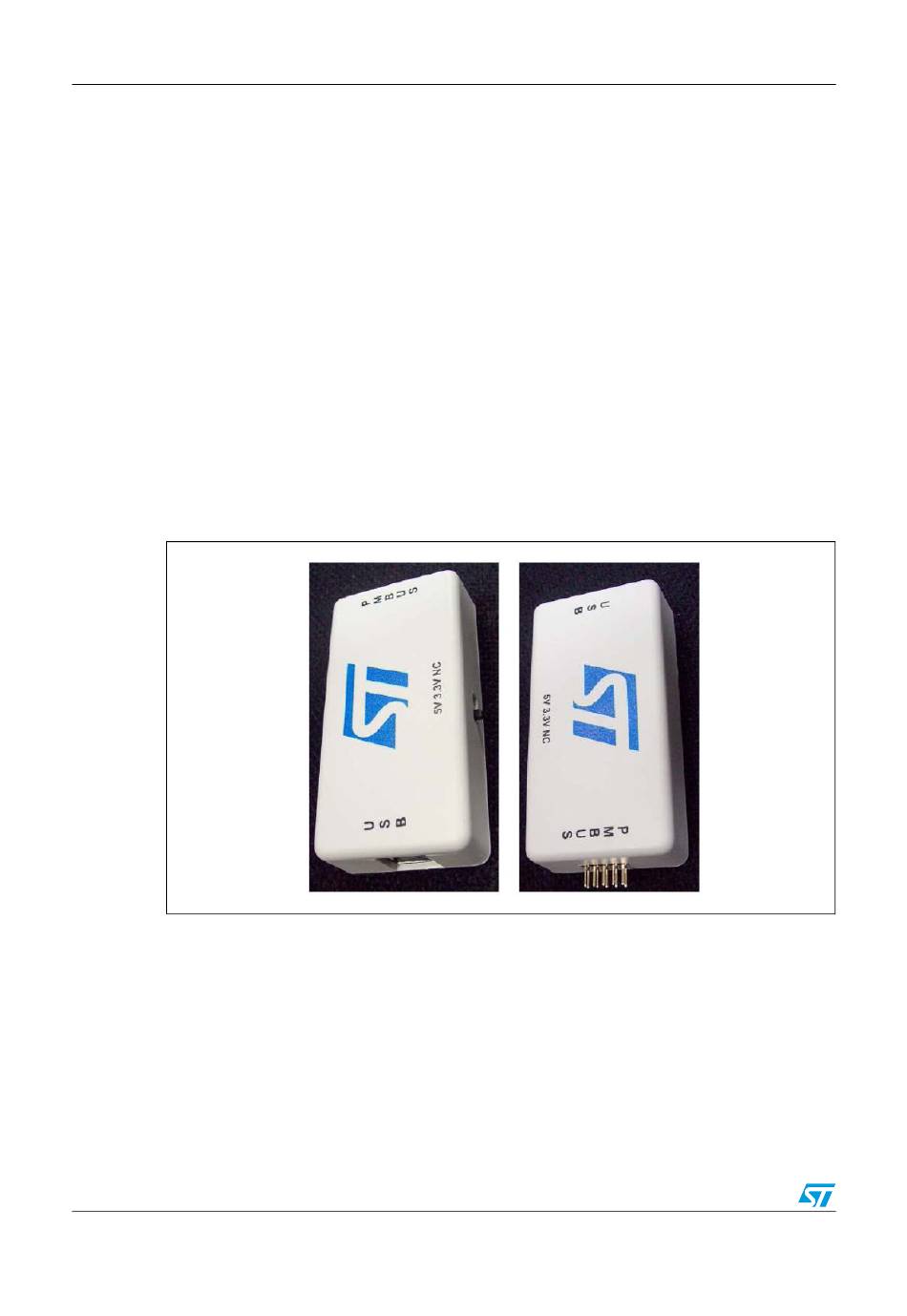

Figure 2 shows an image of the demonstration board.
Figure 2.
6/31
www.BDTIC.com/ST
Packaged board image, STEVAL-ISQ006V1
