3.5
Device information window
The device information window can be opened by either clicking on the device information
window icon or by following Operation-> Device Information Window.
This window consists of three sections:
1.
ST data
2.
MFR data
3.
PMBus revision
The MFR data section is also manufacturer specific. For details, please refer to the relevant
datasheets for PMBus products (e.g. Point-of-load (POL) converters) which act as PMBus
slaves.
The PMBus section shows the PMBus spec revision supported by the slave.
3.6
Device status window
The device status window can be opened by either clicking on the device status window icon
or by following Operation-> Device Status Window.
This window shows the status information retrieved from the PMBus slave. The status Byte
shows the most critical fault conditions. The red colored box indicates that a fault has
occurred.

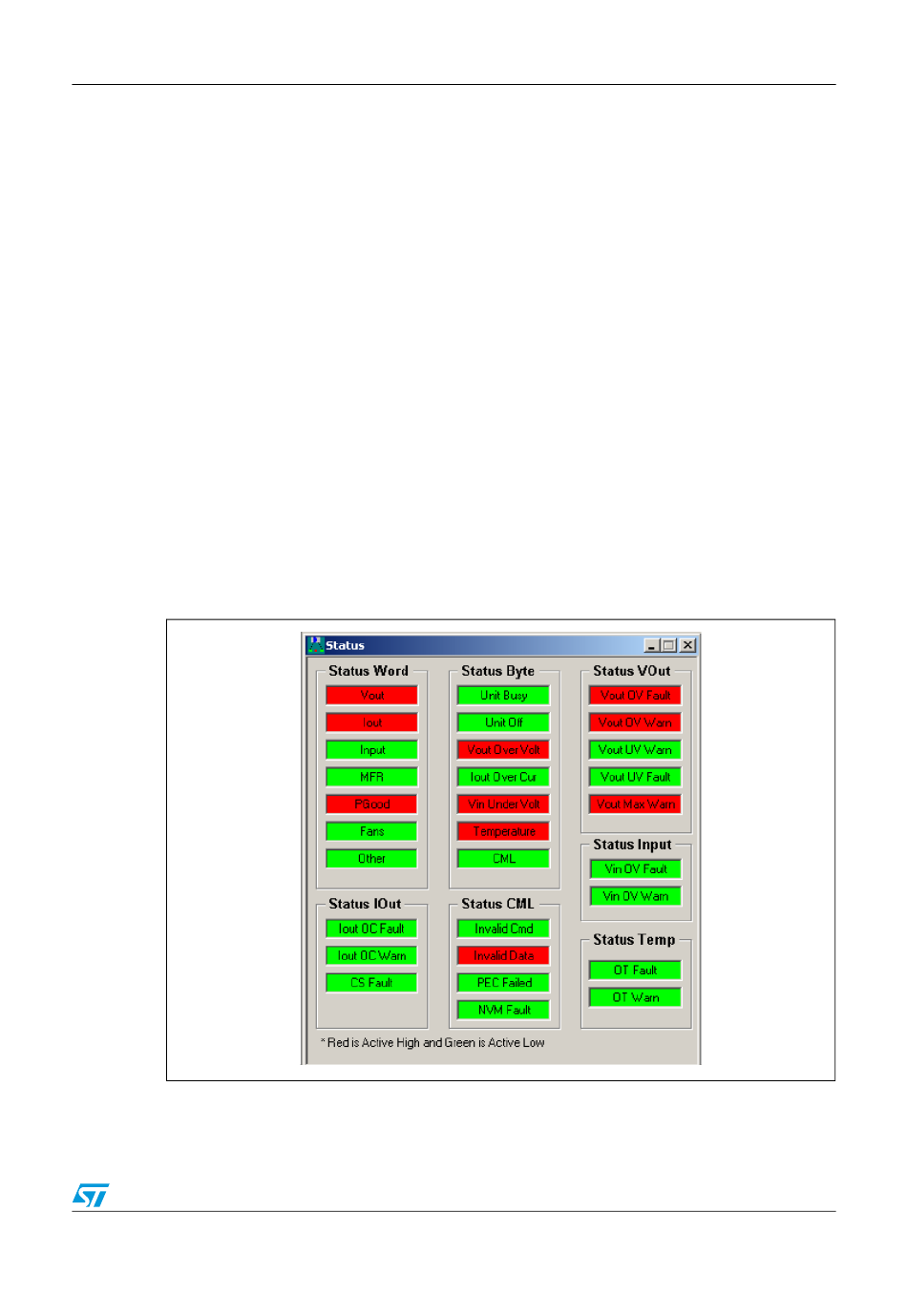

Figure 25. Device status window
