Getting started
1.2.2

LED status indication

This demonstration board has 2 LEDs. Their operations are described in
Table 3.
LED
D2
D3
Note: The connector (J3), switch (SW1), and LEDs (D2 and D3) are visible only when the casing is
removed. For normal operation the user need not worry about these. These are needed only
when the board is used for debugging purpose.
1.3

Software setup

This section explains how to install and set up the PC GUI for PMBus communication.
1.3.1

PC GUI installation

To install the PC GUI software, follow the steps as mentioned below:
Step 1:
As soon as the user clicks the PC GUI setup icon, the following window appears. Please
click on the "Next" button.

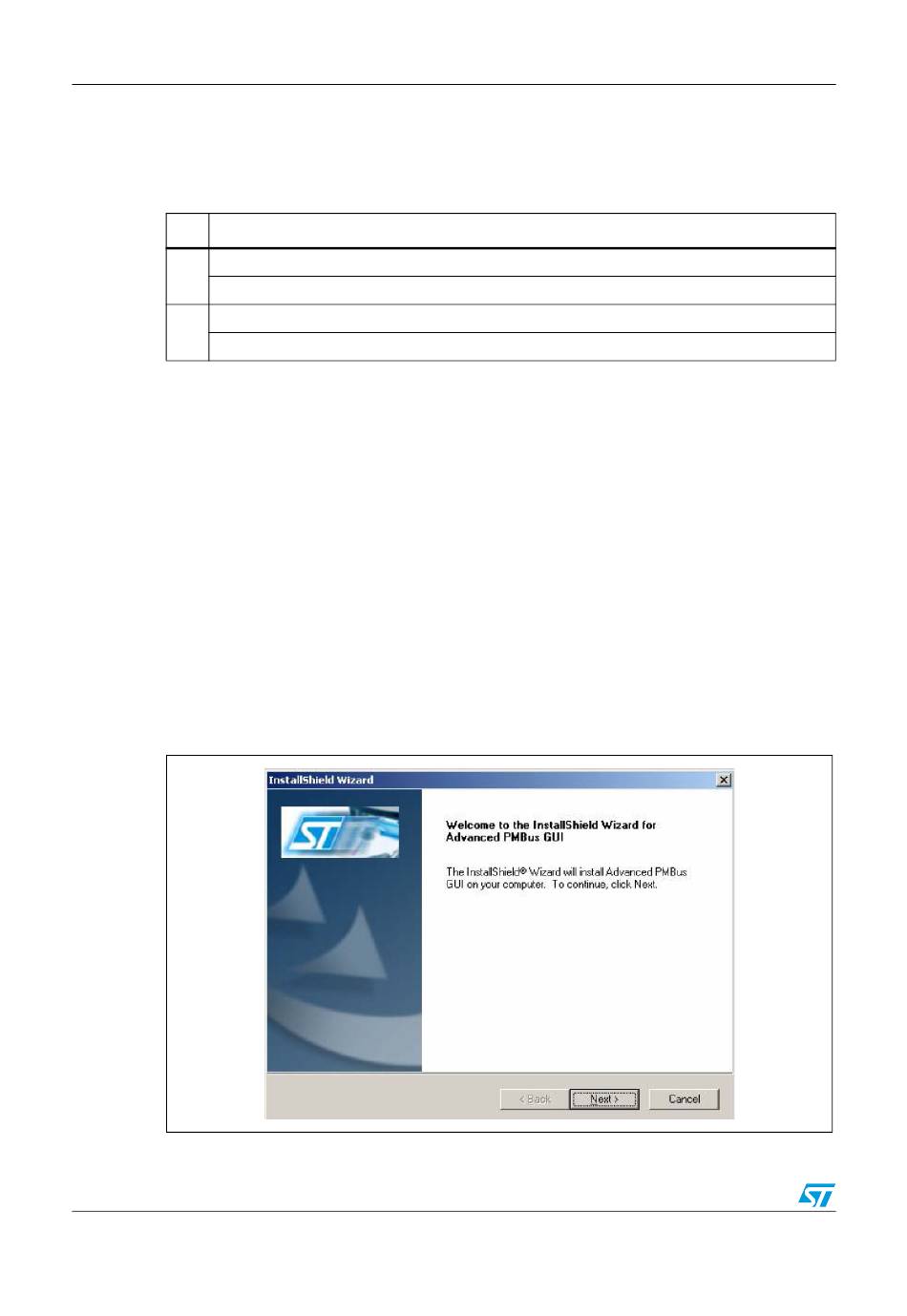

Figure 3.
8/31
www.BDTIC.com/ST
LED indication
ON: PMBus communication is ongoing.
OFF: no PMBus communication.
ON: board is powered and MCU is running
PMBus GUI installation step 1 – welcome window
Doc ID 15846 Rev 1
Description
OFF: no power to board
UM0718
Table 3.
