Getting started

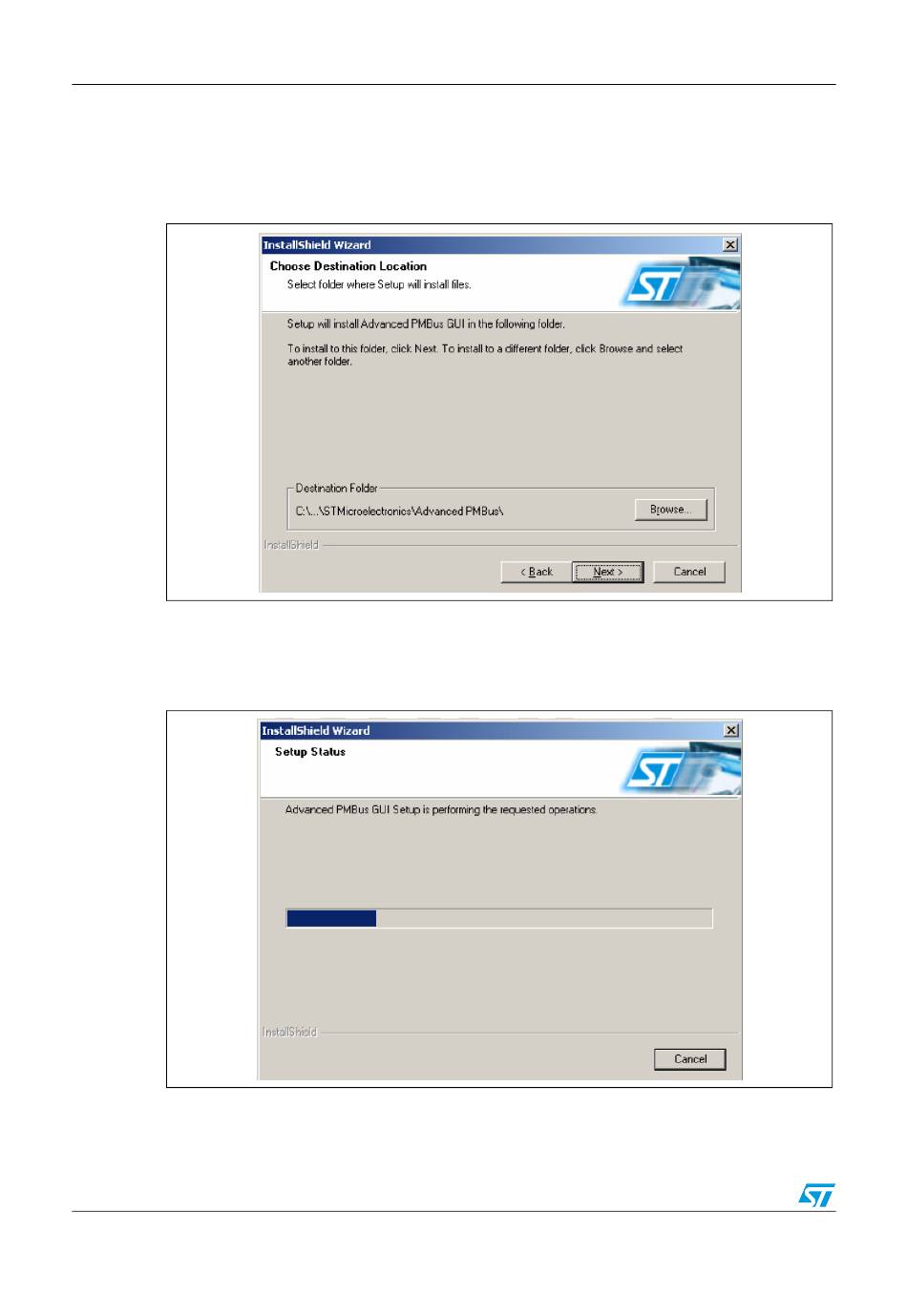

Step 4:

Please select the folder in which to install the software. By default it installs the software in

the following path: C:\Program Files\STMicroelectronics\.

Figure 6.

Step 5:

After selecting the folder and clicking the "Next" button, the software starts installing.

Figure 7.

10/31

www.BDTIC.com/ST

PMBus GUI installation step 4 - installation path window

PMBus GUI installation step 5 - setup status window

Doc ID 15846 Rev 1

UM0718
