Advanced PMBus GUI description
the faults are cleared and the GUI updates the values of the flags by reading the status. If
there is still a fault present, shown in the GUI, the user must resolve the problem.

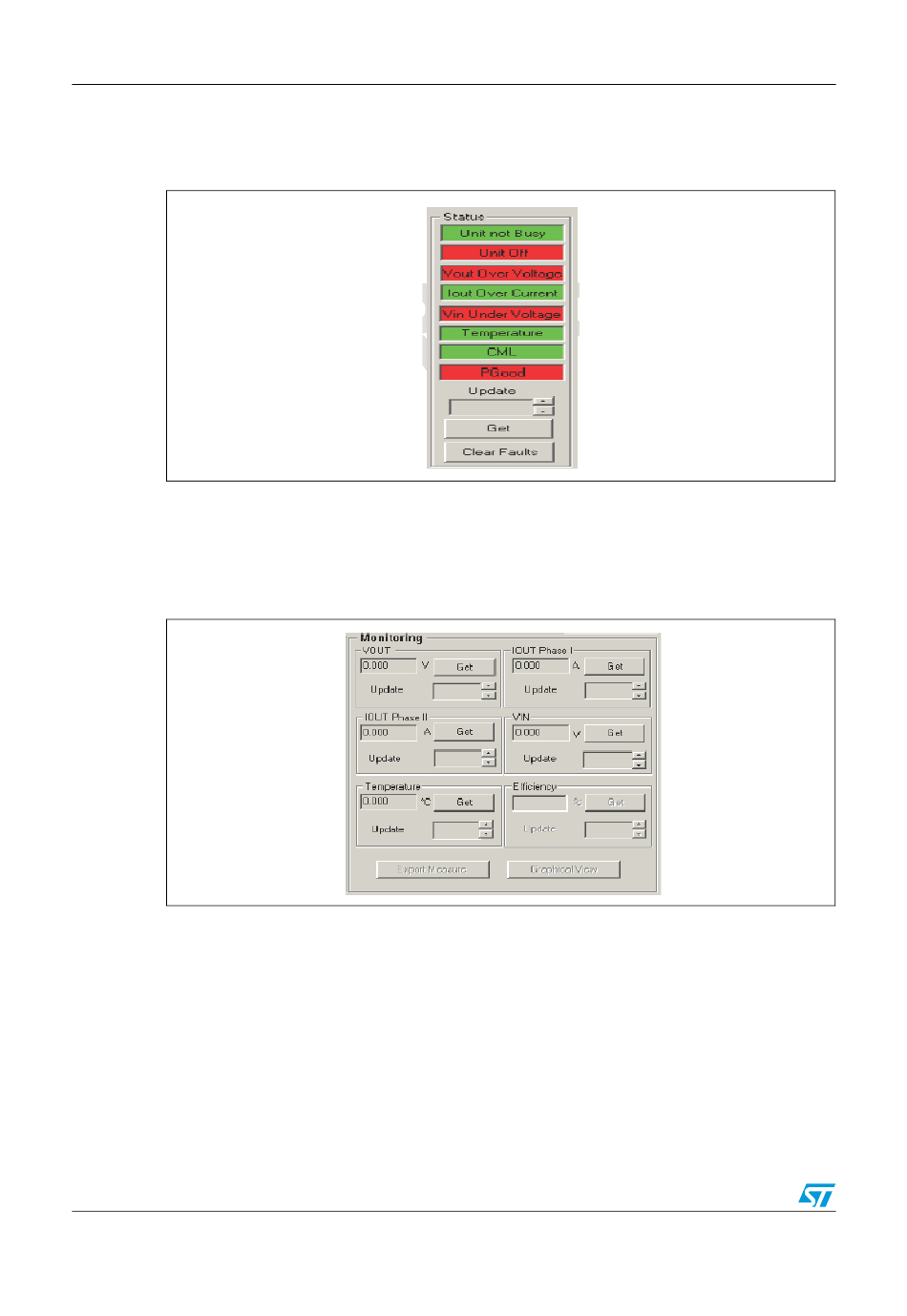

Figure 20. Status section
3.1.4
Monitoring section
In this section the current and voltage related parameters are read at the time of slave
selection and can be periodically updated by changing the update interval value.
Figure 21. Monitoring section
20/31
www.BDTIC.com/ST
Doc ID 15846 Rev 1
UM0718
