UM1887
User manual
STEVAL-IDB005V1 evaluation board quick start guide
Introduction
®
The
STEVAL-IDB005V1
is an evaluation board based on BlueNRG-MS, a low power Bluetooth
Smart IC compliant with the
®
Bluetooth
specification, and supports both master and slave roles.
The STEVAL-IDB005V1 features an on-board
STM32L151RBT6
low power microcontroller. It can be used to explore the
®
BlueNRG-MS features and as a development platform for Bluetooth
Smart applications running on the STM32L151RBT6
microcontroller and interfacing with the BlueNRG-MS network coprocessor.
®

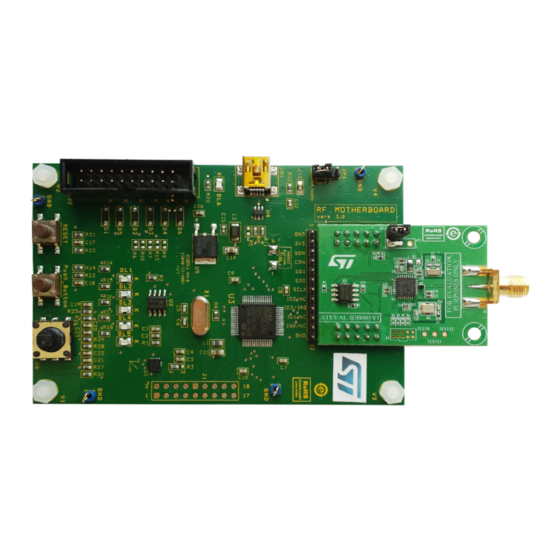

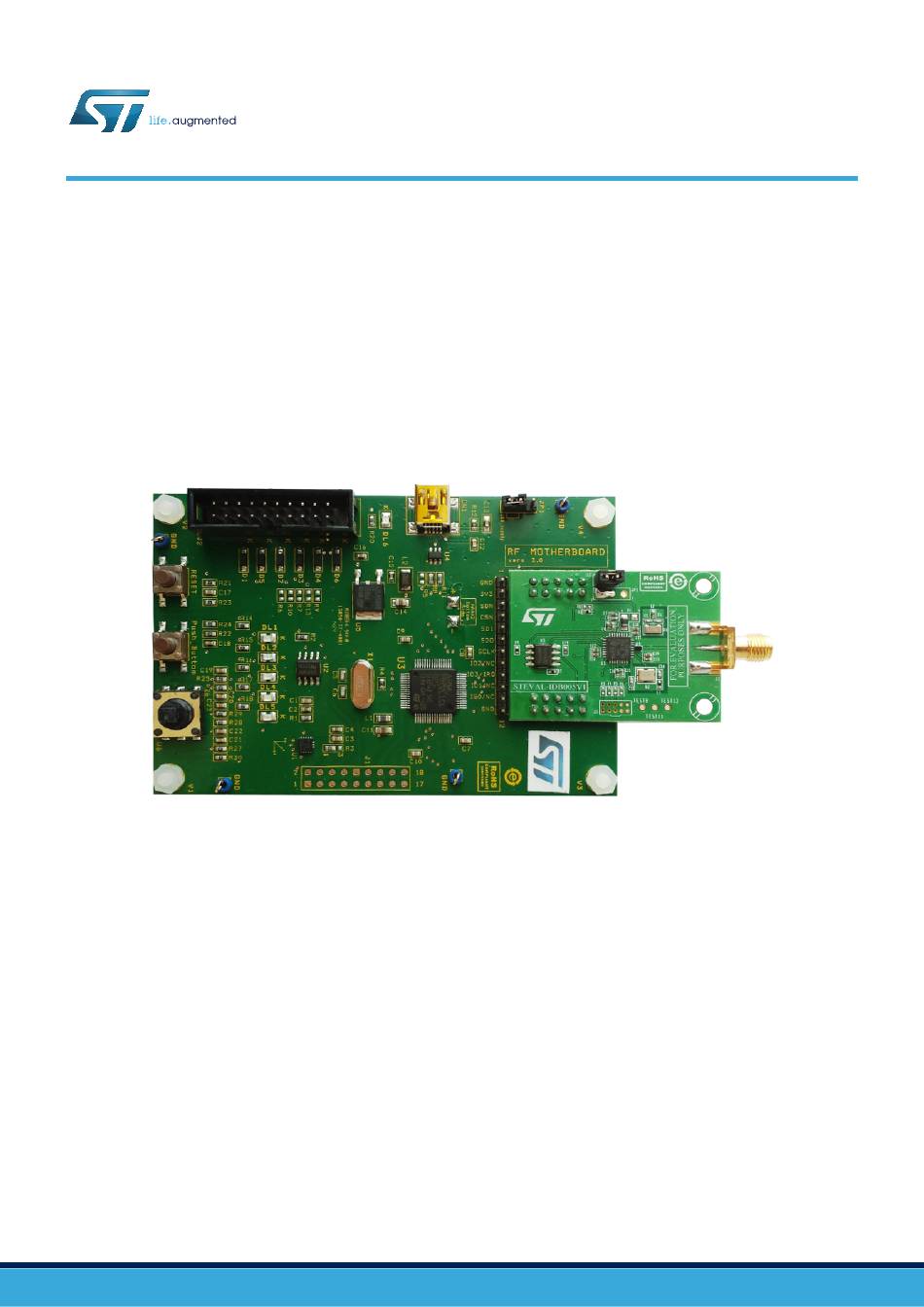

Figure 1.
STEVAL-IDB005V1 Bluetooth
low energy evaluation board
UM1887 - Rev 3 - October 2018
www.st.com
For further information contact your local STMicroelectronics sales office.
