Advanced PMBus GUI description

3.3

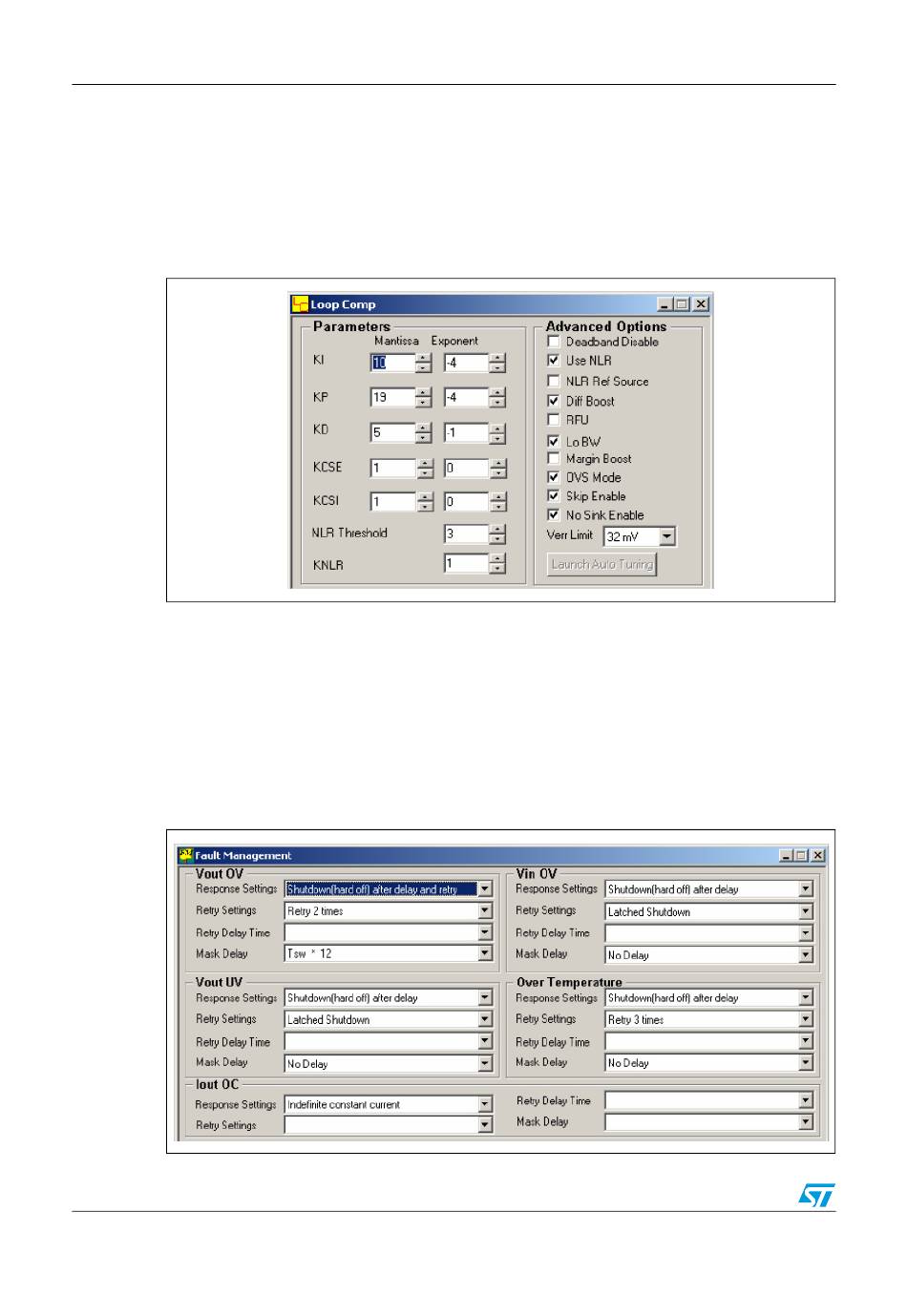

Loop comp. window

The loop comp. window can be opened by either clicking on the loop comp. icon or by

following Operation-> Loop Comp. Window.

At the time of opening the window all the parameters are read from the device and they can

then be modified by increasing/decreasing or by checking/un-checking the boxes.

3.4

The fault management window can be opened by either clicking on the fault management

window icon or by following Operation->Fault Management Window.

As soon as the fault management window is opened, the parameters are read from the

PMBus slave and updated in the corresponding fields. These parameters can then be

configured by the user.
