SCM180 Freescale i.MX8M ARM-based System-on-Module

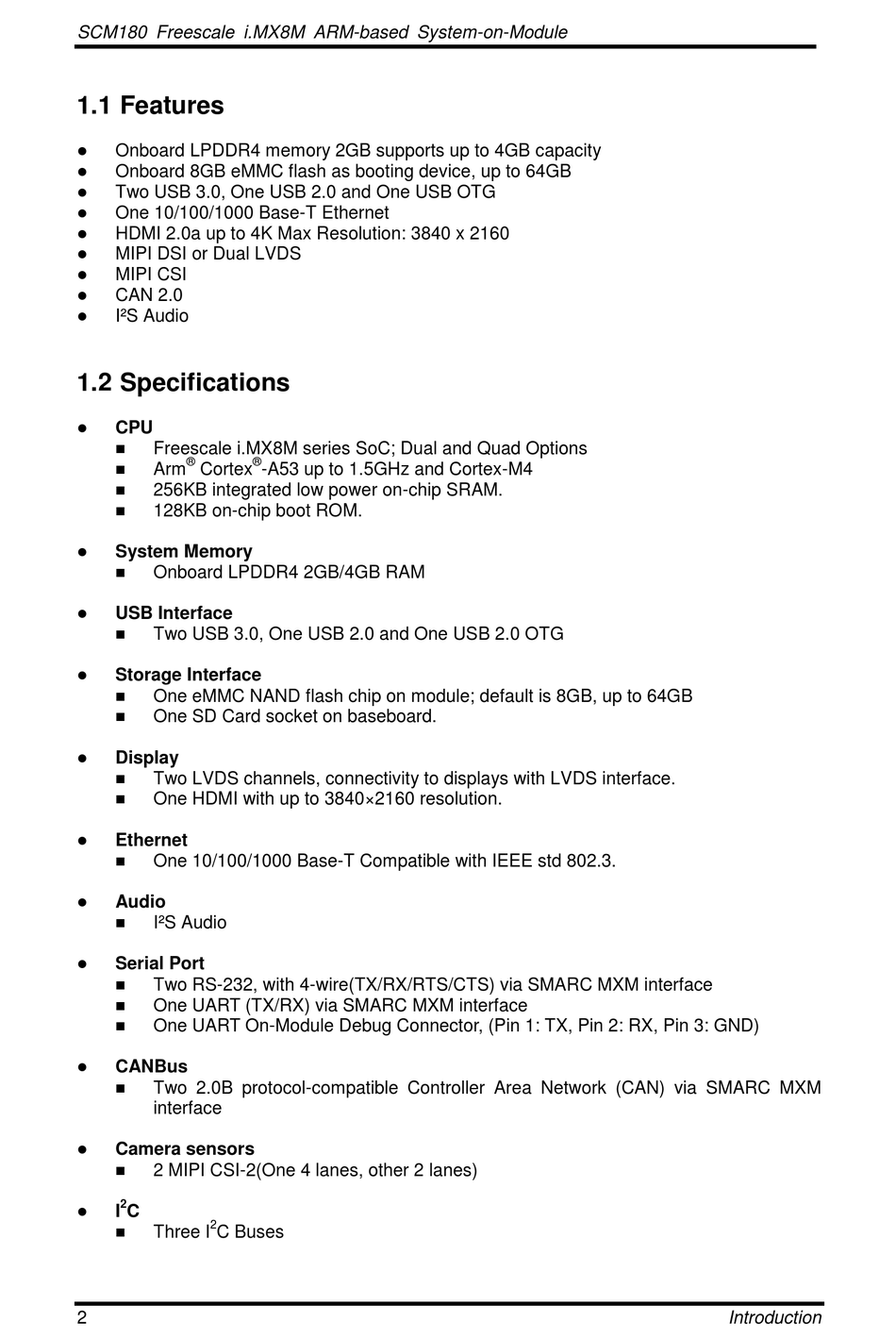

1.1 Features
 Onboard LPDDR4 memory 2GB supports up to 4GB capacity
 Onboard 8GB eMMC flash as booting device, up to 64GB
 Two USB 3.0, One USB 2.0 and One USB OTG
 One 10/100/1000 Base-T Ethernet
 HDMI 2.0a up to 4K Max Resolution: 3840 x 2160
 MIPI DSI or Dual LVDS
 MIPI CSI
 CAN 2.0
 I²S Audio

1.2 Specifications

 CPU
 Freescale i.MX8M series SoC; Dual and Quad Options
®
 Arm Cortex

256KB integrated low power on-chip SRAM.
 128KB on-chip boot ROM.
 System Memory
 Onboard LPDDR4 2GB/4GB RAM
 USB Interface

Two USB 3.0, One USB 2.0 and One USB 2.0 OTG
 Storage Interface
 One eMMC NAND flash chip on module; default is 8GB, up to 64GB
 One SD Card socket on baseboard.
 Display
 Two LVDS channels, connectivity to displays with LVDS interface.
 One HDMI with up to 3840×2160 resolution.
 Ethernet
 One 10/100/1000 Base-T Compatible with IEEE std 802.3.
 Audio
 I²S Audio
 Serial Port
 Two RS-232, with 4-wire(TX/RX/RTS/CTS) via SMARC MXM interface
 One UART (TX/RX) via SMARC MXM interface

One UART On-Module Debug Connector, (Pin 1: TX, Pin 2: RX, Pin 3: GND)
 CANBus
 Two 2.0B protocol-compatible Controller Area Network (CAN) via SMARC MXM
interface
 Camera sensors

2 MIPI CSI-2(One 4 lanes, other 2 lanes)
2
 I C
2
 Three I C Buses
2
®
-A53 up to 1.5GHz and Cortex-M4
