SCM180 Freescale i.MX8M ARM-based System-on-Module

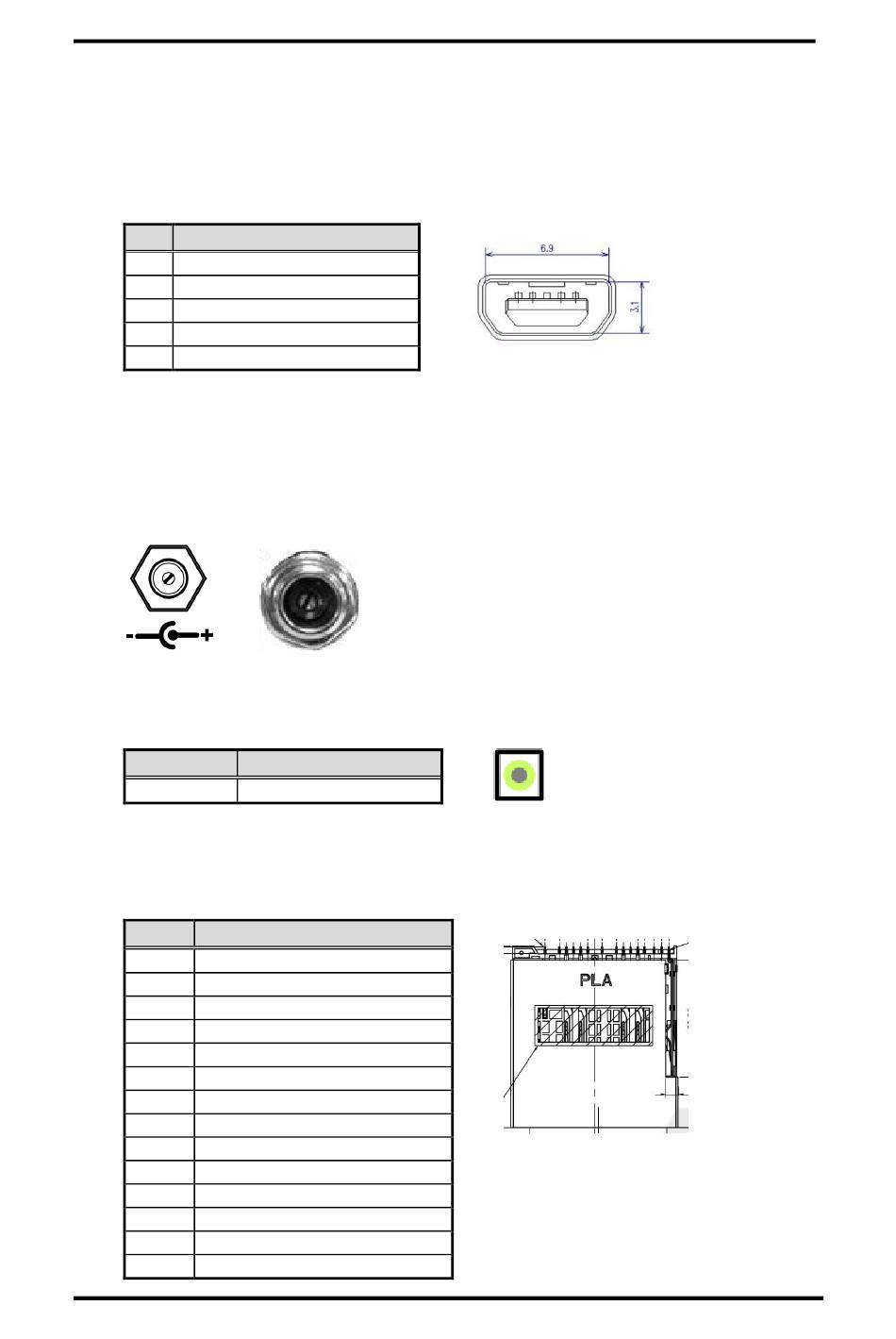

3.5.15

Mini USB OTG Port Host/Device Connector (CN15)

USB On-The-Go, often abbreviated USB OTG, is a specification that allows USB
devices such as digital audio players or mobile phones to act as a host, allowing other
USB devices like a USB flash drive, mouse, or keyboard to be attached to them. Unlike
conventional USB systems, USB OTG systems can drop the hosting role and act as
normal USB devices when attached to another host.
Pin USB Port Host/Device
1 USB_OTG_VBUS (+5V level)
2 USB_OTG_DN
3 USB_OTG_DP
4 USB_OTG_ID
5 GND
3.5.16

DC Jack Power Connector (CN17)

This is a DC power jack with lock. Firmly insert at least 40W adapter into this connector.
Loose connection may cause system instability and make sure all components/devices
are properly installed before connecting the power jack.
3.5.17

Audio Headphone Jack (J1)

The board comes with one audio Line Out jack.
Pin Color
Green
3.5.18

SD Card Connector (SCN1)

This board has a SD Card Socket.
Pin Signal
1 DATA3
2 CMD
3 GND
4 VDD
5 CLK
6 GND
7 DATA0
8 DATA1
9 DATA2
10 WP
11 CDN
12 COMM
13 SHLD1
14 SHLD2
24
Signal
Headphone
Q7B120 Baseboard
