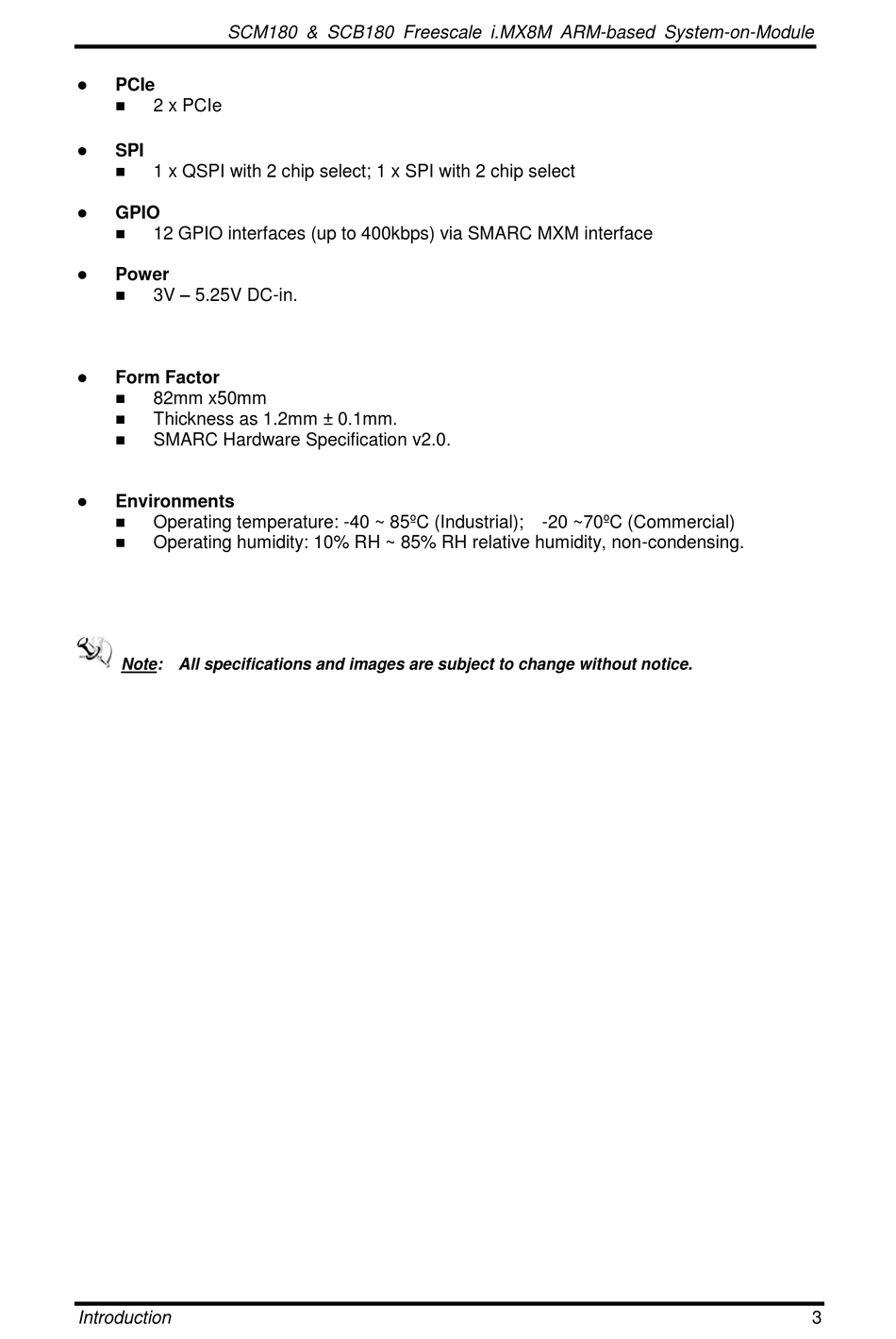

SCM180 & SCB180 Freescale i.MX8M ARM-based System-on-Module
 PCIe
 2 x PCIe
 SPI
 1 x QSPI with 2 chip select; 1 x SPI with 2 chip select
 GPIO
 12 GPIO interfaces (up to 400kbps) via SMARC MXM interface
 Power
3V – 5.25V DC-in.


Form Factor
 82mm x50mm
 Thickness as 1.2mm ± 0.1mm.
 SMARC Hardware Specification v2.0.
 Environments

Operating temperature: -40 ~ 85ºC (Industrial); -20 ~70ºC (Commercial)
 Operating humidity: 10% RH ~ 85% RH relative humidity, non-condensing.
Note: All specifications and images are subject to change without notice.
Introduction 3
