SCM180 & SCB180 Freescale i.MX8M ARM-based System-on-Module
3.5.1

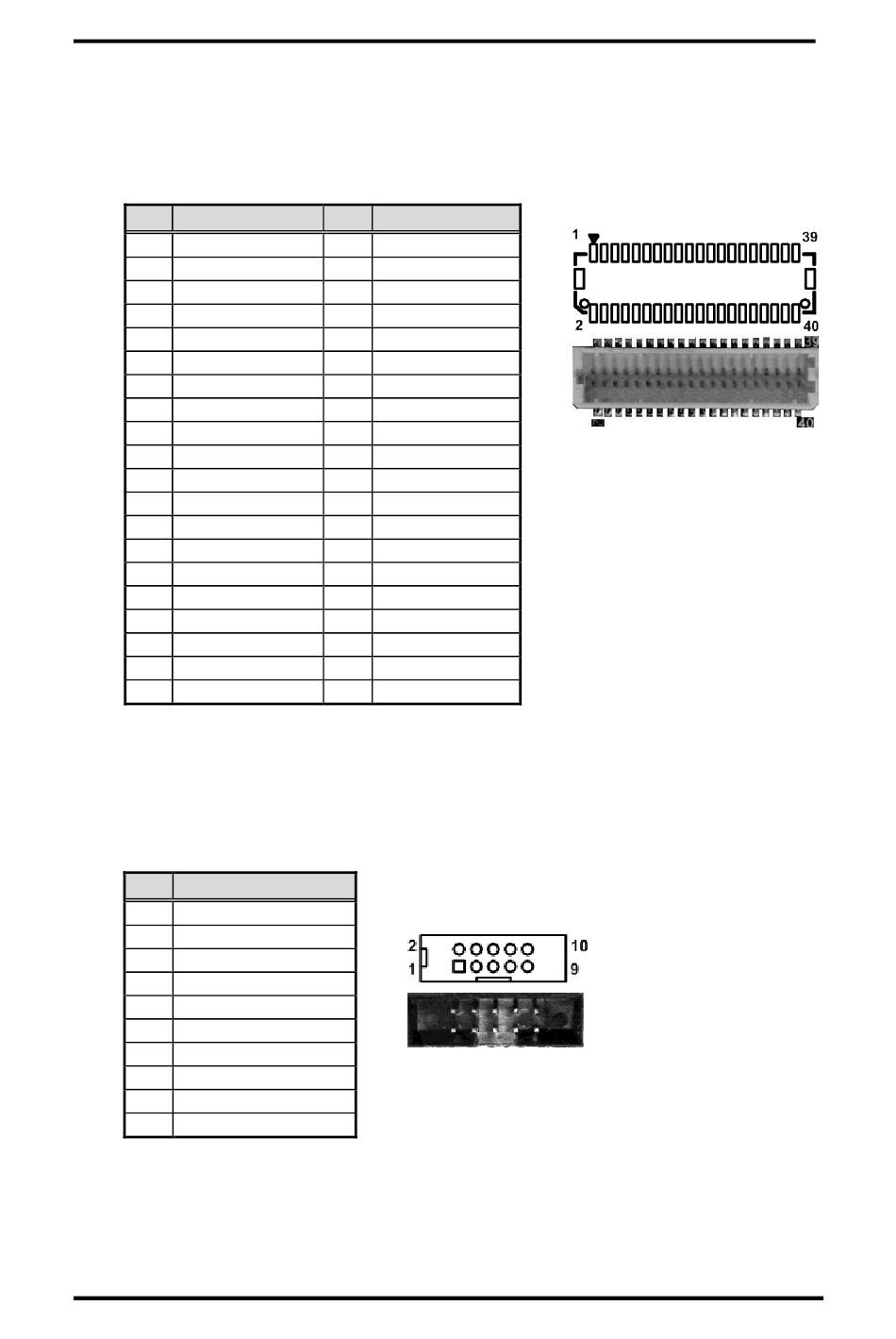

LVDS Connector (CN1)

This board has a 40-pin connector for LVDS LCD interface. It is strongly recommended
to use the matching JST SHDR-40VS-B 40-pin connector for LVDS interface. Pin 1~6
VCCM can be set to +3.3V, +5V or +12V level by setting JP2 (see section 2.3.2).
Pin Signal
1 LCMVDD
3 LCMVDD
5 LCMVDD
7 I2C2_SDA
9 GND
11 INC_LVDS1_3_N
13 INC_LVDS1_3_P
15 GND
17 LVDS1_CLKN
19 LVDS1_CLKP
21 GND
23 LVDS0_0_N -
25 LVDS0_0_P
27 GND
29 LVDS0_1_N
31 LVDS0_1_P
33 GND
35 LVDS0_2_N
37 LVDS0_2_P
39 GND
3.5.2

CAN Interface Connectors (CN2)

These is a 2 x 5 pin 2.0mm pitch box header for CAN Bus interface.
Pin Signal
1 N.C.
2 N.C
3 CAN2_L
4 CAN1_L
5 CAN2_H
6 CAN1_H
7 N.C
8 N.C.
9 CAN2_GND
10 CAN1_GND
SCB180 Baseboard
Pin
Signal
2 LCMVDD
4 LCMVDD
6 LCMVDD
8 I2C2_SCL
10 GND
12 LVDS1_0_N
14 LVDS1_0_P
16 GND
18 LVDS1_1_N
20 LVDS1_1_P
22 GND
24 LVDS1_2_N
26 LVDS1_2_P
28 GND
30 INC_LVDS0_3_N
32 INC_LVDS0_3_P
34 GND
36 LVDS0_CLKN
38 LVDS0_CLKP
40 GND
CN2 (for CAN1 & CAN2)
15
