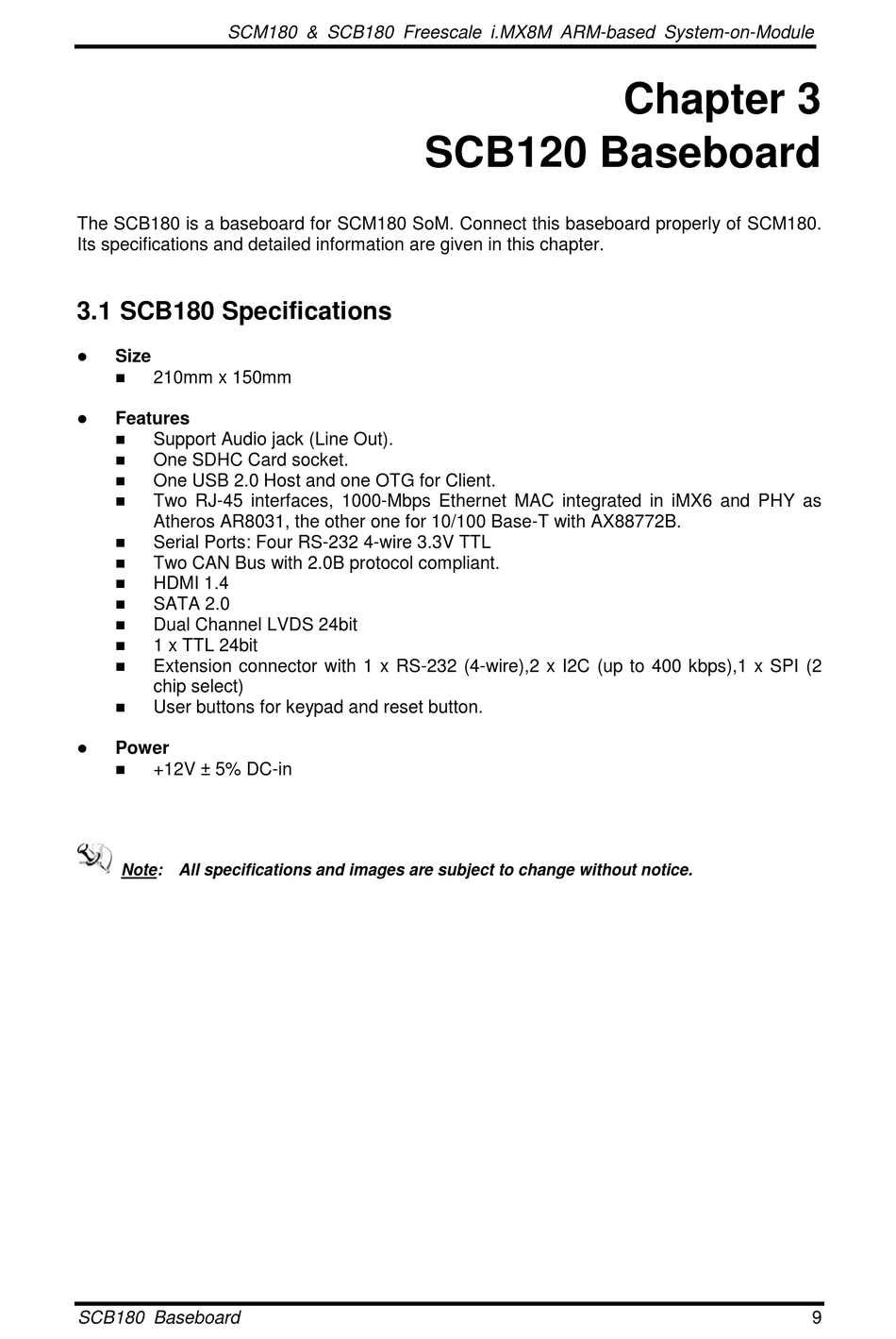

Chapter 3 Scb120 Baseboard; Scb180 Specifications - AXIOMTEK SCM180 Hardware User Manual

SCM180 & SCB180 Freescale i.MX8M ARM-based System-on-Module
The SCB180 is a baseboard for SCM180 SoM. Connect this baseboard properly of SCM180.
Its specifications and detailed information are given in this chapter.

3.1 SCB180 Specifications

 Size
 210mm x 150mm
 Features
 Support Audio jack (Line Out).
 One SDHC Card socket.

One USB 2.0 Host and one OTG for Client.
 Two RJ-45 interfaces, 1000-Mbps Ethernet MAC integrated in iMX6 and PHY as
Atheros AR8031, the other one for 10/100 Base-T with AX88772B.
 Serial Ports: Four RS-232 4-wire 3.3V TTL
 Two CAN Bus with 2.0B protocol compliant.
 HDMI 1.4
 SATA 2.0

Dual Channel LVDS 24bit
 1 x TTL 24bit
 Extension connector with 1 x RS-232 (4-wire),2 x I2C (up to 400 kbps),1 x SPI (2
chip select)
 User buttons for keypad and reset button.
 Power

+12V ± 5% DC-in
Note: All specifications and images are subject to change without notice.
